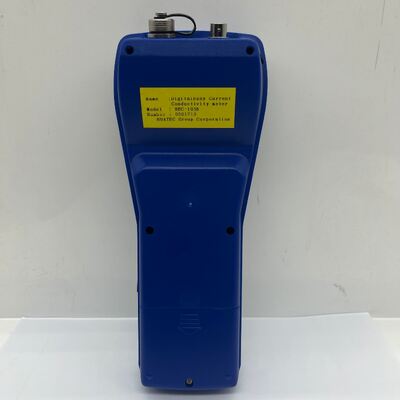

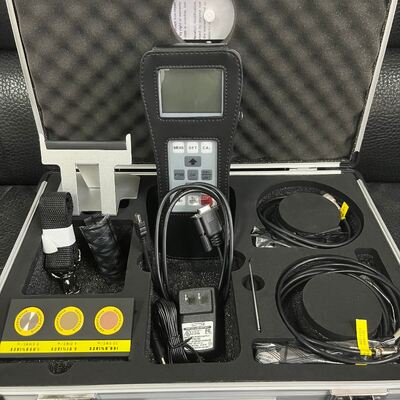

HEC-103B Digital Conductivity Meter Designed with Eddy Phase
1. APPLICATION FIELDS
l Conductivity and resistivity measurement of
l non-ferromagnetic material
l Determining extent of thermal treatment
l Checking thermal damage, material fatigue and crack
l Determining metal purity
l Monitoring of metal homogeneity
l Metal classification Monitoring of strength and hardness Detecting the density of powder metallurgy parts
2. CHARACTERISTICS
l Beautiful appearance, easy to carry about and grasp, simple and convenient to use.
l Big screen, big character; displaying measured result, working frequency, temperature, temperature coefficient etc. simultaneously.
l Two kinds of switchable frequencies for HEC-103B, 60KHz for aviation industry standard, 500KHz for detecting sheet metal.
l Special temperature coefficient setting and auto calibrating mode, convenient and reliable for user to operate.
l Up to 500μm lift-off compensation design, for maintaining the measuring accuracy when painted, coated or dusty on surface.
l The variety of temperature compensation mode design, combined with temperature coefficient, instruments can ensure the measurement accuracy under different testing temperature.
l With interchangeable probes, the user is able to change probes provided by our company without matching.
l Built-in date memory, can record 4000 sets of test date and important test parameters, you can connect the computer to generate a complete report.
l Two units (MS/m or %IACS) convenient choice, but also can directly switch resistivity in the measurement of interface.
l Two kinds of language selection: Japanese and English.
3. TECHNICAL PARAMETER
|
Model
Items
|
HEC-103B
|
HEC-103B1
|
|
Working Freq.
|
60KHz and 500KHz, sine wave
|
60KHz sine wave
|
|
Measurement range for conductivity
|
0.51 %IACS to 112 %IACS, or 0.3 MS/m to 65 MS/m or
resistivity 0.01538 Ω·mm²/m to 3.33333Ω·mm²/m
|
|
Resolution
|
0.1 %～0.001 %IACS
|
|
Measuring
precision
|
±1%(Temp.0℃~50℃),±0.5%(Temp. 20℃)
|
|
Lift-off compensation
|
0.5mm of φ14 probe; 0.2mm of φ8 probe;
|
|
Temp. Measuring range
|
0℃～+80℃(Temp. resolution0.1℃,Temp. Measuring precision0.5℃)
|
|
Auto. Compensation
|
Testing result of conductivity adjusted to the value at temp. 20℃ automatically
|
|
Working environment
|
Temp. 0℃～+50℃,Related humidity 0～85%(Non-condensing)
|
|

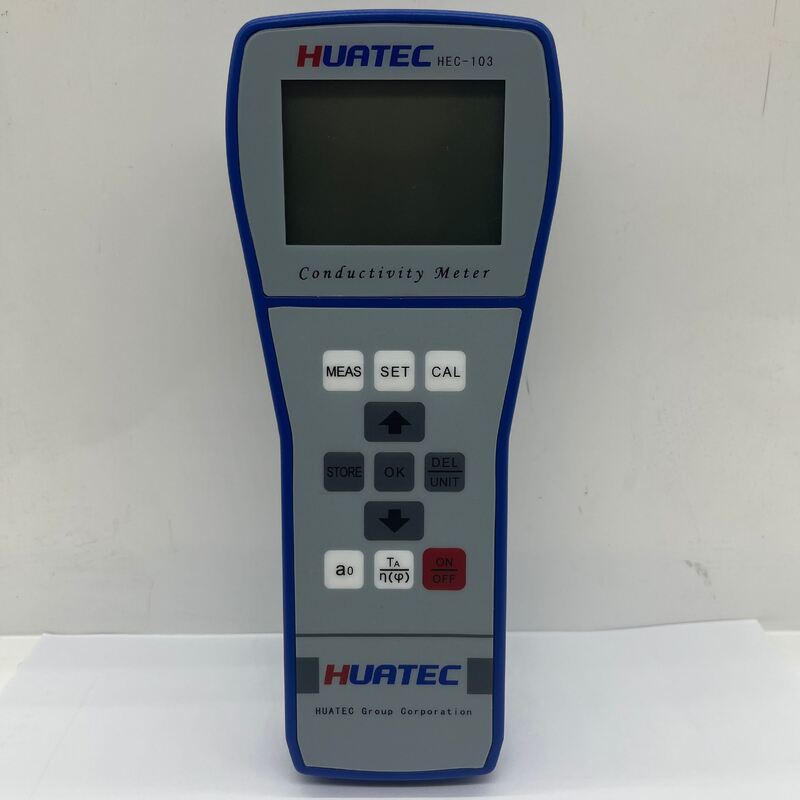

Display
|
Large screen LCD, with back-light designed, can display multiple items of important parameter simultaneously
|
|
Power supply
|
Provided lithium ion battery of 3.7V,2200mA/h, continuous working about 12hours
|
|

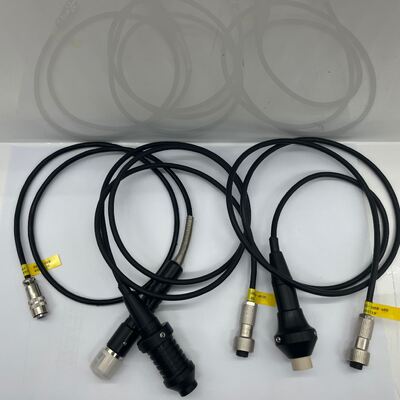

Probes
|
diameter 14 mm working frequency of 60 KHz and diameter 8mm working frequency of 500 KHz of a probe; Probe can be Self replacement.
|
diameter of 14 mm working frequency of 60 KHz of a probe. Probe can be Self replacement.
|
|
Temp. Probe
|
Hand-hold surface temperature sensor
|
|
Reading memory
|
Save 4000 sets of measuring date
|
|
PC Communication
|
RS 232 interface, Baud rate: 2400bps; Date rate:8
|
|
Host weight
|
0.5KG(Including battery)
|
|
Host size
|
220 mm×95 mm×55 mm
|
|
Shell
|
Plastic shell
|
