Product Details:
|
| Product Name: | NDT Crack Test Block | Model: | B5 |
|---|---|---|---|
| Depth: | 100µm | Width (target Value): | 0.5µm |
| High Light: | dye penetrant inspection ndt calibration blocks,crack test ndt calibration blocks,type b5 ndt calibration blocks |
||

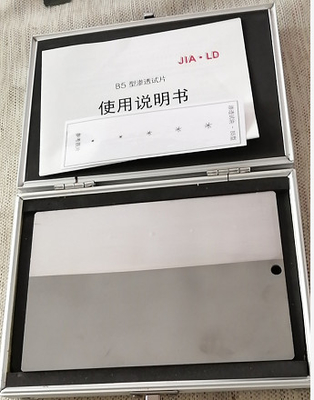

Dye penetrant inspection NDT crack test block type B5
|
Specification |
All linear dimensions to the requirements of AS2083/2005, BS2704/1978/1983, where applicable. Heat treatment to the requirements of GB/T6394/2002. where practicable tolerances to (+/-0.1mm) unless otherwise stated. |
| Material: | Test Report according to ISO 10474-3.1.B,JIS G 0415-3.1.B |
| Depth | 100µm |
| Width (target value) | 0.5µm |
|
Treated to 920 degrees C for 30 minutes, water quenched, 650 degrees C for 3 hours, air cooled.
|
|
| Traceability |
Calibration standards used are traceable to international standards |
