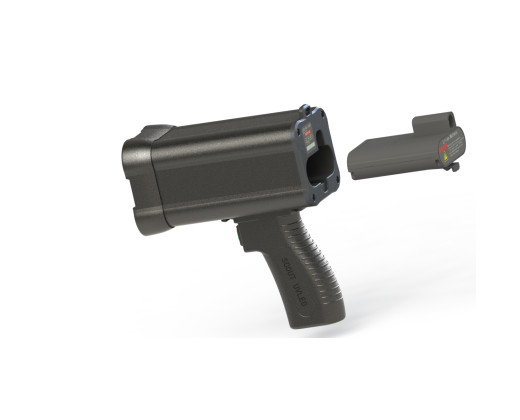

HUATEC Non Destructive Testing Equipment DG-8K Handheld UV Light

Large Image : HUATEC Non Destructive Testing Equipment DG-8K Handheld UV Light

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO, CE, GOST
Model Number:	DG-8K

Contact Now

HUATEC Non Destructive Testing Equipment DG-8K Handheld UV Light

Description

FLUX Error:	0-40℃ ±10％	Light Distribution Characteristics:	Center Light Distribution
Power Supply:	AC100-240V 50/60Hz	Power:	UV LED-9VA Light-3VA
Wavelength:	Room Temperature 25℃ 365nm±3nm（UVA）	Battery Capacity:	2200mA/H 12.6V
Highlight:	handheld non destructive testing equipment , uv light non destructive testing equipment , handheld uv light ndt equipment

DG-8K handheld UV light

Features

*Energy saving is only 9VA of power consumption.

*The average lifespan of a light source of 30000H.

*Original imported light source UVLED.

*The UV-B content is 0.

*3-4 hours of battery life.

*Quick battery replacement

*Weight containing less than 500g of batteries.

*There is no external wiring.

*Quartz and optical glass module, non PMMA material, excellent weather resistance.

*Continuous working with an external surface temperature rise of less than 5K (5 ℃).

*No preheating required, instantly reaching 100% power.

*Equipped with dual functions of UV and white light, with one hand switching. 3pcs UV lamps, 1pc white light lamp

UV irradiance intensity distribution map (380mm)

HUATEC Non Destructive Testing Equipment DG-8K Handheld UV Light 0

Project	Parameter / method
Form	Handheld
UV(Light)-FLUX 25 ℃ Room temperature ,Calibration at 380mm	UV -FLUX 10000uW/cm² Light-MAX1500LUX
Coverage area calibration at 380mm	Approximately 200mm in diameter
FLUX error	0-40℃ ±10％
Light distribution characteristics	Center light distribution
power supply	AC100-240V 50/60Hz
power	UV LED-9VA Light-3VA
wavelength	Room temperature 25℃ 365nm±3nm(UVA)

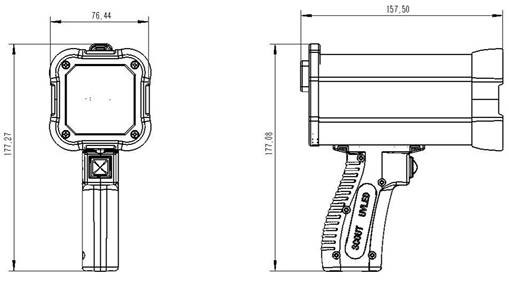

Dimensions	137mm(W)73mm(D)175mm(H)
weight	498g
battery capacity	2200mA/H 12.6V
Charging time	3-4H
Battery life (cumulative time)	UV LED 3-4H or Light 7H
