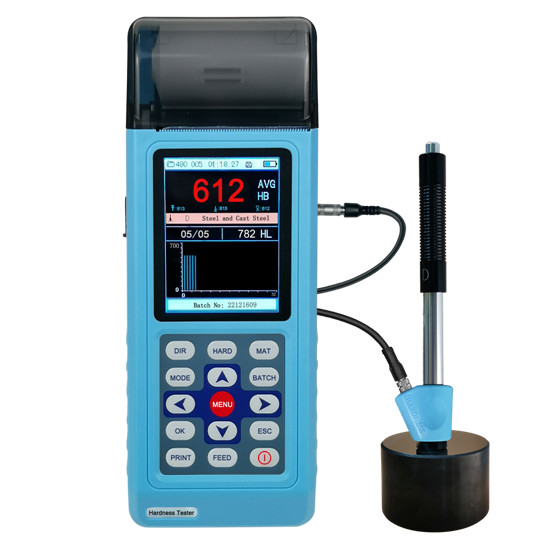

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional
Multiple Mode Display Portable Hardness Tester With Micro Printer Optional Multiple Mode Display Portable Hardness Tester With Micro Printer Optional

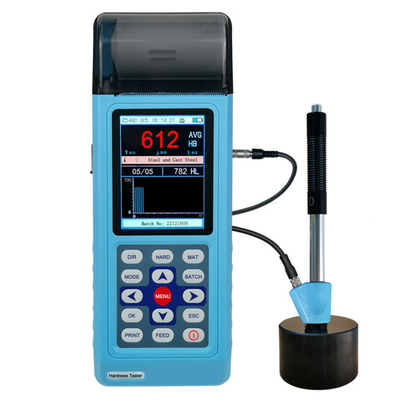

Large Image :  Multiple Mode Display Portable Hardness Tester With Micro Printer Optional

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO,CE,Gost
Model Number: RHL-140
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: in High quality carton
Delivery Time: 3-7 days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional

Description
Product Name: Portable Hardness Tester Model: RHL-140
Charging Power Supply: 5VDC,220VAC Charging Time: 2-3hour
Battery: 7.4V,Li(2000mAh)Battery Measuring Range: HLD(170~960)、HRA(59~85)...
High Light:

multiple mode display portable hardness tester

,

micro printer optional portable hardness tester

,

huatec portable hardness tester



Multiple mode display Portable Hardness Tester with Micro Printer optional



Functional features:

  • Multiple language switching between Simplified/Traditional Chinese, English, and German, with menu based operation.
  • Adopt a proprietary dual bin dustproof design to ensure that the main engine bin is not affected by dust;
  • Type-c USB and RS485 communication interfaces can easily connect PCs, industrial control computers, or PLCs;
  • The main interface displays two hardness scales.
  • There are three modes switching on the main interface (histogram mode, full hardness mode, and curve mode).
  • The production batch number setting function allows for self-numbering of measured workpieces, facilitating statistical recording.
  • Browse for any hardness scale conversion of status measurement data, which is convenient and fast.
  • It can be equipped with 7 different impact devices, which do not require recalibration during replacement and can automatically identify the type of impact device.
  • Support the measurement of multiple hardness systems and three strength values.
  • Built-in domestic and foreign hardness conversion tables to meet the different needs of customers.
  • It can store 510 files, with 46 to 215 groups of single measurement values, average values, measurement dates, impact directions, times, materials, hardness system, and other information for each file (32 to 1 impact times).
  • The upper and lower limits of hardness values can be set in advance, and automatic alarm will be given when the limit is exceeded, facilitating the needs of users for batch testing.
  • Indication software calibration function.
  • Built-in high-performance lithium battery and charging control circuit, with a battery capacity of 2000mA.
  • Computer software can be equipped to support data query, storage, statistics, histogram display, and other functions, and stored in Excel format

Main technical indicators:

  • Indication error and repeatability
Number Impact device type Standard Leeb hardness block hardness value Indication error Indication repeatability
1 D

760±30HLD

530±40HLD

±5 HLD

±8 HLD

5 HLD

8 HLD

2 DC

760±30HLDC

530±40HLDC

±5 HLDC

±8 HLDC

5 HLD

8 HLD

3 DL

878±30HLDL

736±40HLDL

±10 HLDL 10 HLDL
4 D+15

766±30HLD+15

544±40HLD+15

±10 HLD+12 10 HLD+12
5 G

590±40HLG

500±40HLG

±10 HLG 10 HLG
6 E

725±30HLE

508±40HLE

±10 HLE 10 HLE
7 C

822±30HLC

590±40HLC

±10 HLC 10 HLC

  • Hardness systems: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and Shore (HS)
  • measuring range HLD(170~960),HRA(59~85),HRB(13~100),HRC(18~68),HB(19~655),HV(80~976),HS(32~100)
  • Measuring direction 360 ° (vertically downward, obliquely downward, horizontally, obliquely upward, vertically upward)
  • Measuring materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper zinc alloy (brass), copper tin alloy (bronze), pure copper and forged steel
  • Display TFT,, 320 × 240 TFT LCD screen

Data storage 510 files, 46 to 215 groups (impact times 32 to 1)Communication interface standards USB2.0 (RS232,RS485)

  • Charging power supply 5VDC,220VAC
  • Charging time 2-3hour
  • Battery 7.4V,Li(2000mAh)Battery
  • Ambient temperature 0~40℃
  • Storage temperature -25~70℃
  • The continuous working time is about 20 hours, and the standby time is 80 hours;

Standard configuration:

  No. Item Quantity Remarks
Standard Configuration 1 Main unit 1
2 D type impact device 1 With cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6 Charger 1
7 Manual 1
8 Instrument package case 1
Optional Configuration 9 Cleaning brush (II) 1 For use with G type impact device
10 Other type of impact devices and support rings   Refer to Table 3 and Table 4 in the appendix.
11 DataPro software 1
12 Communication cable 1
13 Micro Printer 1
14 Print cable 1



Testing range:

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional 0

Other type of impact devices

Material Method Impact device
D/DC D+15 C G E DL

Steel and cast steel



HRC 20~68.5 19.3~67.9 20.0~69.5   22.4~70.7 20.6~68.2
HRB 38.4~99.6     47.7~99.9   37.0~99.9
HRA 59.1~85.8       61.7~88.0
HB 127~651 80~638 80~683 90~646 83~663 81~646
HV 83~976 80~937 80~996   84~1042 80~950
HS 32.2~99.5 33.3~99.3 31.8~102.1   35.8~102.6 30.6~96.8

Cold work

tool steel

HRC 20.4~67.1 19.8~68.2 20.7~68.2   22.6~70.2
HV 80~898 80~935 100~941   82~1009

Stainless steel



HRB 46.5~101.7
HB 85~655
HV 85~802

Grey cast iron



HRC
HB 93~334     92~326
HV
Nodular cast iron HRC
HB 131~387     127~364
HV
Cast aluminium alloys HB 19~164   23~210 32~168
HRB 23.8~84.6   22.7~85.0 23.8~85.5

BRASS(copper-zinc alloys)



HB 40~173
HRB 13.5~95.3
BRONZE(copper-aluminium/tin alloys) HB 60~290
Wrought copper alloys HB 45~315

















































Multiple mode display

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional 1

Bar graph display mode    Multiple hardness display modes  Impact curve display mode



Upper computer software

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional 2

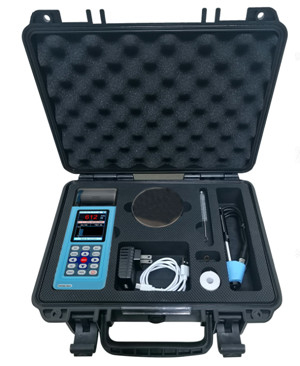

PACKING

Multiple Mode Display Portable Hardness Tester With Micro Printer Optional 3
