Product Details:
|
Probe Type: | Angle Probe | Specification: | HFD22X20-2M-45 |
---|---|---|---|
Transducer Element* Diameter: | 8x9 22X20mm | Frequency: | 2MHz 4MHz |
Highlight: | angle beam transducers ultrasonic probe,dual angle transducers ultrasonic probe |

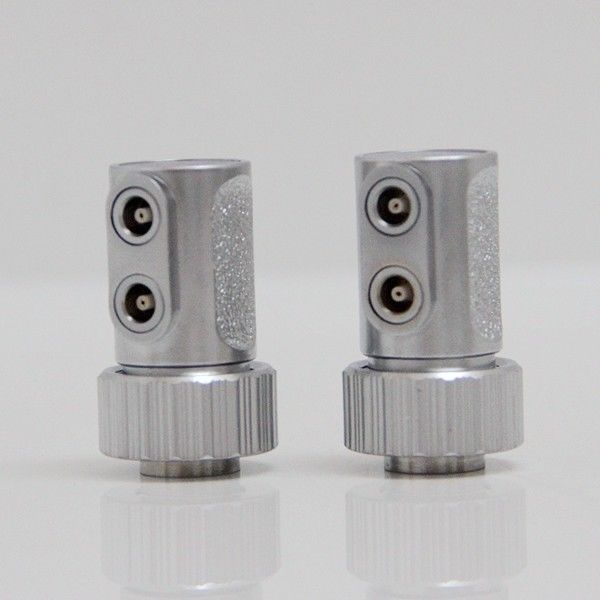

Ultrasonic Angle Beam Probe With 2MHz 4MHz 8x9 mm
We can provide customers with more than 500 kinds of ultrasonic flaw detection probes,angle probes,variable angle probes,four-crystal probes,immersion focusing probes and othe conventinal probes.
Character:
(1) Common welding inspection.
(2) Pipe casting, pressure wessels, storage tank.
(3) Turbine blades and pressure vessels.
(4) Wheel axle, forged piece and casting.
(5) Railway wheels and railway rail.
Funtion:
(1) Probes connector for national standard and American standard is mostly BNC (Q9), microdot(L5)connector (lateral direction).
(2) Probes connector for Europe standard is mostly LEMO-00(C5),LEMO-1(C9)connector(sidepiece or top direction).
Specification:
Probe type | Designation | Angle | Transducer element size [mm] | Frequency [MHz] |
angle probe
|
HFD 9x8-2M-35 | 35° | 8x9 | 2 MHz |
HFD 9x8-2M-45 | 45° | 8x9 | 2 MHz | |
HFD 9x8-2M-60 | 60° | 8x9 | 2 MHz | |
HFD 9x8-2M-70 | 70° | 8x9 | 2 MHz | |
HFD 9x8-2M-80 | 80° | 8x9 | 2 MHz | |
HFD 9x8-4M-35 | 35° | 8x9 | 4 MHz | |
HFD 9x8-4M-45 | 45° | 8x9 | 4 MHz | |
HFD 9x8-4M-60 | 60° | 8x9 | 4 MHz | |
HFD 9x8-4M-70 | 70° | 8x9 | 4 MHz | |
HFD 9x8-4M-80 | 80° | 8x9 | 4 MHz | |
HFD 22x20-2M-35 | 35° | 20x22 | 2 MHz | |
HFD 22x20-2M-45 | 45° | 20x22 | 2 MHz | |
HFD 22x20-2M-60 | 60° | 20x22 | 2 MHz | |
HFD 22x20-2M-70 | 70° | 20x22 | 2 MHz | |
HFD 22x20-2M-80 | 80° | 20x22 | 2 MHz | |
HFD 22x20-4M-35 | 35° | 20x22 | 4 MHz | |
HFD 22x20-4M-45 | 45° | 20x22 | 4 MHz | |
HFD 22x20-4M-60 | 60° | 20x22 | 4 MHz | |
HFD 22x20-4M-70 | 70° | 20x22 | 4 MHz | |
HFD 22x20-4M-80 | 80° | 20x22 | 4 MHz |
Testing Curve Report for a Transducers (optional by order)
Probe can be OEM as customer request, with different size, frequency, LEMO BNC SUBVIS connector
Contact Person: Ms. Shifen Yuan
Tel: 8610 82921131,8613910983110
Fax: 86-10-82916893
