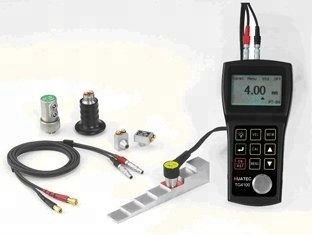

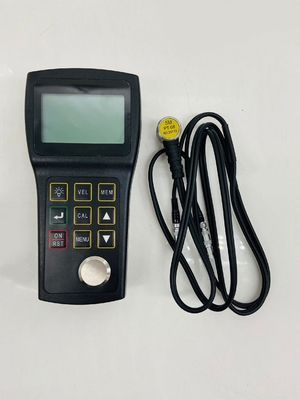

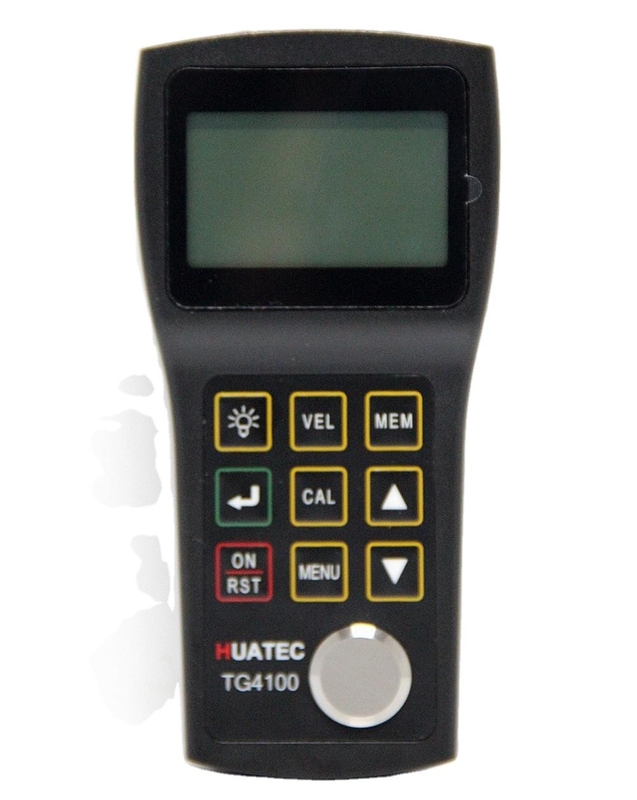

Through Coating Ultrasonic Thickness Gauge Automatic Self Calibration

Description
Product Name: Through Coating Ultrasonic Thickness Gauge Model: TG-4100
DISPLAY: 128X64 PIXEL LCD WITH BACK LIGHT STANDARD: 0.8 Mm TO 300 Mm
POWER: 2 EA. 1.5 V AAA BATTERY OUTSIDE DIMENSION: 149X73X32 Mm
Highlight:

Through Coating Ultrasonic Thickness Gauge

,

Automatic Ultrasonic Thickness Gauge

,

Automatic Self Calibration Ultrasonic Thickness Gauge

Through Coating Ultrasonic Thickness Gauge Automatic Self Calibration





TECHNICAL DATA



DISPLAY 128X64 PIXEL LCD WITH BACK LIGHT

MEASURMENT RANGE

STANDARD 0.8 mm TO 300 mm IN STEEL DEPENDING OF THE PROBE

special request can reach measuring range up to 500mm

THROUGH COATING 2.5 mm – 18 mm ( DEPNDING OF THE PROBES )

TOLERANCE +/-0.05 mm IN STEEL

DISPLAY RESOLUTION 0.01 mm ( Less than 100.0 mm )

                                         0.1mm ( over 100 mm )

BULIT-IN STANDARD BLOCK 4.00 mm

VELOCITY RANGE 1000-9999 m/s

POWER 2 EA. 1.5 V AAA BATTERY

OUTSIDE DIMENSION 149X73X32 mm

WEIGHT 160 g





FEATURES:



- AUTOMATIC SELF CALIBRATION

- COUPLANT INDICATOR

- AUTOMATIC POWER OFF DEVICE IN 5 MINUTES AND MANUAL POWER OFF FUNCTION

- HIGH-LOW LIMIT ALARM

- LCD BRIGHTNESS ADJUST

- THROUGH COATING CAPABILTY

- LOW BATTERY INDICTOR

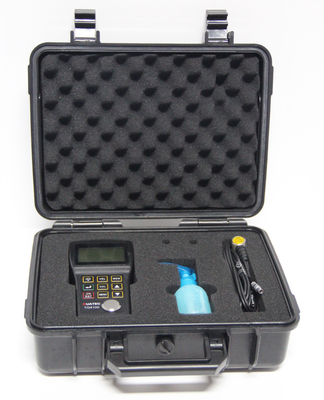

STANDARD PACKAGE:



  • TG4100 MAIN UNIT WITH THOUGH COATING MODE
  • HARD CARRING CASE
  • COUPLANT BOTTLE
  • STANDARD 8 mm, 5 MHz PROBE WITH CABLE ( THROUGH COATING DEVICE)
  • Operation manual
  • Calibration report
  • Packing list



OPTIONAL ACCESSORIES:



  • 4 STEP STEEL TEST BLOCK
  • 7 STEP METRICS STEEL TEST BLOCK
  • 5 MHz, 4 mm CONTACT PROBE
  • 10 MHz, 4 mm, CONTACT PROBE
  • 5 MHz HIGH TEMPERATURE PROBE
  • PROBE CABLES
