Product Details:
|
| Product Name: | Magnetic Particle Flaw Detector | Basic Function: | AC Magnetization, Directly Plugged In For Use |
|---|---|---|---|
| Power: | AC/DC | Duty Cycle: | 50%, Max On Time Is 90 Seconds |
| Appearance: | Controllable Injection Molding, No Defects In Appearance | Voltage: | 240V，230V，220V，110V，36V Various Voltages |
| Heat Dissipation: | Space With Air Flow Inside, Low Temperature Rise | White And UV Light: | White Light And Ultraviolet Light, Touch Controlled Switch, Adjustable Brightness |
| High Light: | heat resistant magnetic particle testing kit,flaw detector magnetic particle testing kit,heat resistant magnetic particle flaw detector |
||

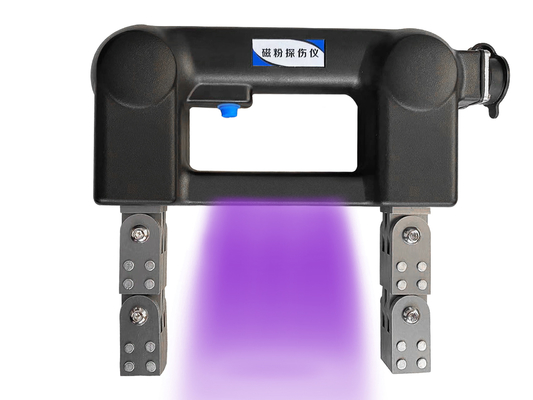

Magnetic Particle Flaw Detector is a type of testing equipment used to detect surface and subsurface defects in ferromagnetic materials. It can be used for AC magnetization and directly plugged in for use. It has a controllable injection molding with no defects in appearance, and its shell color can be customized. It is powered by AC/DC and is widely used in industrial applications. It is also known as Yoke Detector, Magnetic Flaw Detector, Magnetic Yoke Flaw Detector, etc.
| Parameter | Description |
|---|---|
| Power | AC/DC |
| Product Name | Magnetic Particle Flaw Detector |
| Duty Cycle | 50%, Max On Time Is 90 Seconds |
| Basic Function | AC Magnetization, Directly Plugged In For Use |

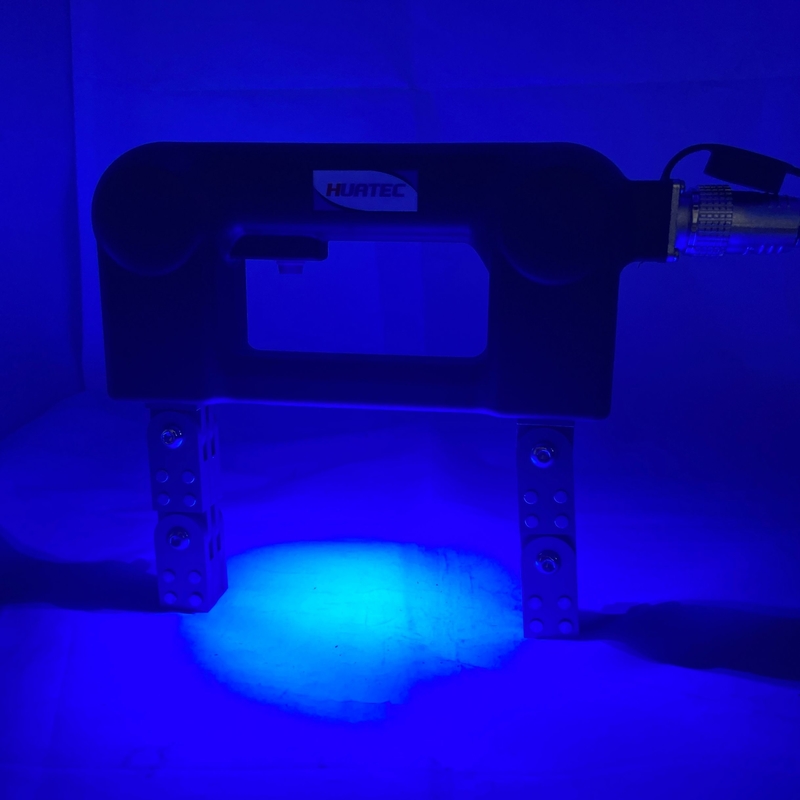

| White and UV Light | White Light And Ultraviolet Light, Touch Controlled Switch, Adjustable Brightness |
| Maintenance | The Split Shell Is Used For Convenient Maintenance, User Can Replace Power Switch, Cable Socket, Lamp Friendly |
| Heat Dissipation | Space With Air Flow Inside, Low Temperature Rise |
| Appearance | Controllable Injection Molding, No Defects In Appearance |
| Voltage | 240V, 230V, 220V, 110V, 36V Various Voltages |
| Heat Resistance | The Shell Has Good Heat Resistance And Does Not Deform At High Temperature |

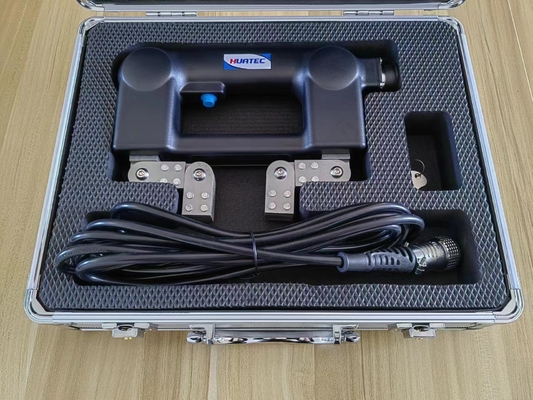

The Huatec HCDX series Magnetic Particle Testing Equipment is a reliable and dependable device for quickly and accurately detecting and locating internal or surface defects on ferromagnetic materials. It is an ideal solution for non-destructive testing of materials such as steel, cast iron, stainless steel, and other ferrous alloys. The equipment features a leg magnetic yoke, portable magnetic flaw detector, and a portable magnetic flaw detector for maximum coverage. The duty cycle is 50%, with a maximum on time of 90 seconds, and it comes with an adjustable brightness touch-controlled switch for both white and ultraviolet light. Furthermore, its split shell design allows for convenient maintenance, allowing users to replace power switches, cable sockets, and lamps. It offers a wide range of power options, including AC/DC, as well as various voltages, such as 240V, 230V, 220V, 110V, and 36V.
Huatec offers customized services for Magnetic Particle Testing Equipment. Our Magnetic Yoke Flaw Detector, also known as Yoke Detector, is made in China with superior quality. It has adjustable voltage from 240V, 230V, 220V, 110V, 36V and up. Users can replace power switch, cable socket and lamps for convenient maintenance. It is equipped with white light and ultraviolet light with touch controlled switch and adjustable brightness. The duty cycle of this Magnetic Yoke Flaw Detector is 50%, and the max on time is 90 seconds.
The Magnetic Particle Testing Equipment will be securely packaged for shipping. The package will be made of corrugated cardboard and will include cushioning materials to protect the equipment during transit. Once packaged, the equipment will be sent via a reputable courier service with tracking numbers provided.
