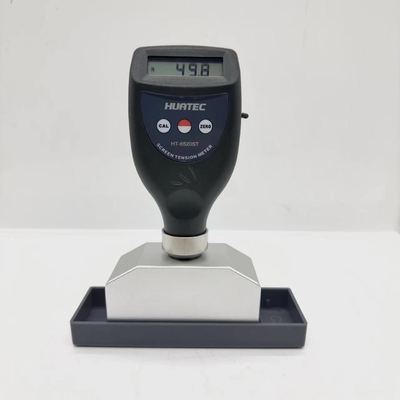

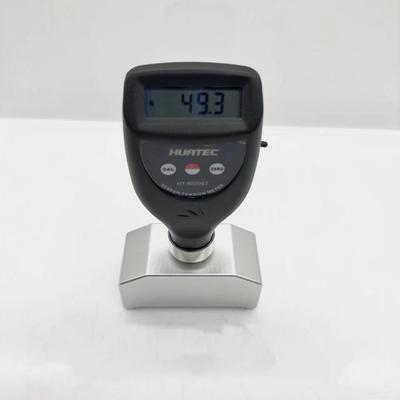

Product Details:
|
| Product Name: | Tension Tester | Model: | HT-6520ST |
|---|---|---|---|
| Measurement Range: | 7~40N/cm | Diaplay Range: | 0~50N/cm |
| Resolution: | 0.1 | Power Supply: | 4x1.5V AAA Size (UM-4) Battery |
| High Light: | high accuracy tension meter,general wire mesh tension meter,steel mesh surface tension measurement |
||
High Accuracy For General Wire Mesh Tension And Steel Mesh Tension Measurement
Applications & Features
* Suitable for general wire mesh tension and steel mesh tension measurement, high accuracy.
* The ideal and necessary tool for production of precise screen and steel mesh. Can avoid the personal or tactile
measurement error.
* LCD digital display, eliminating reading error.
* Applies USB, RS-232, Bluetooth data output
Technical Data
Commonly Used Screen Maximum Tension
Data in the table is based on testing condition of Swiss thick gauze. Concrete data depends on the quality of
network machine. With good quality network machine,the gauze will not crack even in the highest tension. but
if it exceeds the maximum tension, the gauze cracks easily, please reference when trapping net.
| Maximum Tension | Regulating Pressure | ||
| 77T | 200 mesh | 30N/cm | 7kg/cm |
| 90T | 230 mesh | 25N/cm | 6.5kg/cm |
| 100T | 250 mesh | 23N/cm | 6kg/cm |
| 120T | 300 mesh | 21N/cm | 5.7kg/cm |
| 140T | 350 mesh | 20N/cm | 5.3kg/cm |
| 165T | 420 mesh | 18N/cm | 5kg/cm |
| Note: The above data is the reference data in the use of a factory pneumatic net machine, the specific operation according to actual circumstances | |||
Specifications
| Measurement Range | 7~40N/cm |
| Diaplay Range | 0~50N/cm |
| Resolution | 0.1 |
| Fiducial Error | 5% |
| Operating Condition | Temp.: 0~40℃ Humidity: 10~90%RH |
| Power Supply | 4x1.5V AAA Size (UM-4) Battery |
| Dimensions | 175x95x40mm |
| Weight | 490g (Not Including Batteries) |

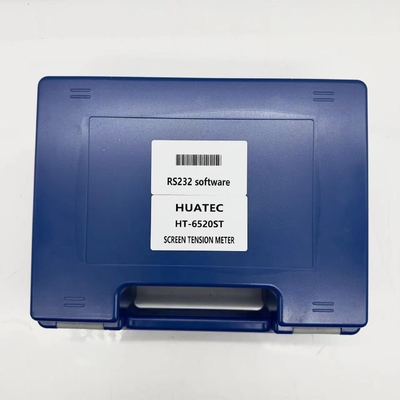

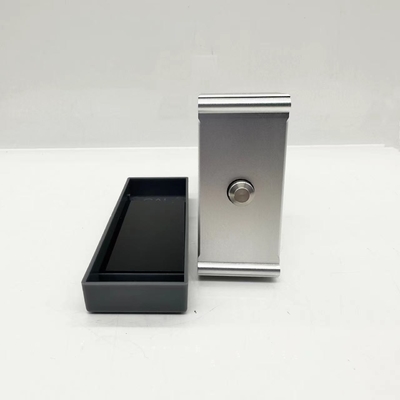

| Standard Accessories | Main Unit |
| Calibration Board | |
| Carrying Case | |
| Operation Manual |
Printing Task and Determination of Screen Tension
| Wire Mesh | Printing Task | Tension (N/cm) |
| Ultra High Tension Wire Mesh | Circuit Board and Measuring Scale | 16~20 |
| High Strength Wire Mesh | Multicolor and Four-Color Printing (Mechanical Printing) | 16~20 |
| High Precision Ultra Fine Wire Mesh | High Precision Multi Layer Circuit Printing | 25~30 |
| High Precision Polyester Net (Standard Monofilament) | Multicolor and Four-Color Printing (Manual Printing) | 8~12 |
| Ordinary Polyester Net (Standard Monofilament) | Flat Object | 8~12 |
| Nylon Mesh | Curve Surface or Rough Object | 8~12 |
