High Precision Digital Thickness Gauge Block For Linearity Checking

Large Image : High Precision Digital Thickness Gauge Block For Linearity Checking

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	Set (17 pcs)

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD270 per set
Packaging Details:	Carton
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500pcs per months

Contact Now

High Precision Digital Thickness Gauge Block For Linearity Checking

Description

Material:

Carbon Steel

Use:

Checking Linearity Of Ultrasonic Contact Thickness Gauges.

Colour:

White

Standard Value:

0.5 1.0 1.2 1.5 2.0 3.3

Highlight:

high precision digital thickness gauge block

linearity checking digital thickness gauge block

High precision Blocks for the linearity checking of Digital Thickness Gauge

Set (17 pcs) of ultrasonic thickness calibration blocks is intended for checking linearity of ultrasonic contact thickness gauges.

High quality of the materials
High precision blocks to a tolerance of ±5%

Standard value	0.5	1.0	1.2	1.5	2.0	3.3
Allowable error (a)	±0.01
Standard value	5.5	7.7	10	15	20	25	50
Allowable error (a)	±0.01				±0.02
Standard value	75		100		150	200
Allowable error (a)	±0.02	±0.05

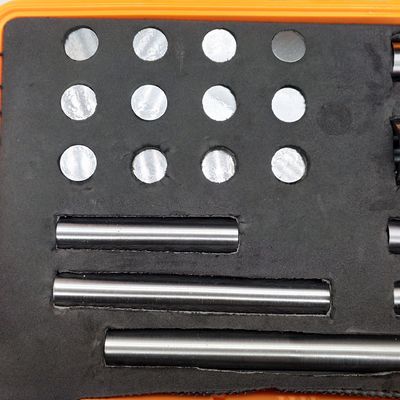

High Precision Digital Thickness Gauge Block For Linearity Checking 0

The blocks can be supplied as a complete set or separately.

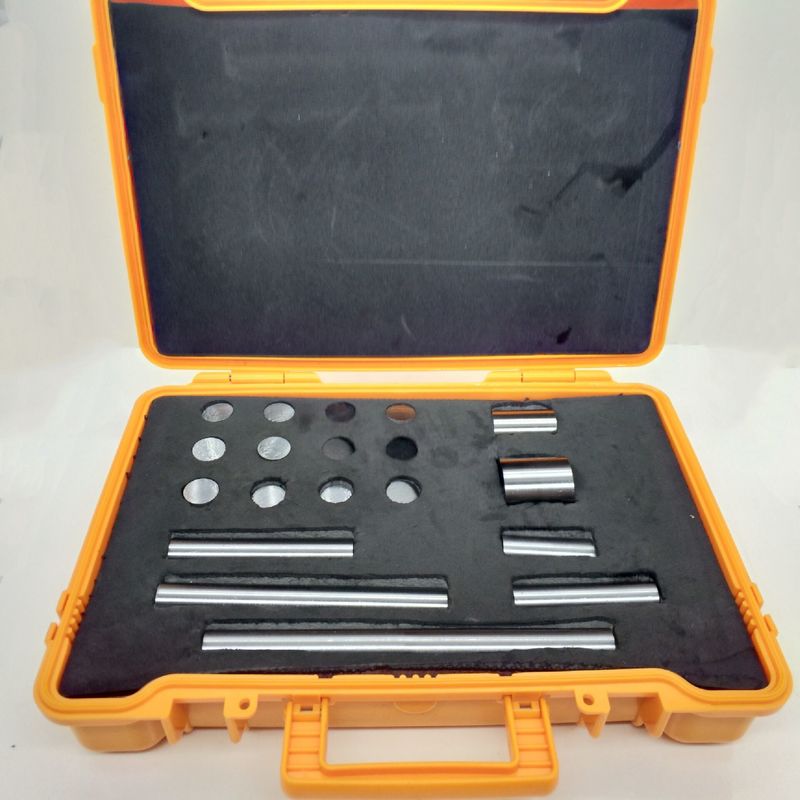

High Precision Digital Thickness Gauge Block For Linearity Checking 1

High Precision Digital Thickness Gauge Block For Linearity Checking 2
