Product Details:
|
| Product Name: | Surface Roughness Tester | Model: | SRT-6680 |
|---|---|---|---|
| Measuring Range: | ±80μm/±160 µm（enhanced Model） | Graphic: | Bearing Area Curve, Roughness Profile, Primary Profile |
| The Sampling Length(lr): | 0.25, 0.8, 2.5mm | Accuracy: | Less Than ±10% |
| High Light: | 22 Parameters surface roughness tester,Tft Touch Screen surface roughness tester,surface roughness tester With Graphic |
||

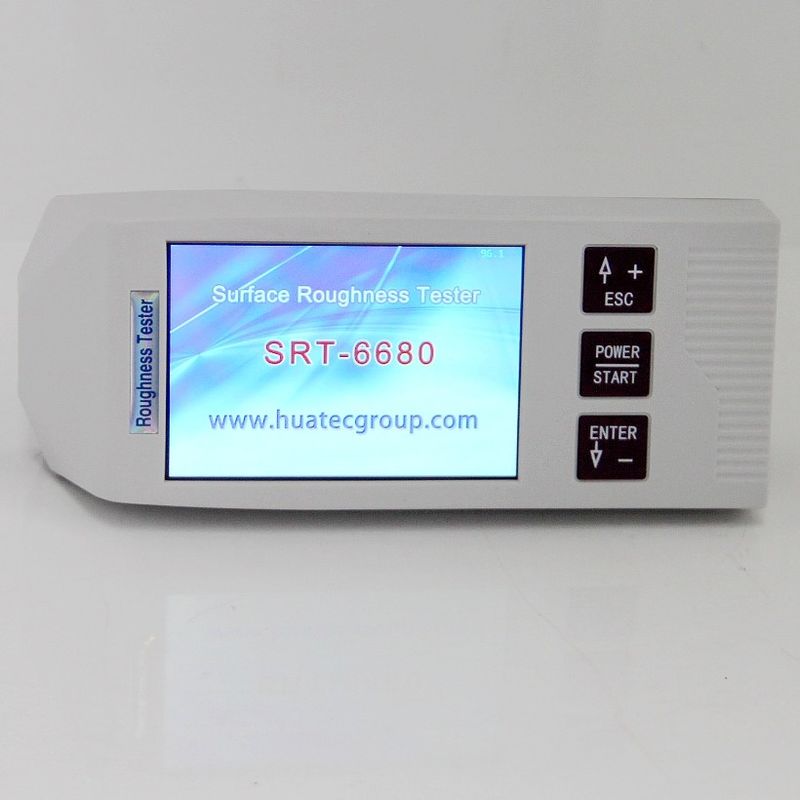

22 PARAMETERS TFT TOUCH SCREEN SURFACE ROUGHNESS TESTER SRT-6680 WITH GRAPHIC
Main Features
1. Mechatronic and ergonomics design, small size, light weight, easy to operation
2. The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.
3. DSP chip control and data processing, high speed, low power consumption
4. 22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2
5. Measurement range up to 160μm (can be optional to 320μm)
6. 3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments
7. Can be operated using buttons or touch screen
8. It provide Bluetooth Capability , support wireless connection with mobile and mini printer.
9. Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint
10. Large capacity data storage, 100 item of raw data and curves can be stored
11. Real-time clock setting and display for easy data recording and storage
12. With auto sleep, auto power off, power-saving features
13. Reliable circuit and software design to preventing the motor stuck
13. Language: Chinese and English switch freely
15. All parameters or any of the parameters which set by users can be printed
16. Optional accessories: Bluetooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer
17. Portable Surface Roughness Tester SRT6680 complies with international standards ISO, DIN, ANSI, JIS
Technical parameters
| Measuring Range | The Z axis (vertical) | ±80μm/±160 µm(enhanced model) |
| The X axis (Transverse) | 20mm | |
| Resolution | The Z axis (vertical) | 0．01μm/±20μm |
| 0．02μm/±40μm | ||
| 0．04μm/±80μm | ||
| 0．08μm/±160μm | ||
|
22 Parameters
|
Ra,Rz,Rq,Rt,Rp,Rv,R3z,R3y,Rz(JIS),Rs,Rsk,Rsm,Rku,Rmr,Ry(JIS), Rmax, RPc, Rk, Rpk, Rvk, Mr1, Mr2) | |
| Graphic | Bearing area curve, Roughness profile, Primary profile | |
| Filter | RC,PC-RC,Gauss,D-P | |
| The sampling length(lr) | 0.25, 0.8, 2.5mm | |
| Assessment length(ln) | Ln= lr×n n=1~5 | |
| Sensor | Measuring method | skidded |
| Stylus tip | Diamond, 90 cone angle, 5μmR | |
| Force | <4mN | |
| Skid part | hard alloy, skid radius of curvature: 40mm | |
| Traversing speed | lr=0.25, Vt=0.135mm/s | |
| lr=0.8, Vt=0. 5mm/s | ||
| lr=2. 5, Vt=1mm/s | ||
| Return Vt=1mm/s | ||
| Accuracy | Less than ±10% | |
| Repeatability | Less than 6% | |
| Power supply | Built-in Lithium ion battery, Charger :DC5V,800mA | |
| Outline dimension | Main unit: 64*53*160mm drive: 23*27*115mm | |
| Weight(main unit) | Around 380g | |
| Working Environment |
Temperature: - 20℃ ~ 40℃ Humidity: < 90% RH |
|
| Store and Transportation |
Temperature: - 40℃ ~ 60℃ Humidity: < 90% RH |
|
Standard Delivery
| ITEM | QTY |
| SRT6680 Host | 1 PC |
| Sensor TS110 | 1 PC |
| Calibration block and bracket | 1 PC |
| Bracket for Calibration Block | 1 PC |
| Height adapter | 1 PC |
| Power Charger & USB Cable | 1 PC |
| PC Software | 1 PC |
| User manual | 1 PC |
| Instrument case | 1 PC |
| Warranty | 2 Years |
