Versatile HKSM-1 Adhesion Tester for Pull-Off Strength Measurement on Various Materials

HUATEC HKSM-1 Adhesion tester (pull method)

Application field

HKSM-1 puller adhesion tester can measure the adhesion of metal, paint, spray, waterproof material, adhesive, chrome plating, nickel plating, concrete and other material coatings. The working principle of the instrument is to use the hydraulic system to measure the adhesion of the coating of a certain diameter on the surface of the matrix. The multifunctional digital display of the tester shows the size of the adhesion, with MPa or KN as the unit of display. Digital display, the test results are intuitive and reliable. Different from the marking device, the error of human observation is reduced. The product according to international and national standards design and manufacturing, leading technology, stable performance

Conforming standard

ISO 4624 Paints and varnishes Pull-offtest for adhesion

ASTM D 4541 StandardTest Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers

ASTM D7234 Standard Test Method for Pull-OffAdhesion Strength of Coatings on Concrete Using Portable Pull-OffAdhesion Testers

GB/T 5210-2006 "color paint and varnish pulling method adhesion test"

TB-T2965-2011 "Railway Concrete bridge deck waterproof layer Technical Conditions"

Instrument parameter

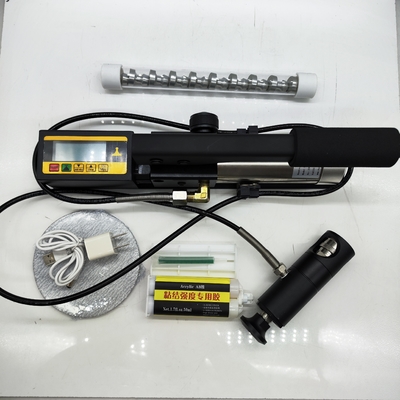

Product configuration:

1. A digital display manual pump

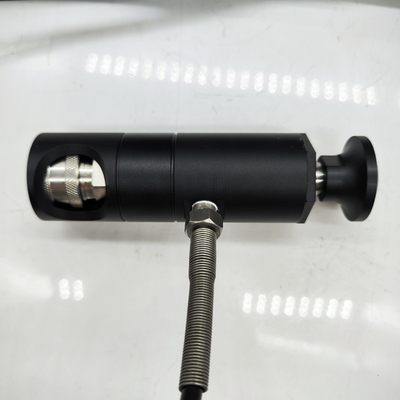

2. Quickly pull out one sleeve

3. A charger

4.20mm spindle ten

5. One cutter

6. Grinding pad six pieces

7. A set of adhesives

8. One copy of certificate, warranty card and manual

9. A portable instrument case

Instrument characteristics:

1, portable handheld instrument, can be used anywhere, no external power supply - can be used in the laboratory, can be used in the field.

2, large and easy to read LCD digital display

3. Press the button to select the spindle size, measuring unit and storage data, and calculate the result automatically according to the spindle size.

4, portable instrument box with alloy and stainless steel body, rain proof, dust proof, anti-impact.

5, high quality hydraulic pump can be used in any occasion, warranty for three years.

6, the pressure and display system are calibrated by the standard dynamometer, the accuracy is controlled within ±1%(full scale).

7, self-positioning spindle, smooth and rough surface has no effect on the measurement results.

8, high-grade industrial pressure sensor to ensure continuous high precision.

9, optional 10mm, 14mm, 20mm and 50mm spindle.

10, LCD liquid crystal display, you can choose MPa or KN unit.
