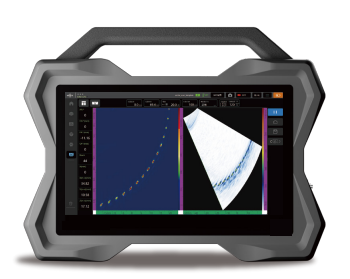

HPA-510 Full Matrix Acquisition (FMC) Total Focusing (TFM) Ultrasonic Phased Array Flaw Detector

Channel

Maximum PRF

PA system bandwidth

PA maximum aperture

TFM maximum aperture

64:128 PR

40KHz

0.4 MHz to 25MHz

64

128

32:128 PR

20KHz (upgradable to 40KHz)

0.4 MHz to 18MHz

32

64

32:64 PR

20KHz (upgradable to 40KHz)

0.4 MHz to 18MHz

32

64

Parameter

Value

Dimensions (W x H x D)

348*254*114 mm (13.7*10*4.5in)

weight

About 4.96kg (including 1 battery)

Screen size

11.6 inches (1920*1080)

Touchscreen Technology

capacitance

Operating temperature

-10°~45°C (14°~113°F)

Storage temperature

-10°~60°C (14°~140°F) (with battery inside)

Cooling fan

2

Operating humidity

70% max at 45℃ (113°F) without cooling

Battery runtime

5 hours operation on 2 batteries

Hard disk capacity

256 GB SSD (expandable to 1T)

USB 3.0

2

Wireless connectivity

have

Video Output

Mini DP

PA Channels

have

Parameter

Value

Number of groups

Upgradable to 4 PA probes or 128 UTs, 128 groups

Number of digits

16 bit

A-scan maximum amplitude

Up to 1600%

Maximum number of A-scan data points

Up to 16384

Maximum number of focal laws

8192

Digital frequency

200MHz

Pulse generator voltage

±100V

Pulse shape

Negative square wave, positive square wave, bipolar square wave optional

Phased Array Gain Range

0-120 dB

Pulse Width

20ns to 1250ns

Real-time average

Up to 64

TCG Multi-point Collection

yes

Parameter

Value

TFM supported modes

LL\LLL\LLLL\TT\TTT\TTTT\TTTTT
TLT\TLL\LTT

TFM resolution

1024 x 1024

Number of digits

16

Real-time Envelope

have

FMC/PCI Functionality

support

PWI/TFM Function

support

FMC/PCI Functionality

support

Parameter

Value

Number of regular UT channels

Supports conventional UT and TOFD modes

Number of TOFD groups supported

2 groups

Excitation voltage

Up to 300V

Voltage adjustment step

1V

Pulse shape

Negative square wave

Pulse Width

20ns to 1250ns

Pulse width modulation step

1ns

Pulse repetition frequency

30KHz

Bandwidth

0.4 MHz to 25 MHz

UT gain range

0-120 dB

Display

A / Sideview(TOFD) / C

Feature

Value

User Experience

Smooth operation

Probe Database

have

Wedge Database

have

Focus mode

Depth, path, level

2D Focal Law Calculation

have

Beam coverage display

have

3D display of workpiece structure

have

Remote Control

have

PAUT and TFM are displayed simultaneously

have

Multi-modal TFM simultaneous detection

have

3D data view

have

Support wireless transmission

have
