Product Details:
|
| Display Accuracy: | 0.1 Um（0 ~ 99.9 Um），1um（100 ~ 10000 Um），0.1g/㎡（model TG-6105P） | Calibration Mode: | Zero, One-Point, Two-Point And Basic Calibration |
|---|---|---|---|
| Display: | LCD Display | Power Supply: | 3 * AAA Alkaline Batteries For 100 Hours Usage (close Backlight) |
| Highlight: | Copper Galvanized Layer Coating Thickness Gauge,Tin Plating Coating Thickness Gauge,Multifunction Coating Thickness Gauge |
||

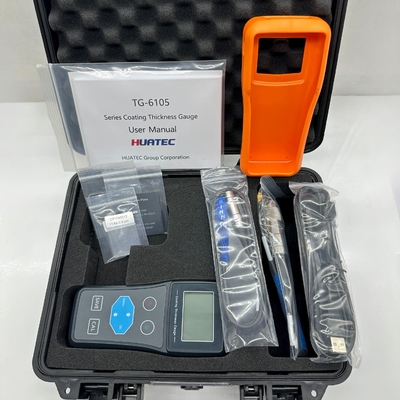

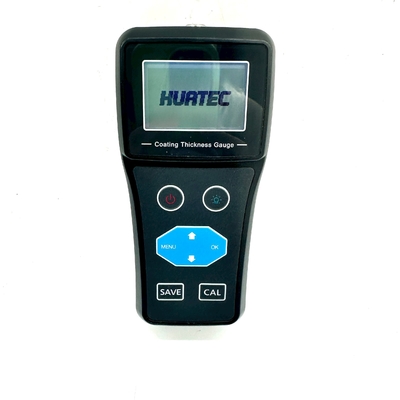

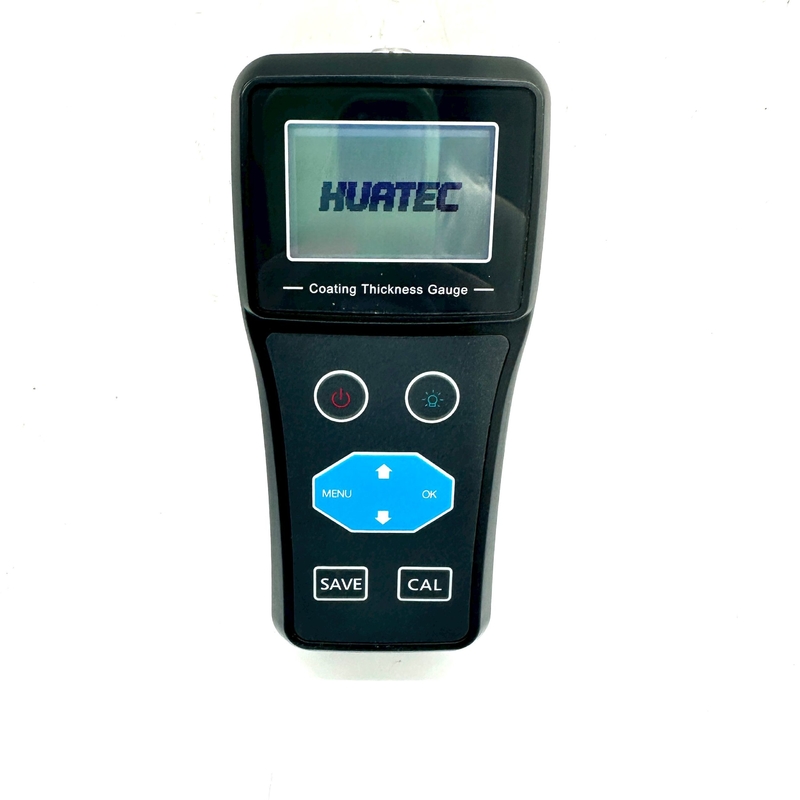

Tin plating on copper galvanized layer multifunction coating thickness gauge
TG-6105 is a magnetic and eddy current portable coating thickness gauge, It can quickly, without damage, the precision to measure magnetic metal substrates (such as steel, iron, alloy and hard magnetic steel, etc.) on the magnetic coating thickness (such as zinc, aluminum, chromium, copper, rubber, paint, etc.)
Technical Parameters:
| Display accuracy | 0.1 um(0 ~ 99.9 um),1um(100 ~ 10000 um),0.1g/㎡(model TG-6105P) |
| Calibration Mode | Zero, One-Point, Two-Point and Basic Calibration |
| Measuring mode | Single point, scan mode, weight mode,differential mode, Mean value model,alarm mode |
| Display | English / Chinese selectable, FSTN LCD Display with backlight |
| Screen display | Thickness measurement value, unit weight measurement value, density set value, date, time, coupling state, Bluetooth state (optional), power indicator, measurement mode, probe type, real-time temperature compensation state, data storage state, storage file state, etc |
| Data memory | 500 measurements, including time, probe type, etc. |
| Communication | Bluetooth (optional) & Mini-USB interface, virtual serial port protocol, support online measurement with PC or Smart Phones, host software upgradable |
| Data printing | Optional portable Bluetooth thermal printers |
| Power supply | 3 * AAA alkaline batteries for 100 hours usage (close backlight) |
| Power off | Timeout power off, and low battery power off |
| Temperature | Usage: -10 ~ 50 °C, Store: -30 ~ 60 °C |
| Size and weight | 150mm*70mm*30mm / about 160g(no battery) |
| Material | ABS and PC alloy(IP67) |
and nonmagnetic metal substrates (such as copper, aluminum, zinc, tin, etc.) on the conductive layer thickness (such as rubber, paint, plastic, anodic oxidation film, etc.),
