Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection

Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection
Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection

Large Image :  Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection

Product Details:
Place of Origin: China
Brand Name: Huatec
Model Number: DG-3101S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: High quality carton
Delivery Time: 3~7 working days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 100 sets per month
Contact Now

Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection

Description
Product Name: UV Headlamp Model: DG-3101S
Peak Wavelength: 365-370nm Ultraviolet Intensity: 10000μW/ Cm Distance Is 38cm
Power: 2pcs Of 18650 Lithium Battery Dimension: 40 ×38mm
Highlight:

Adjustable UV Headlamp

,

Fluorescent Magnetic Particle Headlamp

,

Penetration Inspection Headlamp

Helmet-Type Black Adjustable UV Headlamp Fluorescent Magnetic Particle And Penetration Inspection



Main features

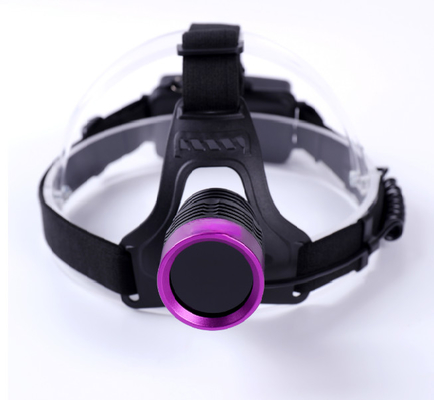

A new palm-sized, hands-free light source that can be worn on the head with a UV helmet type black light that frees the user's hands during inspections.

Helmet-type black lamp is an ideal test tool for fluorescent magnetic particle and penetration inspection, mine inspection, etc.

The DG-3101S UV headlamp is equipped with the powerful UV-A (365 nm) LED lamp design.

The on/off button of the DG-3101S UV helmet type black light is positioned on the back of the light to prevent accidental switching; DG-3101S UV helmet type black light specially designed.

Constant current drive line, can keep the UV intensity constant, even when the battery capacity is insufficient.

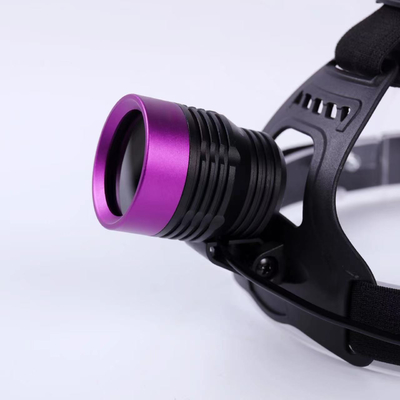

DG-3101S UV helmet type black light head can be 90 degrees up-and-down adjustment.



Technical parameter

Peak wavelength 365-370nm
Ultraviolet intensity 10000μW/ cm distance is 38cm
UV LED quantity 1× 5W 365nm UV LED,LED The average life span is 30,000 hours
Power 2pcs of 18650 Lithium battery,4400mAh,Usage time: 3.5 hours
Irradiated area _50mm at a distance of 38 centimeters
Dimension 40 ×38mm
weight 200g no accessories



Helmet type black light product application

▪ Refrigerant leak detection

Penetration testing, fluorescence detection

▪ Engine oil leak detection

▪ Fluorescence observation of ore



Helmet type black light product standard configuration

Host, a pair of LUV-10 glasses, charger, manual, certificate, warranty card
