Product Details:
|
| Measuring Range: | 170-960HLD | Reproducibility: | ± 6 HLD |
|---|---|---|---|
| Measuring Direction: | 360° | Data Transmission: | USB And WiFi |
| Display: | Bright Touch-screen LCD | Hardness Scales: | HRC, HRB, HV, HB, HS |
| Power Supply: | 2x 1.5V AA Batteries | Moq: | 1pc |
| Highlight: | WIFI Portable Hardness Tester,Batteries Powered Portable Hardness Tester,Batteries Powered Hardness Tester |
||
WIFI Portable Hardness Tester RHL-100
The durometer RHL-100 has been developed for hardness measurements on metallic materials. The durometer measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The durometer RHL-100 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The RHL-100 durometer is equipped with a backlit colour display.
Likewise, the buttons on the RHL-100 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The durometer RHL-100 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the durometer via software to a PC. The durometer is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.
- USB and WiFi for data transmission
- Large, bright touch-screen LCD display
- Large measuring range
- Measurement possible in every position
- Hardness scales (HRC, HRB, HV, HB, HS)
- For all metallic materials
| Measuring range | 170 ... 960 HLD |
| Reproducibility | ± 6 HLD |
| Impactor | Type D |
| Measuring direction | 360° |
| Adjustable scales | Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore |
| Surface quality Ra of the workpiece | 2 µm |
| Minimum weight of the workpiece | Direct measurement: 5 kg / 11 lbs Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs |
| Minimum thickness of the workpiece | Direct measurement: > 5mm / > 0.19 in With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in |
| Display | Color LCD |
| Internal measured value memory | 600 records in 6 files |
| Interface | USB, WiFi |
| Power supply | 2 x 1.5V AA batteries |
| Operating time | ca. 50 hours |
| Operating conditions | 10 ... 50°C / 50 ... 122°F max. 90% r.H. |
| Storage conditions | -30 ... 60°C / -22 ... 140°F max. 90% r.H. |
| Dimensions | 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in |
| Weight | 350 g / < 1 lb |

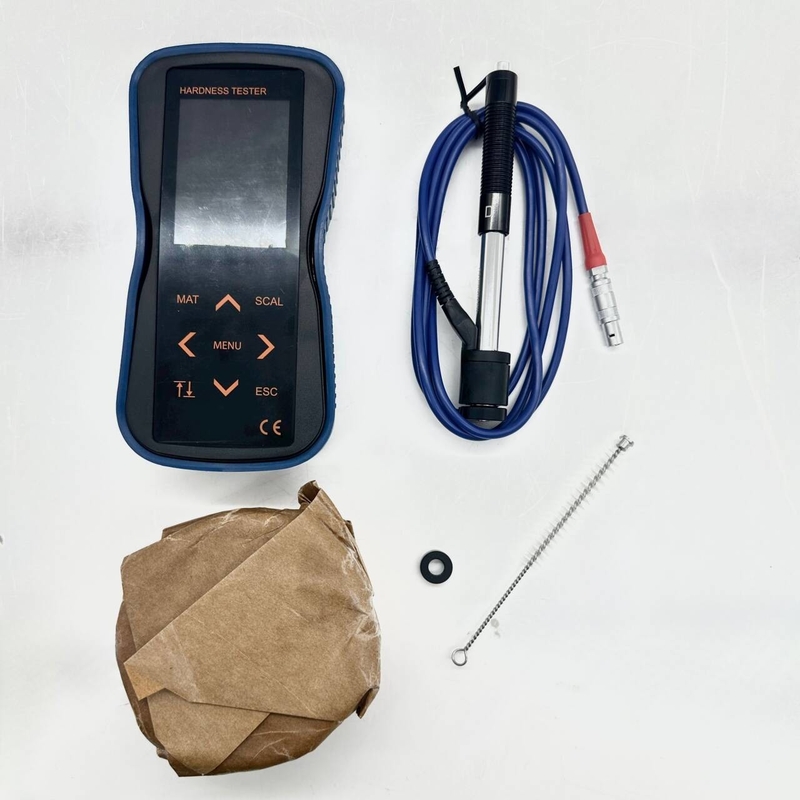

Standard Delivery
1 x Durometer RHL-100
1 x Impactor D
1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case
