Coulometric Thickness Tester Of Tin Plating On Copper Metal

Coulometric Thickness Tester Of Tin Plating On Copper Metal

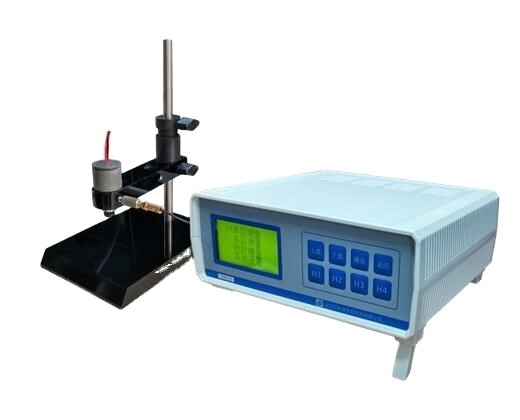

TG-100D coulometric thickness gauge, using anode dissolution coulomb method, conforms to ISO2177 standard. It can measure chromium, nickel, copper, zinc, tin, silver, gold, cadmium and other metal coatings, nickel alloy coatings, composite coatings (such as Cr/Ni/Cu) and multilayer nickel coatings.

1. Product use: measurement of plating thickness

2. Application field:

The electrolytic thickness gauge adopts the principle of Coulomb method to measure the thickness of the coating, so it is also called Coulomb method thickness gauge or electrolytic thickness gauge. It is an ideal instrument for measuring various single metal coatings and multi-metal coatings on metal (such as steel, copper, zinc alloy or non-metal (such as plastic, neodymium iron boron) substrates. It is widely used in the following industries: automobiles, motorcycles, Bicycles, sports equipment, aerospace and navigation, electronic appliances, high and low voltage switches, household hardware, sanitary ware, kitchenware, plastic plating, standard rooms, NdFeB, security products, cables and other industries, technical supervision departments and scientific research institutions .

3. Specific applications:

Such as mobile phone and camera buttons, car knobs, hardware tools, electronic and electrical parts, showers, faucets, shelves, sports equipment, bicycles, standard parts, kitchen supplies, toilet supplies, locks, door handles, car signs, doors Cabinet accessories, motorcycle brackets, mufflers, car signs, wind grills, car door locks, car handles, car interior parts, connectors, wires, welding wires, neodymium iron boron plating, etc. are used in automobiles, motorcycles, sanitary ware and other industries The STEP function is measured simultaneously to the thickness and potential difference of multilayer nickel. At this time, use TG-G electrolytic thickness gauge to complete.
Measuring plating species: standard configuration: it can measure chromium, nickel, copper, zinc, tin, silver, gold and other metal plating, composite plating (such as Cr/Ni/Cu) about 20 kinds of plating/matrix combinations. If you need to measure other coatings, please ask in advance.

4. Technical specification

Coating substrate: metal, non-metal
Number of coating layers: single layer and multiple layers
Test size: φ2.4mm (B type test rubber ring) or φ1.7mm (S type test rubber ring)
Measuring range: 0.1～35μm (Under the condition of ensuring accuracy, thicker coating can also be measured, the error will gradually become larger)
Indication error: ≤±10%
Resolution: gold, decorative chromium 0.01μm; other plating species 0.1μm
Power source: AC 220V±10%, 50/60Hz, 30W
Host size: 210 (W) × 360 (D) × 85 (H) mm

5. Standard delivery:
1pc host,
1pc test stand,
1pc cleaning bottle,
1pc waste bottle,
10pc straws,
1pc eraser,
1pc tweezers,
1pc pack of paper towels,
1pc power cord,
1pc accessory disk,
1pc manual,
1pc warranty card,
1pc certificate

6. Options accessories:
STD-L wire test stand, STD-08 test stand, imported 250ml pipette bottle, imported 250ml suction bottle, imported plating calibration board
