Product Details:
|
| Detector: | High-performance Sipin Detection Components | Element Detection Range: | Total Of 25 (can Continue To Add) |
|---|---|---|---|
| Detection Object: | Solidity | Data Transmission Mode: | Wifi、Bluetooth |
| Highlight: | handheld x ray fluorescence spectrometer,portable x ray fluorescence spectrometer,x ray fluorescence spectrometer xrf |
||

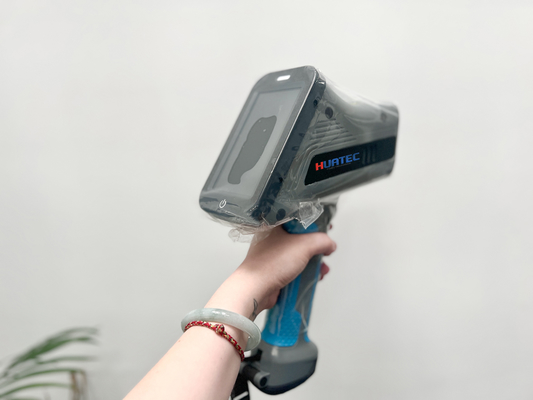

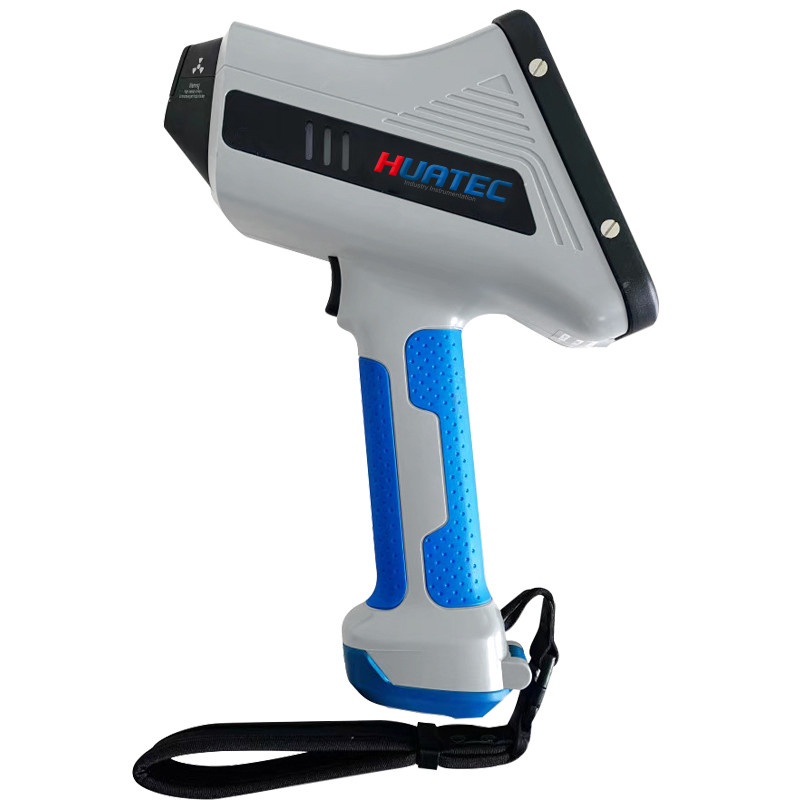

HXRF-120X Handheld XRF X-ray fluorescence Spectrometer
| HXRF-120X Handheld X-ray fluorescence spectrometer | |
| detector | High-performance Sipin detection components |
| Excitation source | 45KV/200uA- Silver target/Tungsten target end window integrated micro X-ray tube and high voltage source |
| Element detection range |
1, the atomic number is 20 to 92 elements between calcium (Mg) and uranium (U) 2, equipped with a large area detector to analyze the main elements in the alloy: Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Zr, Nb, Mo, Ag, Cd, Sn, Sb, Ta, W, Pb, Bi and Mg,Al,Si,P,S a total of 25 (can continue to add) |
| Detection object | solidity |
| Analytical method |
Direct Reading Analysis + Basic Parameter Method (FP) IP54 certification (splash and dust proof) |
| Software | Remote control system, windows based PC/Android based mobile phone can operate the instrument through the software, to achieve data synchronization across multiple platforms (instrument, PC, mobile and cloud), the software has data analysis, spectrum display, report printing and other functions, the instrument client has the function of sending analysis reports by email; |
| Weight | ≤1.75kg(include battery) |
| Microcomputer display system |
1, semi-transparent semi-anti-industrial custom touch screen ≥5 inches 2, resolution 1080*720 3. SDD detector 4, support WIFI 5, password security protection |
| Power source |
1, rechargeable lithium battery, standard 6800mAh, voltage: 7.2V; Sustainable work up to 12 hours; 2, the instrument has the function of hot swap, delay power off, replace the battery is no need to shut down, the battery has its own power display; |
| Charging mode | 1, universal adapter charging current power supply; |
| Collimator, filter |
1, special anti-radiation material collimator, inner diameter 3MM 2, no filter, save switching time, software to deduct background interference |
| Front-end test window | ≤9mm*5mm "Waist" type window |
| Test report sending mode | E-mail Transmission, Bluetooth synchronous transmission, software synchronous transmission |
| Data transmission mode | Wifi,Bluetooth |
| Maintenance mode | Remote software upgrade and diagnosis, on-site maintenance, diagnosis |
| User management | Multi-level user management function (can create multiple accounts, so that the person number corresponds, convenient management and data traceability) |
| Protective cover | Instrument is equipped with protective cover, with instrument calibration, anti-radiation, anti-damage functions (non-standard) |
| Material sensing and instrument status alerts |
1, the body has a material sensing function, can intelligently identify whether there is a test object in front. 2, intelligent status display light, through the intelligent status display light shows three working states (red flashing indicates that the detection is under way, green flashing indicates that there is no object to be measured in front, green long bright indicates that there is something to be measured in front) |
| Operating environment temperature and humidity |
humidness≤90% -20℃ - +60℃ |
| security |
1, the instrument side measurement value ≤0.2μSv/h (after deducting background) Note: The supplier shall provide in the response document a copy of the Handheld X-ray Analyzer (Leakage Ray) Report issued by the state-authorized legal metrology institution or the national testing center. 2, multiple safety protection, no test without radiation; 3, the radiation level at work is far lower than the international safety standard, and has no sample air test, automatic close X-ray tube function. |
| attachments |
Standard: 1, three defense military protection box, with waterproof, dustproof, shock absorption effect. 2, test software instrument end, PC end, mobile phone end 1 set each 3, rechargeable lithium battery battery *2 4, universal battery charging adapter *1 Optional accessories: pedestal test bracket, protective cover |
