HMP-6000A Fluorescent Magnetic Particle Flaw Detector

Large Image : HMP-6000A Fluorescent Magnetic Particle Flaw Detector

Product Details:

Place of Origin:	China
Brand Name:	Huatec
Certification:	ISO,CE
Model Number:	HMP-6000A

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in wooden box
Delivery Time:	30~60 days after payment
Payment Terms:	L/C, Western Union
Supply Ability:	10 sets per month

Contact Now

HMP-6000A Fluorescent Magnetic Particle Flaw Detector

Description

Product Name:	Fluorescent Magnetic Particle Flaw Detector	Model:	HMP-6000A
Detection Range:	Diameter (0~250mm), Length 1000mm (customized Length 0~6000mm)	Electrode Spacing:	0~1200mm (adjustable)
Magnetization Current:	0~6000A	Power Supply:	Three-phase Five-wire AC 380V 50Hz
Highlight:	Magnetic Particle Flaw Detector , Fluorescent Magnetic Particle Flaw Detector

HMP-6000A Fluorescent Magnetic Particle Flaw Detector

working principle

Magnetic powder flaw detection using the workpiece defect of leakage magnetic field and the interaction of magnetic powder, it USES the steel surface and near surface defects (such as cracks, slag inclusion, grain, etc.) permeability and steel permeability difference, these materials after magnetization of the magnetic field discontinuity distortion will occur, forming part of the magnetic flux leakage and the leakage magnetic field, using its leakage magnetic energy of defective parts of the adsorption characteristic of magnetic powder, Thus, the magnetic particles are attracted to form the magnetic particles accumulation at the defects -- magnetic marks, which, under the appropriate lighting conditions, show the location and shape of the defects

Usage

Fluorescent magnetic particle flaw detector is used to detect the surface and near surface of ferromagnetic workpieces (such as bolts, pins, bushings, gears, gear rings, crankshafts, etc.) due to forging, quenching, grinding, fatigue caused by cracks and slag and other subtle defects

Execution standard

Magnetic particle flaw detector:GB/T8290—2011

Magnetic particle inspection observation conditions:GB/T 5097-2020/ ISO 3059:2012

American Society for Materials and Testing: Magnetic Particle Test Method ASTM E1444-01

European Union and International Standards: DIN EN ISO 9934-2-2003

Technical parameters:

Detection range	diameter (0~250mm), length 1000mm (customized length 0~6000mm)
Inspection method	fluorescent or non-fluorescent magnetic particle inspection

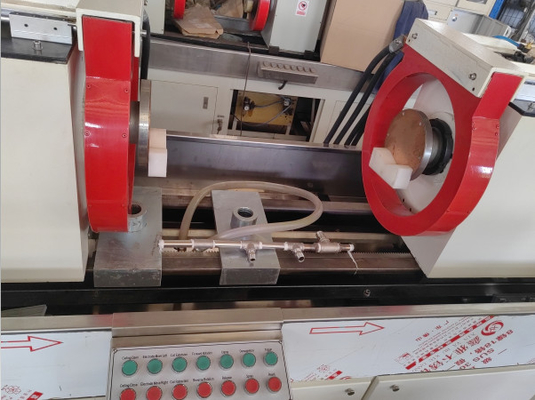

Magnetization mode	circumferential, longitudinal and compound magnetization
Electrode spacing	0~1200mm (adjustable), customized range (0~6000mm)
Clamping mode	manual/pneumatic clamping
Magnetization current	0~6000A
Demagnetization effect	remanence less than 0.3mT
Flaw detection sensitivity	A1 standard test piece (15/50) clearly displayed
Power supply	Three-phase five-wire AC 380V 50Hz

Circumferential magnetizing current(A)	6000
Longitudinal magnetization flux potential(AT)	20000

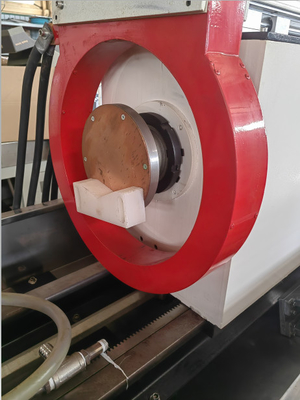

Optional coil inner diameter(mm)	350
Maximum electrode spacing is optional(mm)	1500

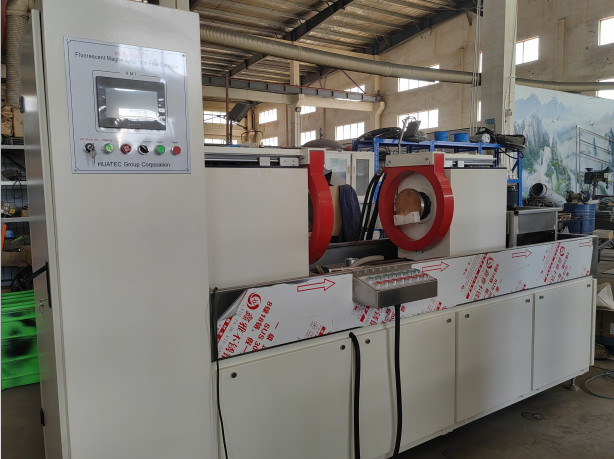

host	Split type (electrical control cabinet is separated from the main engine)
sensitivity	Type A sample (15/50) shows clearly
temporary load rate	≤20%
control mode	Manual/semi-automatic
interface(*)	Button/Touch screen
Clamping way(*)	Electric and pneumatic
Turn the way	electric
Alternating current magnetization method	Circumferential magnetization, longitudinal magnetization, compound magnetization
AC demagnetization mode	Automatic attenuated demagnetization
Rectifying way	Single-phase half wave, single-phase full wave, three-phase full wave
AC/DC magnetization method(*)	Circumferential AC magnetization/circumferential DC magnetization, longitudinal AC magnetization, circumferential AC longitudinal DC composite magnetization
DC demagnetization mode(*)	Attenuated demagnetization, ultra-low frequency demagnetization
UV lamp	Hanging type, hand-held type
Spray time	3"～6" / manual
Magnetization time	0.5"~2"/ time
Rotational observation time	5"～10"/week
Demagnetization time	3"~5"/time
Air supply	0.4-0.8MPa
Power	Three-phase five line,380V±10%,50Hz
Overall dimensions(mm)	length:1～1.5m+ Electrode gap

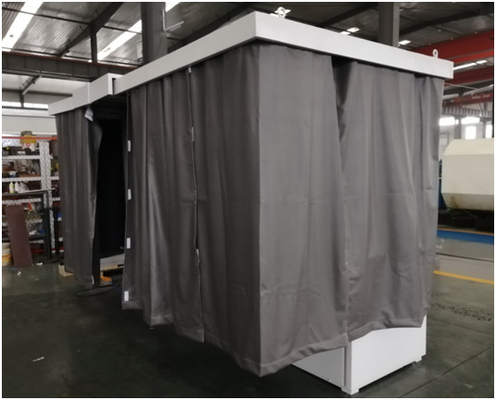

Overall dimensions(mm)	width:800~1200mm(Add the width of the darkroom:1800mm)
