Magnetic Electromagnetic AC Yoke HCDX-Y2

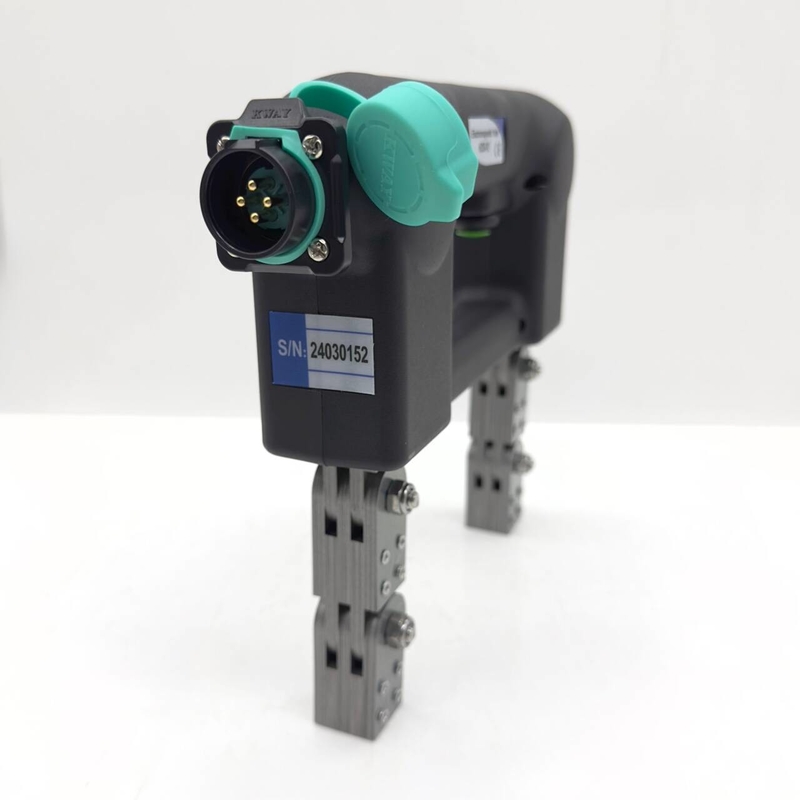

Large Image : Magnetic Electromagnetic AC Yoke HCDX-Y2

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	HCDX-Y2

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

Magnetic Electromagnetic AC Yoke HCDX-Y2

Description

Name:

Magnetic Electromagnetic AC Yoke

Standard:

BS.EN.ASTM

Customized Support:

OEM

AC Minimum Power Hoisting Power:

>4.5kg (44N)

Highlight:

Magnetic Electromagnetic AC Yoke

Electromagnetic AC Yoke

Magnetic Electromagnetic AC Yoke

Magnetic Electromagnetic AC Yoke HCDX-Y2

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch,power cord,mainboard,UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

Parameters index

Model Items		HCDX-Y2	HCDX-Y9
Electrical Requirements		AC110-115V 50/60Hz,AC220-230V 50/60 Hz,AC240V 50/60Hz
Waveform		AC
Tangential Field Strength		> 2kA/m at midpoint between legs / poles
Working temperature		-10～+40℃
Duty Cycle		50%, max on time is 90 seconds
Ingress Protection (IEC 60259)		IP54
Relative humidity		<80%
Sensitivity		ASTM E1444-05,ASME 2007 page number V
DC power pack		X	●
AC working current		AC2.2A
DC working current		X	DC 1.5A
Battery charging time		X	3小时
Battery working time		X	6h
Leg / Pole Span		0~220mm
Leg size		22*22mm

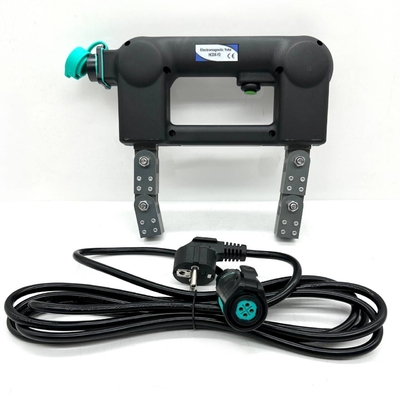

Power cord length		3M
Lifting Force	A C	≥7.1kg (69N)
	D C	≥22.2kg (216N)
Weight	Yoke	2.3kg
	DC Battery	X	0.6kg
