RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL

RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL
RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL

Large Image :  RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: RHL-TH130
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL

Description
Product Name: Digital Metal Hardness Tester Measuring Rangec: HLD(170~960)HLD
Measuring Direction: 360° Hardness Scale: HL、HB、HRB、HRC、HRA、HV、HS
Display: Dot Matrix LCD,128×64 Dots Battery Pack: 6V NI-MH
Highlight:

HRB Metal Hardness Tester

,

HRC Digital Metal Hardness Tester

,

HV Metal Hardness Tester

RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL



Advantages

  • Large screen(128×64 dot matrix LCD), showing all functions and parameters.
  • Test at any angle, even upside down.
  • Wide measuring range. It can measure the hardness of all metallic materials. Direct display of hardness scales HRB, HRC, HV, HB, HS, HL and three types of strength values immediately.
  • Seven impact devices are available for special application. Automatically identify the type of impact devices.
  • Large capacity memory could store 1000 groups (Relative to average times32~1 ) information including single measured value, mean value, testing data, impact direction, impact times, material and hardness scale etc.
  • Upper and lower limit can be preset. It will alarm automatically when the result value exceeding the limit.
  • Battery information indicates the rest capacity of the battery and the charge status.
  • User calibration function.
  • USB port with the PC humanity multi-functions data proceeding software.
  • Original imported high speed thermal printer support the immediate printing function. It can save data permanently.
  • NI-MH rechargeable battery as the power source. Charge circuit integrated inside the instrument. Continuous working period of no less than 150 hours (EL off and no printing).
  • Auto power off to save energy.
  • Excellent after-sale service system for high quality products---two years’ guarantee and all life maintenance. Easy to buy and comfortable to use.



Main Application

  • Die cavity of molds
  • Bearings and other parts
  • Failure analysis of pressure vessel, steam generator and other equipment
  • Heavy work piece
  • The installed machinery and permanently assembled parts
  • Testing surface of a small hollow space
  • Material identification in the warehouse of metallic materials
  • Rapid testing in large range and multi-measuring areas for large-scale work piece

Technical Specifications

  • Measuring range:HLD(170~960)HLD
  • Measuring direction:360°
  • Hardness Scale:HL,HB,HRB,HRC,HRA,HV,HS
  • Display:dot matrix LCD,128×64 dots
  • Data memory: 500 groups max.(relative to impact times 32~1)
  • Printing paper: width is (57.5±0.5)mm, diameter is 30mm
  • Battery pack: 6V NI-MH
  • Battery charger: 9V/500mA
  • Continuous working period:about 150 hours(With backlight off, no printing)
  • Communication interface:USB1.1
  • Outline dimensions:212mm×80mm×32mm

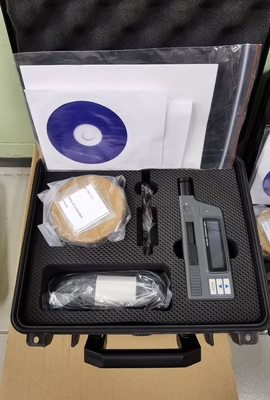

Configuration

  No. Item Quantity Remarks
Standard Configuration 1 Main Unit 1
2 D type impact device 1 Without cable
3 Standard test block 1
4 Cleaning brush (I) 1
5 Small support ring 1
6 Battery Charger 1 9V 500mA
7 Manual 1
8 DataPro software 1
9 Communication cable 1

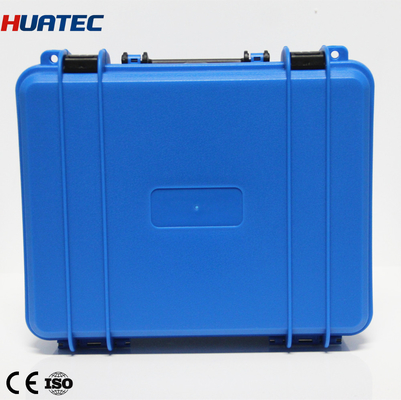

10 Instrument case 1
11 Calibration certificate 1
Optional accessories 12 Cleaning brush (II) 1 For use with G type impact device
13 Other type of impact devices and support rings   Refer to Table 3 and Table 4 in the appendix.

RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL 0

RHL-TH130 Digital Metal Hardness Tester Hardness Scales HRB HRC HV HB HS HL 1
