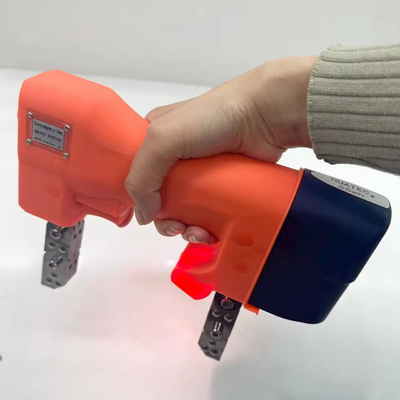

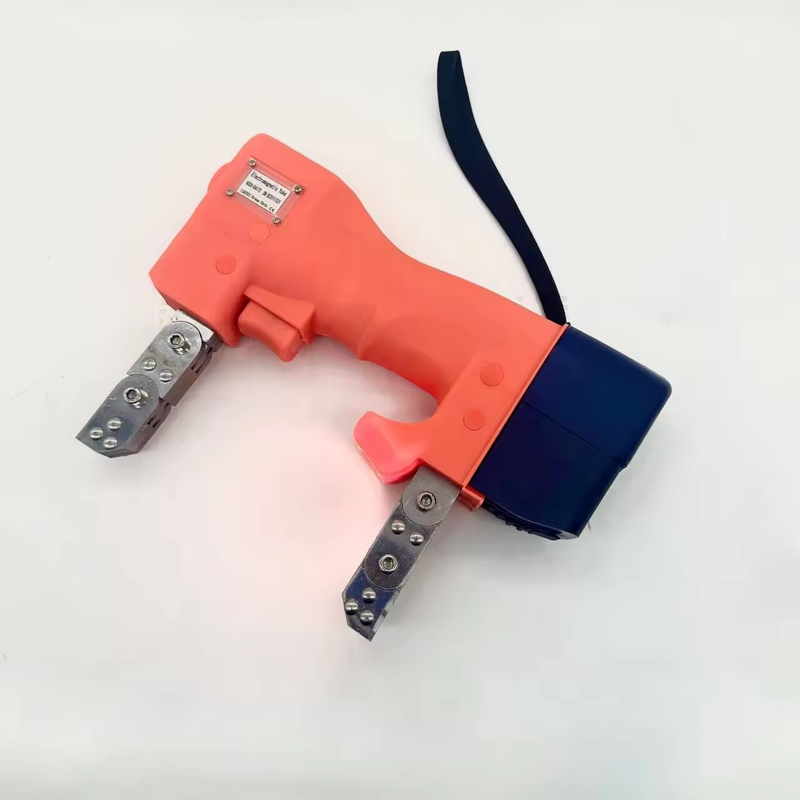

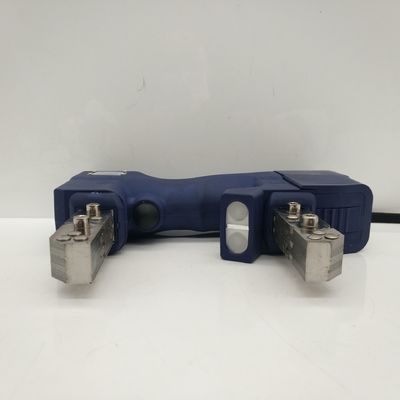

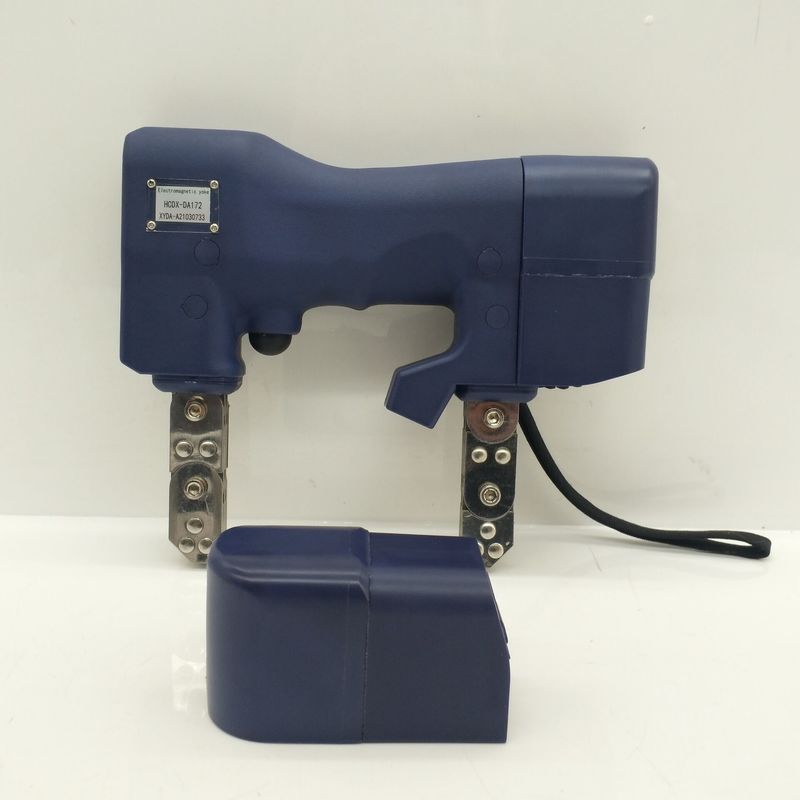

HCDX-DA172 Wireless Integrated AC Magnetization Magnetic Detection Miniature Yoke
Performance characteristics:
1. This product is a wireless integrated machine composed of a miniature yoke and an AC magnetization power supply, without any external wiring, integrating magnetic detection, power supply, lighting and other functions in one, compact structure, small size, light weight and easy to use. The defects such as disconnection and unsealed plug are solved.
2. This product can generate a stable AC magnetic field without an external power supply, ensuring detection sensitivity, and magnetic particle inspection is simple, convenient, efficient and safe.
3. This product integrates an inverted electromagnetic field intelligent constant magnetic chip, intelligently monitors and dynamically adjusts the electromagnetic intensity, so that the electromagnetic output is kept in the best state, and the lifting force and sensitivity are not affected by the battery power. Ensure the quality of inspection.
4. The instrument imitates ergonomic design and feels comfortable.
5. The instrument will automatically shut down if it is not working for a long time when it is turned on, which saves power and is safe.
6. The lithium battery can be replaced at will, which solves the worry of insufficient power supply.
7. The yoke probe of this product integrates a high-brightness LED white light source, which can be used for illumination and inspection image observation.
8. Intelligent multi-purpose switch, one-key operation of the whole machine, not only convenient to use, but also reduced failure points.
9. Intelligent no-load automatic identification and control function, avoiding the over-current and overheating of the instrument when it is no-load.
10. Intelligent soft start and soft stop functions, buffer the electrical shocks generated by the instrument during frequent starts and stops, and prevent electrical shocks from damaging components.
11. Automatic monitoring and protector for battery operation, in case of abnormal conditions, cut off the circuit in time to prevent accidents.
12. The power indicator indicates the power level in real time.
13. The special probe foot adjuster makes it convenient, easy and fast to adjust the probe foot.
14. Equipped with a dedicated work package, work easier and safer.
Technical Parameters:
| Lifting force (at any power level) |
≥70N |
| Sensitivity (at any battery level) |
A1-15/100 |
| Integrated electromagnetic probe volume |
165*148*45mm |
| Weight of integrated electromagnetic probe |
1.1Kg |
| Center distance between magnetic poles |
10～170mm |
| Lithium battery module volume |
52*45*86mm |
| Lithium battery module weight |
200g |
| White light intensity |
≥2000Lux |
| Work duty cycle |
100% |
| Full power working time |
2 days |
| Battery configuration method |
replaceable |
| Charging time |
4～6h |
| Dedicated charger |
16.8V/1A/100～240VAC |
Standard configuration:
Integrated yoke (without battery) 1
2 dedicated batteries
2 dedicated chargers
Foot adjustment tool 1
Oblique feet 1 pair
Dedicated work bag 1
Instruction manual 2 copies
Certificate of conformity 1 copy
Instrument case 1
Optional:
Lifting force test block
UV lamp
Magnetic particle sensitivity test piece
