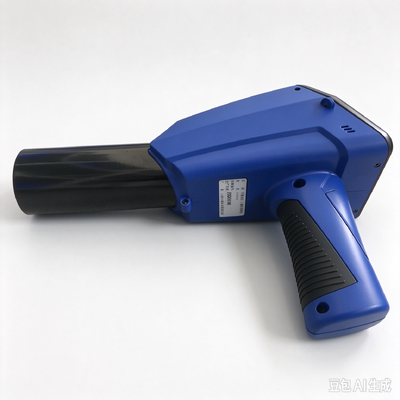

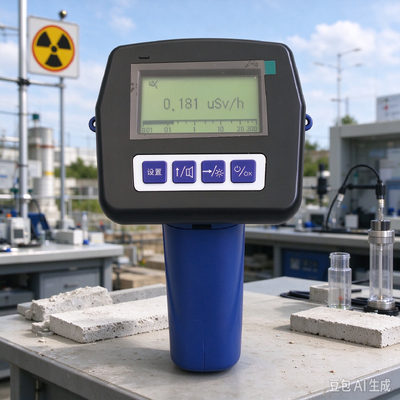

FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range

FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range
FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range

Large Image :  FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FJ-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

FJ-1200 Environmental Radiation Meter with NaI(Tl) Crystal Detector IP64 Protection and 0.01 ~ 200 µSv/h Measuring Range

Description
Humidity: <±10%，95%RH(35℃)
Highlight:

NaI(Tl) Crystal Detector Environmental Radiation Meter

,

IP64 Protection Gamma Radiation Detector

,

0.01 ~ 200 µSv/h Measuring Range Radiation Measurement Instrument

FJ-1200 Environmental Radiation Meter
Product Overview

The FJ-1200 Environmental Radiation Meter is designed for accurate and rapid measurement of ambient radiation background and low-level gamma radiation. Utilizing a sodium iodide detector and featuring a portable instrument case, this device is ideal for radiation measurement applications in nuclear power plants, nuclear facilities, environmental protection, and related fields.

Key Features
  • Measures X and gamma rays with high precision
  • High sensitivity using NaI(TI) crystal detection element
  • Graphic dot matrix LCD interface display with backlight
  • Membrane switch keys for easy operation
  • Continuously adjustable alarm threshold
  • Configurable scale factor for user calibration
  • Fast establishment time with display updates every second
  • Comprehensive alarm system including over-threshold, under-voltage, overload, probe fault, and high-voltage fault alarms
Technical Specifications
Radiation Type X, γ
Detector Φ50 × 40 mm, NaI(Tl) Crystal
Measuring Range 0.01 ~ 200 µSv/h
Display Range 0.001 ~ 200.000 μSv/h
Response Time < 3 seconds
Accuracy ±10% (200 µSv/h, 137Cs)
Energy Response 40 keV ~ 3 MeV
Alarm Functions Over-threshold, under-voltage, overload, probe fault, high voltage fault alarm
Temperature Performance <±10%, -10℃ to +50℃
Humidity Performance <±10%, 95% RH (35℃)
Power Supply 4 AA batteries, 1.5V/1Ah
Working Time 50 hours continuous operation
Protection Rating IP64
Dimensions 280 × 200 × 120 mm (L×W×H)
Weight <1200g
