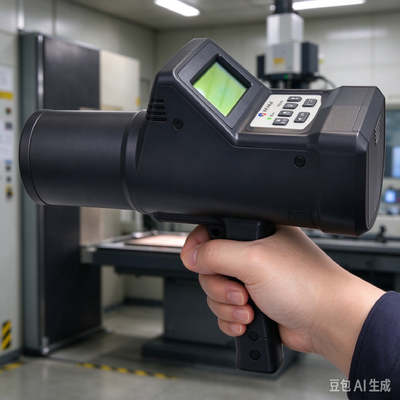

FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display

FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display
FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display

Large Image :  FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: ISO, CE, GOST
Model Number: FJ-310B
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

FJ-310B Environmental Gamma Dose Rate Meter with Sodium Iodide NaI (Tl) Crystal Detector and Sv Gy Switchable Display

Description
Display Unit: Sv And Gy Can Be Switched
Highlight:

Sodium Iodide NaI (Tl) Crystal Gamma Dose Rate Meter

,

Sv Gy Switchable Radiation Detector

,

1500 cps/μSv/h Sensitivity Environmental Radiation Meter

FJ-310B Environmental Grade X Gamma Dose Rate Meter
The FJ-310B Environmental Grade X Gamma Dose Rate Meter utilizes NaI crystal as detector, combined with photomultiplier tube and high-speed, low-power micro processor as data processing unit. Features backlight pattern dot matrix LCD display and film button operation for simple, intuitive use.
Technical Specifications
Parameter Specification
Radiation Type X, γ
Detector Sodium iodide NaI (Tl) crystal
Measuring Range 0.01-200 μSv/h
Display Range 0.001-200.000 μSv/h
Display Unit Sv and Gy can be switched
Cumulative Dose 0-1000kSv
Sensitivity Greater than 1500 cps/μSv/h
Accuracy ±15% (100μSv/h, 137Cs)
Energy Response 40keV - 3 MeV
Response Time < 1 second
Power Supply 4 AA 1.5V (No.5) batteries
Temperature Range -10℃ to +50℃
Humidity RH95% (35℃)
Instrument Size 210mm × 180mm × 110mm
Weight Approximately 1.3kg
Key Features
  • Ergonomic design with handle and straps for easy carrying and operation
  • Built-in LED fill light for detection in dim environments
  • Adjustable alarm thresholds with audible and visual alerts
  • Cumulative dose alarm threshold setting capability
  • Data retention during shutdown and battery changes
  • Cumulative dose can be cleared to zero
  • Manager calibration through scale factor modification
  • Backlit screen display for clear visibility
Applications
This instrument is suitable for radiation dose detection near medical radiation equipment, environmental background condition monitoring by environmental protection departments, non-destructive testing equipment radiation leakage detection, and environmental background measurement in residential areas near nuclear power plants. Meets radiation protection monitoring requirements in environmental protection, health, flaw detection, metallurgy, petroleum, chemical industry, commodity inspection, nuclear military industry, customs, and other industries.
The FJ-310B is a necessary lateral measurement instrument for radiation safety permit applications by users of radioactive sources and radiation devices. With high sensitivity, it provides significant safety assurance for radioactive workers. Instrument implementation standard: JJG521-2006 "χ, γ air kinetic energy (Absorbed dose) rate instrument for environmental monitoring".
