Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: SRT-6600
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

14 Parameters Digital Surface Roughness Tester With 128 X 64 OLED Dot Matrix Display Spectrogram

Description
Product Name: Surface Roughness Tester Memory: 100 Groups Of Original Data And Spectrogram Waveform
Parameters: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx; Display Screen: 128 X 64 OLED
Measuring Range: 160 μm Stylus Angle: 90°
Highlight:

14 Parameters Digital Surface Roughness Tester

,

Spectrogram Surface Roughness Tester

,

14 Parameters surface roughness machine

SRT-6600 Surface Roughness Tester 14 Parameters With 128 x 64 OLED Dot Matrix Display Spectrogram



Detailed Product Description

14 Parameters Surface Roughness Tester With 128 x 64 OLED Dot Matrix Display High accuracy Spectrogram



Functions and features:



1.Electromechanical integration design, small volume, light weight, easy to use;

2.Using DSP chip to control and data processing, high speed, low power consumption;

3.Large range, parameters Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

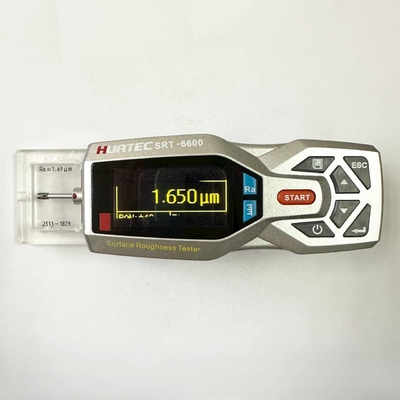

4.128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;

5.Display information rich, intuitive, can display all the parameters and spectrogram graphics;

6.Compatible with ISO, DIN, ANSI, JIS national standards;

7.Built-in lithium ion rechargeable battery and a charging control circuit, high capacity, no memory effect;

8.Residual quantity indicator icon, prompting the user to charge;

9.Display of the charging process instructions, the operator can understand the degree of charge

10.Working time more than 20 hours of continuous work

11.Large capacity data memory, can store 100 groups of original data and waveform.

12.Real-time clock settings and display, convenient data recording and storage

13.With automatic dormancy, automatic shutdown and power saving function

14.Reliable control motor to go dead circuit and software design

15.Measurement information display, menu prompt information, false information and switch machine and other tips that information;

16.Full metal shell design, sturdy, compact, portable, high reliability.

17.Can be connected to a computer and printer;



The performance index of sensor:

The detection principle Current induction
Measuring range 160 μm
Tip radius 5 μm
Tip material Diamond
Stylus force 4mN(0.4gf)
Stylus angle 90°
The guide head vertical radius 45mm



Technical parameters:

Item Description
The maximum driving trip 17.5mm/0.7inch
Indicating error Not more than ± 10%
Variation of indication Not more than 6%
The measured profile Roughness, waviness, the original contour
Parameter

Ra(0.005μm ~ 16μm),

Rz(0.02μm ~ 160μm),

Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx.

Filter RC,PCRC,Gauss,ISO13565
The sampling length L 0.25mm,0.8mm,2.5mm,8mm
Evaluation length L (1-5)l
Internal storage capacity 100 groups of original data
External input / output interface USB
Electric source Built-in rechargeable lithium ion battery or external power adapter

Outline dimension:143 x 55 x 42mm (host).

Weight: about 0.4KG (host).

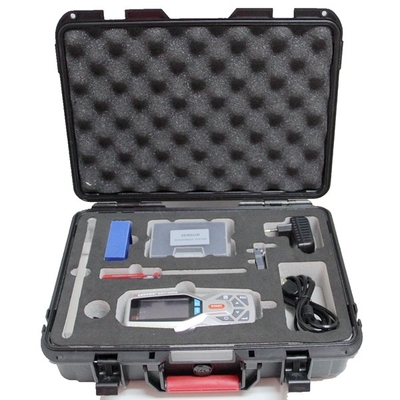

Standard delivery:

Host 1

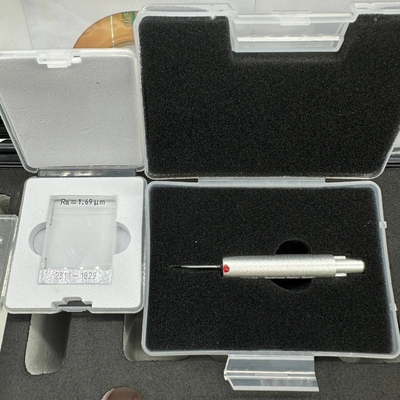

Standard sensor 1
Reticle temp-let 1
Template support 1
Movable support 1
Power adapter 1
USB charging cable 1
Instrument container 1
Manual, calibration certificate 1 each



Optional accessories

Sensor for curve/concave/groove surface, hole sensor, measuring platform, extension rod, calibration plate.
