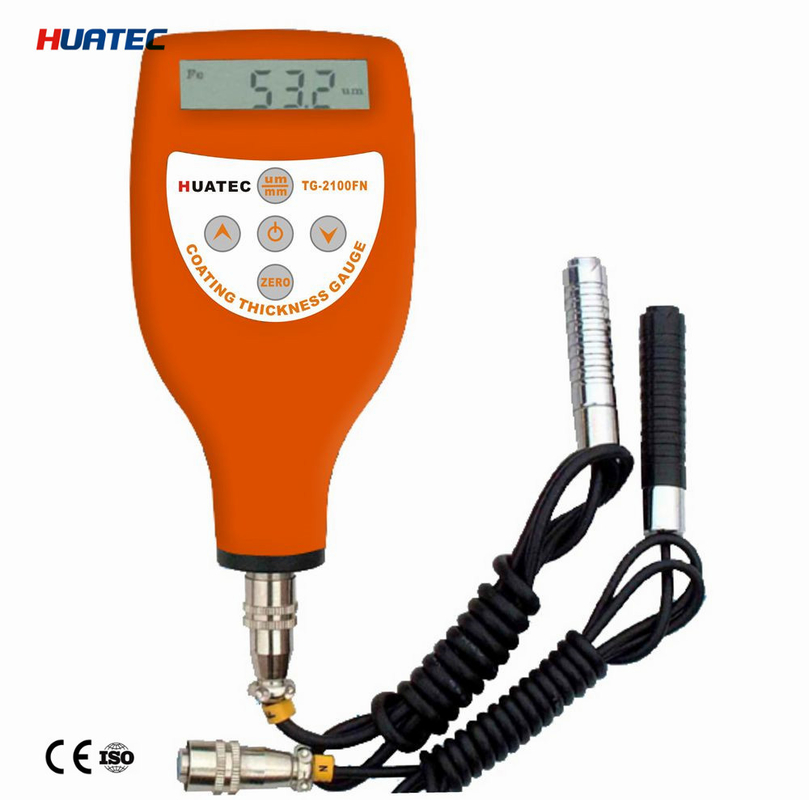

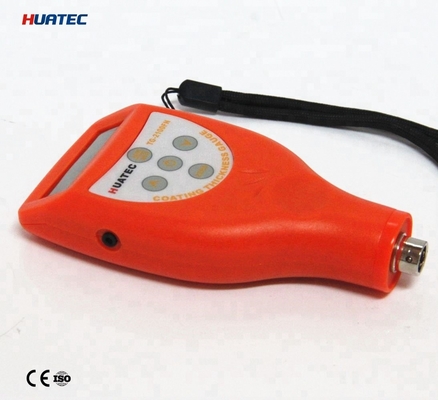

TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron

TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron
TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron

Large Image :  TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: TG-2100FN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

TG-2100FN Non Magnetic Layers Coating Thickness Gauge 5000 micron

Description
Product Name: Coating Thickness Gauge Function: TG-2100F (ferrous Substrate) TG-2100NF (non Ferrous Substrate) TG-2100FN (2 In 1, F & NF Type)
Measuring Range: Ferrous (F): 0-5000um/0-60mil Resolution: 0.1/1
Highlight:

Non Magnetic Layers Coating Thickness Gauge

,

5000 micron Coating Thickness Gauge

,

Coating Thickness Gauge

TG-2100FN Coating Thickness Gauge 5000micron



Application:
1. TG-2100F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. TG-2100NF can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)



Description:

Function TG-2100F (ferrous substrate) TG-2100NF (non ferrous substrate) TG-2100FN (2 in 1, F & NF type)
Operating principle magnetic induction/eddy current (F/NF)
Measuring range ferrous (F): 0-5000um/0-60mil, nonferrous (NF): : 0-3000um/0-36mil
Resolution 0.1/1
Accuracy ±1-3%n or ±2.5um
Min. measuring area 6mm
Min. sample thickness 0.3mm
Battery indicator low battery indicator
Metric/ imperial convertible
Power supply 4x1.5V AAA(UM-4)battery
Operating conditions 0-+45℃(32℉-104℉),≤90%RH
Dimensions 126x65x27mm
weight 81g(not including battery)
Optional accessories other range 0-2000um to 15000um

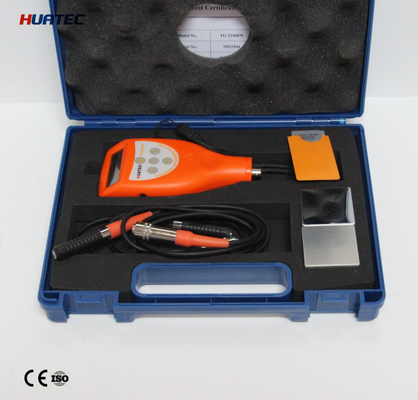

Standard Delivery of TG2100FN:
Main unit (5000um) 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)

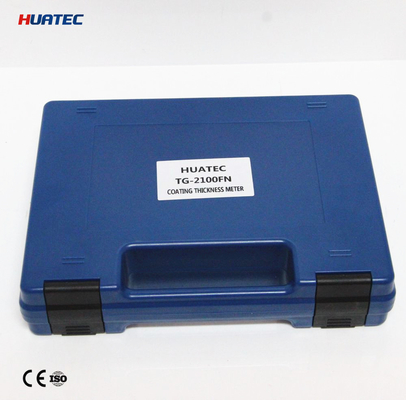

Carrying case 1
Instruction manual 1

Optional Accessories
Cable and software for RS-232C
Customized testing range
