SRT-6900 Hand-held Tablet Computer Wireless Surface Roughness Gauge

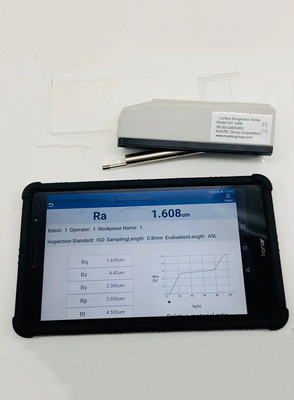

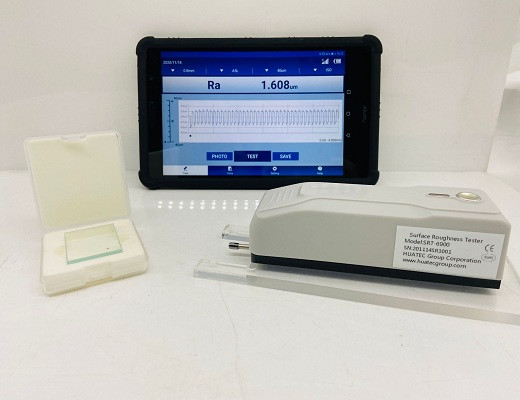

Large Image : SRT-6900 Hand-held Tablet Computer Wireless Surface Roughness Gauge

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	SRT-6900

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	USD1035-USD1170/SET
Packaging Details:	aluminum alloy box+Outer carton packaging
Delivery Time:	7-10 working days after receipt of your payment
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10 Sets/Month

Contact Now

SRT-6900 Hand-held Tablet Computer Wireless Surface Roughness Gauge

Description

Resolution (Ra):	0.001μm	Filter:	RC、GAUSS、 PC-RC、D-P
Cut Off:	0.25mm, 0.8mm, 2.5mm	Max Running Length:	17.5mm/0.7 Inch
Min Running Length 1.3mm/0.052 Inch:	1.3mm/0.052 Inch	Accuracy:	≤±10%
Wireless Communication Distanceqa:	10 Meter
Highlight:	Hand-held Surface Roughness Gauge , Wireless Surface Roughness Gauge

SRT-6900 Hand-held Tablet Computer Wireless Surface Roughness Gauge

Features:

ARM processor to offer higher speed, low power consumption and fast accurate

measurement.

Tablet computer with clearly user interface (Eight inch screen 32GB storage

capacity), wireless operation.

4.0 Blue tooth function of wireless outputting.

According to the actual needs of customers, the industry measurement methods and

conditions are recommended, the information cloud updated service.

Built-in rechargeable lithium battery, low power reminder.

With their wide range of probes, provide even greater measurement flexibility.

Only one button to test, Data results are transmitted automatically.

The measurement waveform can be amplified and reduced.

Customize max 23 parameters (RPK,RVK,RK,RA, etc. this kind of readings is used for

automotive machine work).

Main Technical Specifications:

Parameters	Ra,Rz,Ry,Rq,Rt,Rp,Rv,Rmax,R3z,RSk,RS,RSm,Rmr
Measuring Range	Ra:0.025-12.5μm
Measuring Range	±20μm,±40μm,±80μm
Display	Ra,Rq:0.005-16μm；Rz,Ry,Rt,Rp,Rv,Rmax,R3z:0.02-160μm；RS,RSm:1mm；Rmr:0-100%(%Rt)；Rsk:0-100%
Resolution (Ra)	0.001μm
Filter	RC,GAUSS, PC-RC,D-P
Cut Off	0.25mm, 0.8mm, 2.5mm
Max Running Length	17.5mm/0.7 inch
Min Running Length	1.3mm/0.052 inch
Accuracy	≤±10%
Wireless communication distance	10 meter
Instrument Size	135mm * 43mm * 44mm

Standard Delivery

Main Unit	1 pc
Standard Stylus - TS100	1 pc
Calibration block and support	1 pc
USB Cable	2 pcs
AC/DC Adaptor	1 pc
Tablet Computer	1 pc
