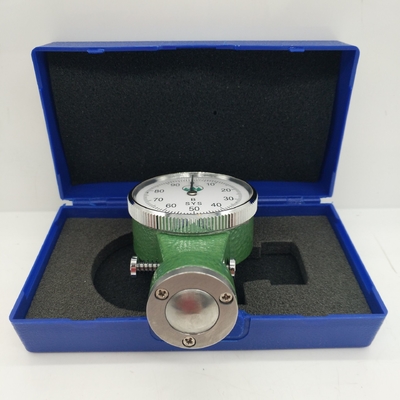

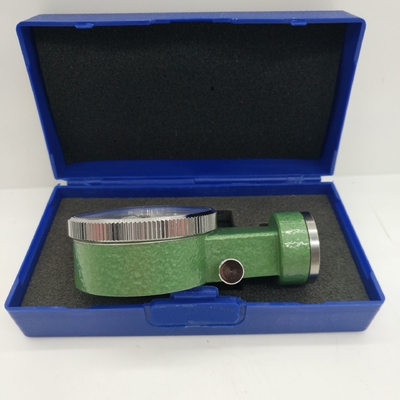

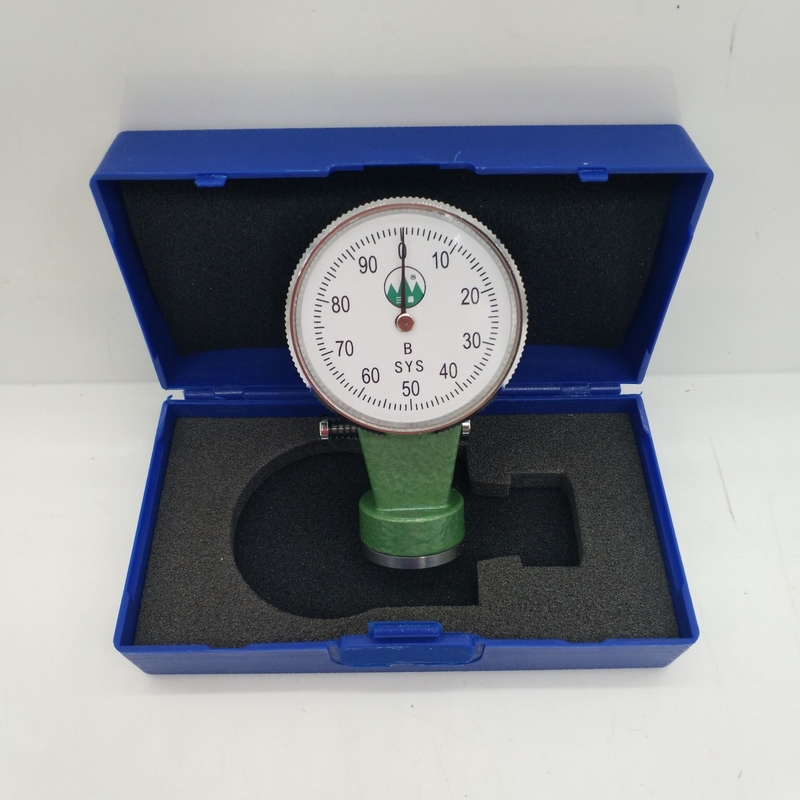

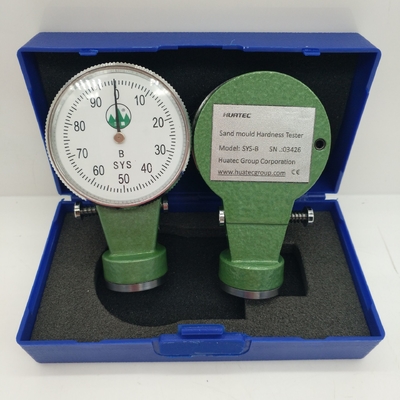

Green Sand Surface Mould Hardness Tester Sand Surface Hardness

Green Sand Surface Mould Hardness Tester Sand Surface Hardness
Green Sand Surface Mould Hardness Tester Sand Surface Hardness Green Sand Surface Mould Hardness Tester Sand Surface Hardness Green Sand Surface Mould Hardness Tester Sand Surface Hardness Green Sand Surface Mould Hardness Tester Sand Surface Hardness Green Sand Surface Mould Hardness Tester Sand Surface Hardness

Large Image :  Green Sand Surface Mould Hardness Tester Sand Surface Hardness

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: SYS-B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: in high quality carton
Delivery Time: 5~8 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs per month

Green Sand Surface Mould Hardness Tester Sand Surface Hardness

Description
Product Name: Hardness Tester Compression Stroke: 2.50mm
Maximum Load: 980g Preload: 50g
Highlight:

Mould Hardness Tester

,

Green Sand Surface Mould Hardness Tester

,

Sand Surface Mould Hardness Tester

Green Sand Surface Mould Hardness Tester Sand Surface Hardness



1. Overview

Three types of sand surface hardness testers, A B C, are used to measure the surface hardness of green sand molds.

Its structure is composed of rack pressure head (1) meter head (2) watch case (3) force spring (4) drive gear (8) rotary gear (14) pointer (15) adjusting ring (16) and so on.

Type A: Suitable for surface hardness testing of fine sand molds (cores) molded by hand or mechanical low and medium pressure. Type B is suitable for surface hardness testing of fine and coarse sand molds (cores) molded by hand or mechanical low and medium pressure. Type C is suitable for testing the surface hardness of sand molds in high pressure molding.



2. Technical specifications and parameters

I Precision

When the pointer is any value, the corresponding force tolerance of the indenter is ±5%

The pointer returns to the O position and the tolerance is +-1 degree.



II Dimensions 90x55x28

Note: The maximum load is the force required to press the indenter to the level of the gauge head (2).

Parameters Type A Type B Type C
Compression stroke 2.50mm 2.50mm 2.50mm
Maximum load 237g 980g 1500g
Preload 90g 50g 180g



3. Principle

According to the principle that the force of the spring and the stroke are linear, the stroke of the spring is indicated by the surface pointer through a set of gears and racks. The unit of sand surface hardness is (g/mm2), but it is customary to use hardness instead of unit. Because their values ​​are related and consistent, that is, if the unit value is large (g/mm2), the corresponding degree value is also large.



4. Use and adjustment

I Adjust the O position. When the pointer (15) is not at the O position, turn the adjustment ring (16) to align the pointer (15) with the O position. II When using, press the hardness tester firmly on the tested sand surface (the axis of the hardness tester should be perpendicular to the surface of the sand mold), so that the surface of the hardness tester head (2) is in close contact with the tested sand surface, and the pointer is also When it stops at a certain value, press the locking pin (18) to lock it, read the measured value, and then loosen the locking pin (18) to return the pointer (15) to the O position.

III When measuring, you can test 3-5 times on each measuring part, and then calculate the average number, which is the hardness value of the part.



5. Repair and maintenance

I. Do not open the watch cover (13) and the screws on the back of the watch case at will to prevent sand and dust from falling into it, which will affect its accuracy.

II. When used or placed, it is not subject to severe vibration to prevent the instrument from malfunctioning and affecting use.

III. If there is sand in the gap between the indenter (1) and the meter head (2), carefully unscrew the 3~M2 screws, remove the meter head, remove the sticky sand, and install it as it is (do not pull out the indenter)

Green Sand Surface Mould Hardness Tester Sand Surface Hardness 0
