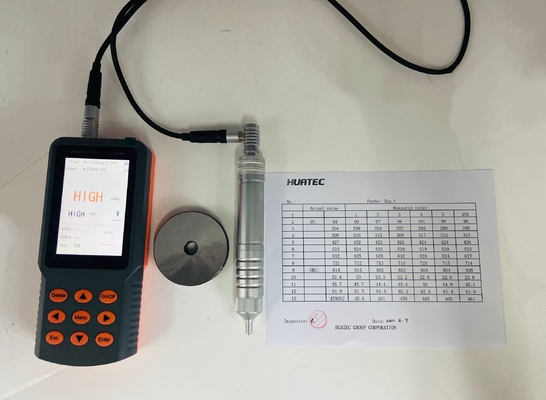

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring
Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

Large Image :  Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: HUH-6M
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~10 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring

Description
Product Name: Ultrasonic Hardness Tester Model: HUH-6M
Main Hardness Scale: HV Testing Range: HV50~1599, HRC20~68, HB85~650
Highlight:

NDT Instrument Ultrasonic Hardness Tester

,

High Accurate Ultrasonic Hardness Tester

,

Portable Ultrasonic Hardness Tester

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring





1. Functional Characteristics

  • Main hardness scale: HV

Convertible hardness scale: HRC, HRA, HRB, HBW

  • In multi-points calibration mode, any hardness scales can be chosen.
  • Testing range: HV50~1599, HRC20~68, HB85~650
  • Test direction:Support 360° test, as long as the angle between the indenter and the surface doesn’t exceed 90° ± 3°.
  • Battery: 3.6V, 3000mAh lithium battery
  • Endurance: 10 hours
  • Test data can be exported to computer terminal.
  • Norms: DIN 50159-1-2008; ASTM-A1038-2005; JB/T 9377-2010; JJG-654-2013;JJF 1436-2013.
  • High accuracy----±4%HV, ±4%HB, ±1.5HR.
  • Tiny test indentation---- requires a high-power microscope to see.
  • Little damage to the workpiece.
  • High test speed----output test results in 1s at the soonest.
  • New appearance design, innovative sculpt, convenient to hold and good craft.
  • Full English display, menu-type operation, few keys, simple and convenient to operate.
  • 3.5 inches large LCD screen with 320×480 color graphics dot matrix, beautiful font and graphics, rich information and clear display.
  • Directly display the current measured value, cumulative measured value, maximum value, minimum value, average value and conversion value.
  • 50 sets of data storage.
  • Simple calibration----5 sets of one-blockcalibration data, 1 set of default calibration data and 5 sets of multi-blocksscalibration data can be stored in the host.
  • For materials with different elastic constants, just anone-block calibration is required to adapt to the new material.
  • For unknown material or material without conversion table, the hardness scale can be arbitrarily selected for multi-points calibration to eliminate the systematic error brought by the conversion table.
  • Easy to test on assembly line.

2.Accuracy

Model Ultrasonic Hardness Tester
Test range:

HV50-1599,HRC20-68,HB85-650,HRB41-100,HRA61-85.6,

HS34.2-97.3,MPa255-2180

Accuracy ±4%HB,±1.5HR,HV please refer to the table below



Accuracy

Hardness value Maximum allowable relative error of hardness tester %
HV10 HV5 HV2 HV1
<250HV 4 4 4 4
250HV-500HV 4 4 4 4
>500HV-800HV 4 4 5 5
>800HV 4 4 6 6





3.Application

  • Hardness test of flange edge and gear root stamping parts, mold, thin plate, face-hardened gear tooth, gear groove and taper part
  • Hardness test of axle and thin-wall pipes and vessels
  • Hardness test of wheels and turbine rotors
  • Hardness test of bit edge
  • Hardness test of welding parts
  • Measure the depth of deep hole with certain aperture, concave and convexwith large radians, and irregular plane
  • Hardness test of most ferrous and nonferrous metals and their alloys in industrial production
  • Hardness test of thin coatings
  • etc.

4. Workpiece Requirements for UCI method

Because ultrasonic hardness tester is a kind of Vickers hardness tester, the requirements of Vickers hardness tester are also met by ultrasonic hardness tester.



5.Operating Conditions

  1. Temperature: -10℃~40℃
  2. Humidity: ≤ 90%RH
  3. No strong electromagnetic interference

6. Specification

Battery:3000mAh/3.7V

Host size: 170mm*70mm*20mm

Probe size: Ǿ22mm*150mm

Weight: 650g

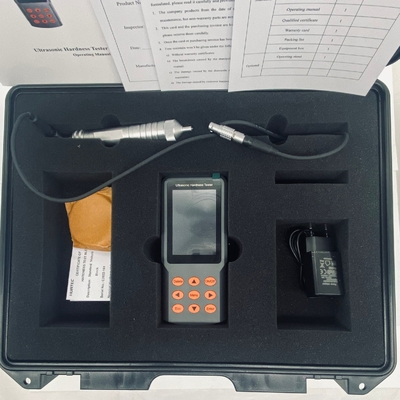

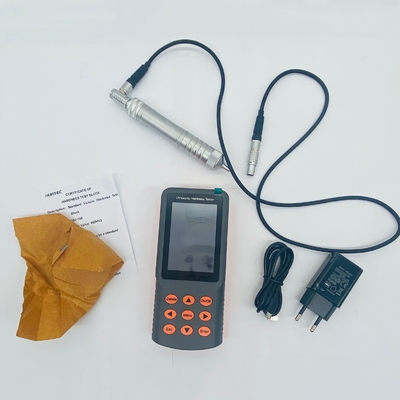

7.Packing List

 Standard Delivery

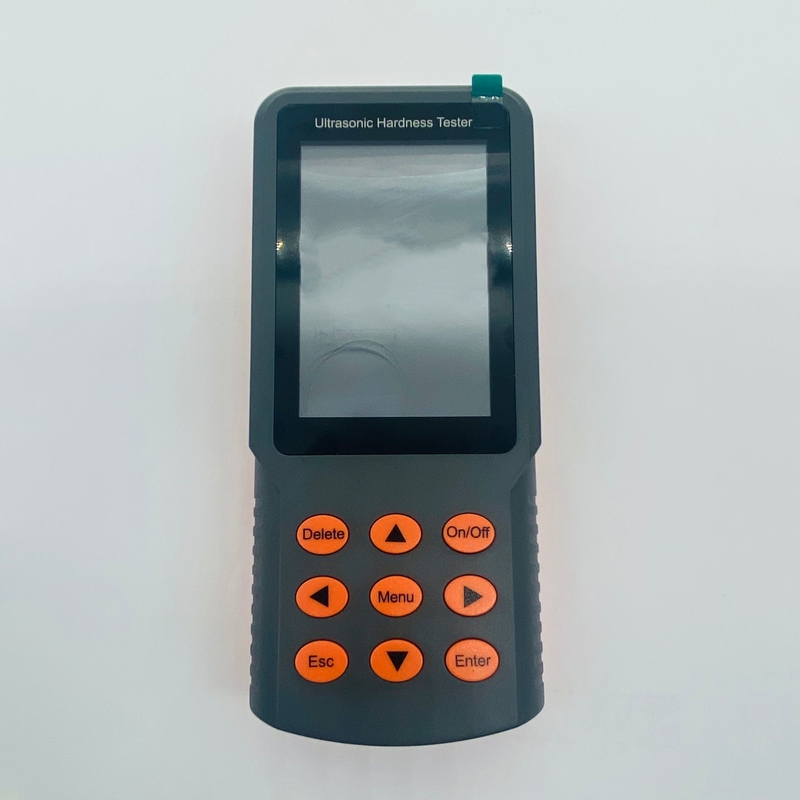

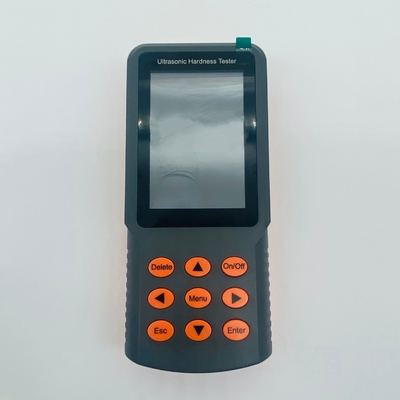

  • Host
  • Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring 0 Manual probe (2kgf)
  • Probe connection cable
  • 5V ac power adapter
  • USBcable
  • Standard hardness workpiece
  • Equipmentbox
  • Operating manual
  • Certificate
  • Warranty card
  • Packinglist

 Optional Accessories

  • Probe (1kgf, 3kgf, 5kgf, 10kgf)
  • Operating platform

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring 1

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring 2

Portable Ultrasonic Hardness Tester NDT Instrument High Accurate Precision Measuring 3
