HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization

HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization
HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization

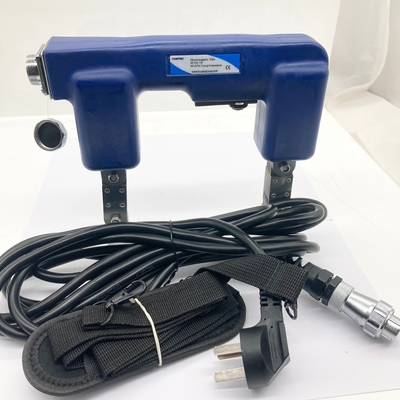

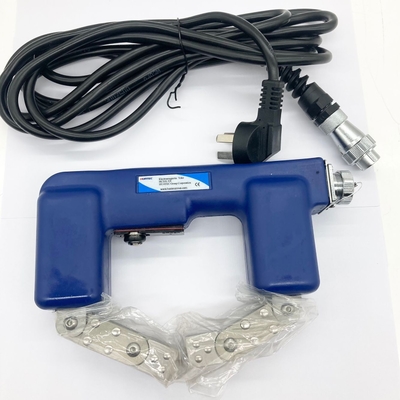

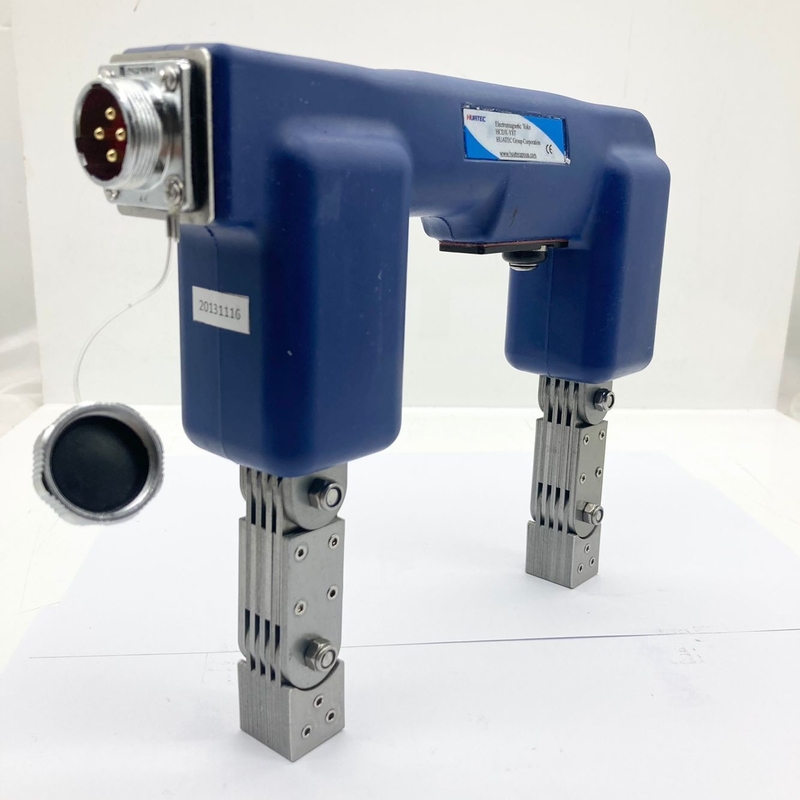

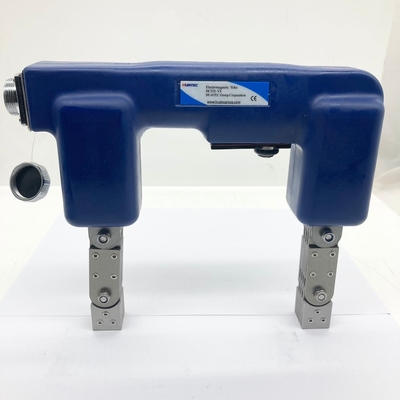

Large Image :  HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: HCDX-Y8
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in high quality carton
Delivery Time: 5~8 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets per month

HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization

Description
Product Name: Magnetic Yoke Flaw Detector Power Supply: AC:220V/50Hz
Lifting Power: ≥4.5Kg Temporary Load Rate: On 5 Seconds, Off 5 Seconds, Continuous Use Of More Than 4 Hours
Power Cord Length (spring Wire): 4m Size Of Magnetic Foot Contact Surface: 20×21mm
Highlight:

Magnetic Particle Flaw Detector

,

Magnetic Yoke Flaw Detector

,

Local Magnetization Flaw Detector

HCDX-Y8 Magnetic Yoke Flaw Detector Magnetic Particle Flaw Detection Local Magnetization



HCDX-Y8 is our latest developed AC yoke. It is used for magnetic particle flaw detection and local magnetization of the workpiece. The machine is compact and durable, and is one of the lowest weight and largest span AC yoke on the market. Lifting force and other indicators meet the requirements of GB/T 15822.3-2005/ISO 9934-3:2002, ASME V and other standards.



1. Machine structure

Item Part Number Item Part Number
1 Yoke 5 Power Cable
2 Inductive LED lighting 6 Aviation connector cover connection cable
(Optional accessories)
3 Yoke foot 7 Aviation coupling cover
4 microswitch 8 AC Power Cable



















2. Usage method
Connect the power cable to the host and plug the AC plug into the 220V power socket.


Place the two magnetic poles of HCDX-Y8 on the surface of the detected object, and apply certain pressure to make the two magnetic poles in good contact with the detected object. Press the button switch, turn on, start magnetization, loosen, magnetization ends. When the yoke switch is turned on, the magnetic powder is applied to the surface of the detected object (dry, wet, fluorescent magnetic powder can be applied).


If the surface to be examined is too wide, it shall be magnetized in sections, and the effective parts between the sections shall overlap to a certain extent.


Rotate the movable joint between the magnetic feet, and the distance between the magnetic feet can be adjusted between 45mm and 225mm.


When using should pass 5 seconds off 5 seconds, can be used continuously for 4 hours.



3. Technical parameters

3.1 Yoke

Item Indicator Item Indicator
Yoke Weight 2.35Kg Sensitivity The 30/100A test piece is clearly displayed
Power supply AC:220V/50Hz Lifting power ≥4.5Kg
Electric current No-load 1.4A Temporary load rate On 5 seconds, off 5 seconds, continuous use of more than 4 hours
Load 1.0A Temperature rise Handle surface temperature ≤40 ° C
Magnetic electrode distance 45~225mm Insulation strength >2MΩ
Power cord length (spring wire) 4m Size of magnetic foot contact surface 20×21mm




4. Configure the table

Iiem Name Quantity
1 Host 1
2 220V Power Cable 1
3 Yoke strap 1
4 Yoke backpack 1
5 Hex key 3mm 1
6 Manual 1
7 Calibration certificate 1

Note: This machine can be optional charger, battery, cable, optional can be converted into DC yoke. Optional induction LED lighting and inclined magnetic feet.
