32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage

32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage
32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage 32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage

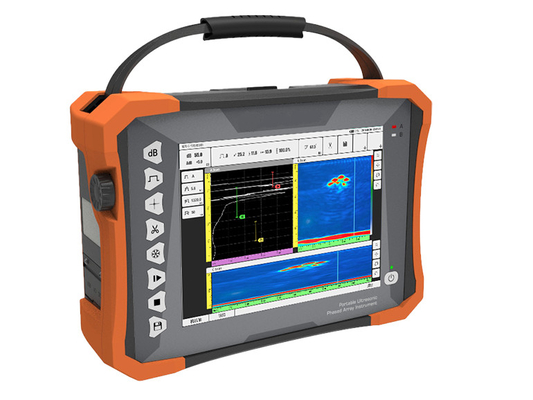

Large Image :  32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage

Product Details:
Place of Origin: China
Brand Name: HUATEC
Certification: CE
Model Number: HPA-620
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD42090/set - USD47580/set
Packaging Details: Outer carton packaging
Delivery Time: 20-30 working days after receipt of your payment
Payment Terms: T/T, Western Union,Paypal, L/C

32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage

Description
Display: 10.4-inch Touch Screen Storage: Internal: 64GB; External: USB Flash Disk
AC: 100V~240V 50Hz/60Hz Ingress Protection Rating: IP65
Highlight:

Portable Ultrasonic Flaw Detector

,

Phased Array Ultrasonic Flaw Detector

,

IP65 Ultrasonic Flaw Detector

HPA-620 Portable 32:128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector

The HPA-620 is a portable 32:128PR Phased Array flaw detector.

It is equipped with the conventional ultrasonic inspection module, TOFD module, conventional Phased Array module, supporting the concurrent scanning of TOFD and Phased Array, as well as dual-array probes. Featuring a water & oil-proof touch screen and full-course testing data recording capabilities, the HPA-620 is an advance intellective Phased Array flaw detector.



Parameter:

Channels
Mode PA mode UT mode TOFD mode
Number 32:128 2 2
Physical Parameter
Display 10.4-inch touch screen
Import 1 IPEX, 4 C5
I/O Ports 2 USB 3.0 (HOST), 1 USB 2.0 (HOST)
DP(DisplayPort) (can transfer to HDMI)
WIFI
LEMO 1B encoder port
TTL I/O port
GPS Yes
Storage Internal: 64GB; External: USB flash disk
Weight 5kg (without battery)
Dimensions 350 mm×250 mm ×130 mm
(L×W×H)
AC 100V~240V 50Hz/60Hz
DC 13.5V
Battery Type Lithium battery
Battery Capacity Double battery, each<100Wh
Battery Life ≥4.5h
Temperature Operating Temperature Range:-10℃~40℃
Storage Temperature Range:-20℃~60℃
Ingress Protection Rating IP65
UT
PRF 25Hz~10kHz
Transmitter Voltage 75V~250V (50Ωload)
Pulse Width 30ns~1000ns, with step as 5ns
Damping 400Ω, 80Ω
Sampling Rate 100MHz
Bandwidth 0.5MHz~20MHz (-3dB)
Gain 0.0dB~110.0dB
Sensitivity Surplus ≥60dB (narrow bandwidth), ≥52dB (broad bandwidth) (2.5P20 transducers, 200mmφ2flat-bottomed holes)
Vertical Linearity Error ≤3%
Horizontal Linearity Error ≤0.1%
Resolution ≥26dB(2.5P20)
Dynamic Range ≥30dB
Filter High-pass, low-pass and multiple narrow band-pass
Rectification RF (TOFD mode), full wave, half wave +, half wave –
Channels 2 channels
Maximum Coverage 10000mm (in steel longitudinal wave)
Gate A/B/G
Gate Star Full range
Gate Width Gate start to full range
Gate Threshold 1~99%
Alarm Sound/Optical
Measurement Spot Front/Peak
TCG 16
Phased Array
Channels 32:128
Max Aperture 32 elements
Max Elements 128 elements
Focus Law ≥1024
Scanning Angle -89°~89°
Calibration Velocity, Delay, TCG,ACG, Encoder
Test Volume 1000mm
Min Angle Increment 0.1°( auto-adjustment)
Sampling Rate 100MHz, 10bit
Rectification Full wave
A-scan Screen Height 800% of screen height (Maximum)
Tunable Analog Gain 80dB
Max PRF 20kHz
Transmitter Voltage 20V~110V(50Ω load)
Pulse Type Bipolar square wave
Pulse Width 30ns~1000ns, step as 5ns
Bandwidth 0.5MHz~20MHz(-3dB)
Filter High-pass, low-pass, multiple narrow band-pass
Triggering Encoder, time-based
Measurement Spot Front/Peak
Readout Amplitude; beam path; horizontal; depth
Measurement Resolution 0.5mm
Scan Mode L/S/C/D –scan
Scan Length ≥15 meters
Scan Speed ≥30mm/s



Features:

Inspection Channels

  • 38:128PR Phased Array module
  • Concurrent scanning of TOFD and Phased Array
  • Supports dual-array probes
  • 2-channel TOFD; 2-channel conventional ultrasonic testing

The functionality of the HPA-620 offers a great satisfaction of users’ various demands.



Phased Array Module

  • Conventional butt weld inspection; Conventional butt weld inspection (with concurrent scanning of TOFD and Phased Array)
  • Conventional C-scan inspection for plates
  • Conventional inspection of bolts
  • Conventional corrosion inspection
  • TKY inspection

TOFD module

  • Procedure parameter setup; probe and wedge parameter setup

Users are able to calculate relevant parameters based on the probe and procedure parameters, including: PCS, scanning coverage, bottom coverage, beam included angles.



Display

  • The HPA-620 is fitted with a 10.4-inch industrial-grade TFT screen, with touchable operation, providing optimal displays under strong light and outdoors.

Procedure Design

  • Offering process simulation models, the HPA-620 can also build a model by importing objects’ dimensions via CAD software. Customize users’ dedicated inspection process and provide one-stop service for the full-range of solutions.

Scope:

Ÿ Conventional Weld Inspection

Ÿ Phased Array C-scan inspection of Composite materials

Ÿ Inspection of Bolts and Screwed Pipes

Ÿ Inspection of PE joints

Ÿ Solution of Small-diameter Tube Weld Inspection

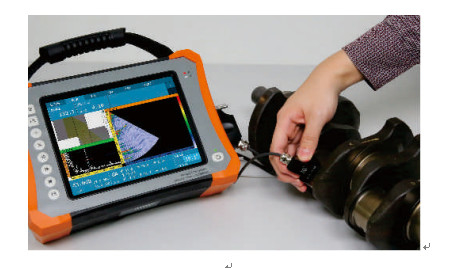

32 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage 032 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage 132 128PR Phased Array TOFD Scanning Ultrasonic Flaw Detector HPA-620 Portable With IP65 Rating And External Storage 2
