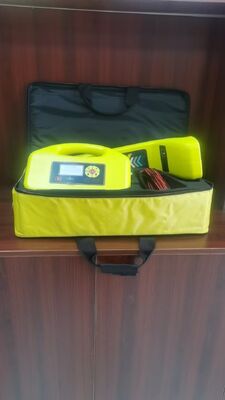

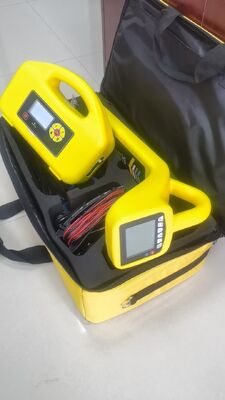

Underground Pipeline Detector Detect Location Direction And Depth of Underground Pipelines

Underground Pipeline Detector Detect Location Direction And Depth of Underground Pipelines

The HD-18A underground pipeline detector is meticulously crafted by HUATEC. It integrates advanced technologies such as ultra-narrowband filters and has excellent detection performance, including strong anti-interference capabilities , accurate positioning, and depth measurement. It is suitable for the detection and inspection of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments, and is one of the essential instruments for pipeline maintenance units.

Features:

1. It adopts a 10W wideband transmitter, which is suitable for detection in various environments;

2. Both the receiver and transmitter are powered by lithium battery packs, which are energy-saving, environmentally friendly , and have an ultra-long working time ;
3. The monitor has a backlight function, which can be used for emergency rescue at night;

4. Features left and right arrow indicators for quick pipeline location;

Technical parameters

(a) Receiver Positioning accuracy: ±5% of depth (without interference from adjacent pipelines)

Depth measurement accuracy: ±5% of depth (without interference from adjacent pipelines)

Current measurement accuracy: ±5% of actual current (without interference from nearby pipelines)

Depth measurement range: <6 meters

Working modes: Valley mode, Peak mode, Wide peak mode, Peak arrow mode

Operating frequencies: 50Hz, 512Hz, 1kHz, 33kHz, 83kHz

Menu settings: Chinese and English menu options.

Operating temperature: -20℃～+50℃

Battery: 7.4V lithium battery

External dimensions: 595mm × 136mm × 238mm

Weight: 1.6Kg (including battery)

(II) Transmitter

Output power: 10W

Operating frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz

Operating modes: Automatic switching between direct connection, induction, and clamp modes.

Battery: 14.8V built-in lithium battery pack

Operating temperature: -20℃～+50℃

External dimensions: 348mm × 228mm × 84mm

Weight: 2.5Kg (including battery)

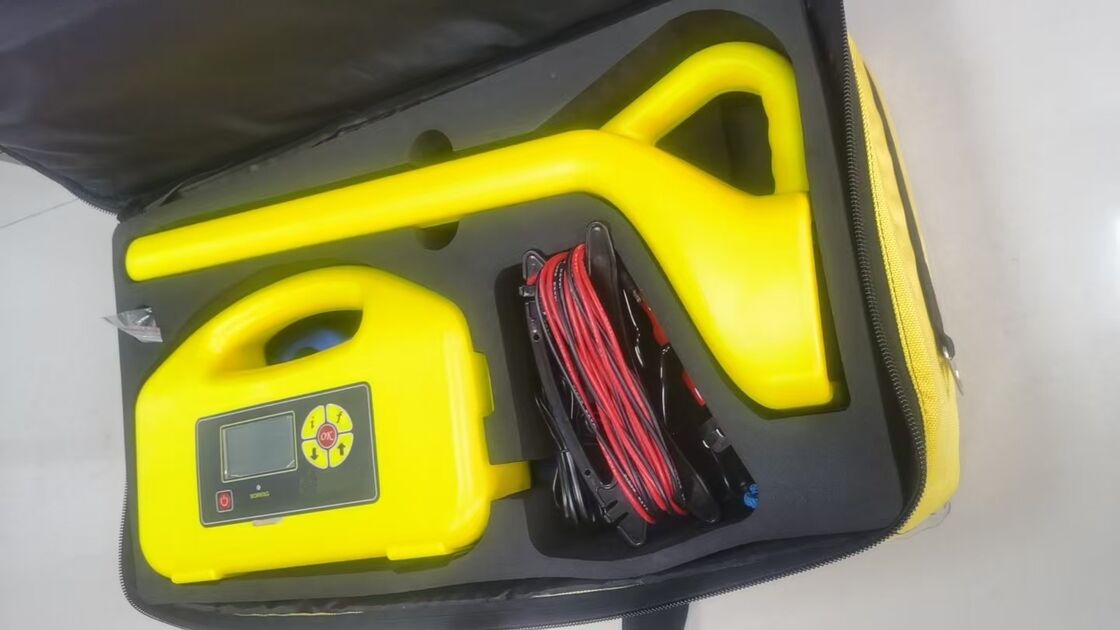

HD-18A Pipeline Detector Main Accessories Configuration

(a) Standard configuration

1pc HUATEC HD-18A receiver;

1pc HUATEC HD-18A transmitter;

1pc induction clamp; 1pc output cable;

1pc grounding rod;

2pcs chargers;

1pc Connect magnet;

1pc 220V power cord;

1pc instruction manual;

1pc instrument packaging bag.

1pc HUATEC calibration certificate
