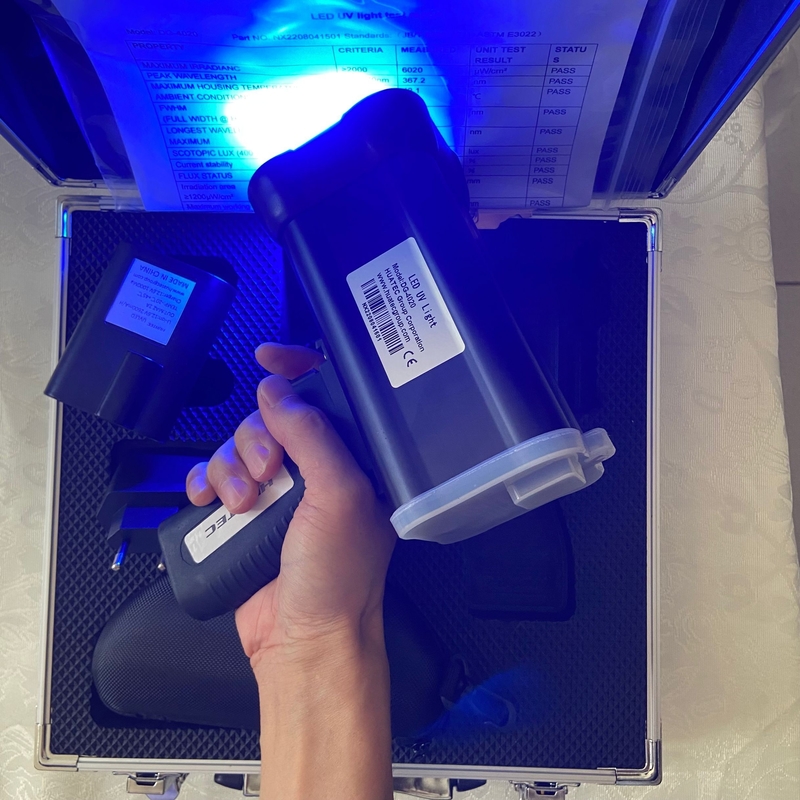

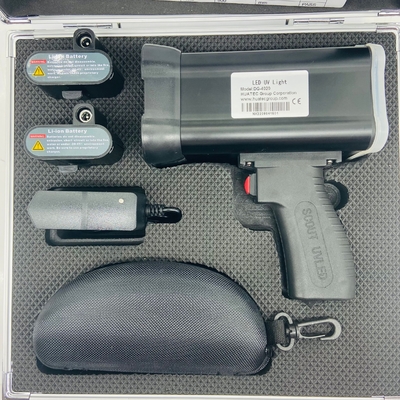

DG-4020 Dual AC DC Operation Handheld LED UV Lamp

Large Image : DG-4020 Dual AC DC Operation Handheld LED UV Lamp

Product Details:

Place of Origin:	CHINA
Brand Name:	HUATEC
Certification:	ISO
Model Number:	DG-4020

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Carton
Delivery Time:	5-8 working days
Payment Terms:	T/T, Western Union/Paypal
Supply Ability:	500PCS

Contact Now

DG-4020 Dual AC DC Operation Handheld LED UV Lamp

Description

Standard:

ASTM E3022

Style:

Handheld

White Light Content:

≤3LUX

Power:

UV LED-12VA

Highlight:

Handheld LED UV Lamp

Dual AC DC LED UV Lamp

Hand held LED UV Lamp

DG-4020 Dual AC&DC operation handheld LED-UV Lamp

Feature:

● Strictly comply with ASTM E3022

● UV-B content is 0

● Battery life of 2-3 hours

● Quick Battery Replacement

● Only 560g of battery is included

● Temperature rise of external surface under continuous operation < 8K (8℃)

● It has colour filter glass, and the white light content is less than 20LUX

● Can work with AC directly and also with DC battery

Project	Parameter / mode
Style	Handheld
UV(Light)-FLUX Indoor temperature 25℃	6000uW/cm²
White light content	≤3LUX
Irradiation area at depth of 380mm: (≥1000uw/cm²)	Φ300mm
Flux error	0-40℃ ±10%
Light distribution characteristics	Central light distribution
Power Supply	AC100- 240V,50/60Hz
Power	UV LED-12VA
Wavelength	Room temperature 25℃, 365nm±3nm (UVA)
Overall dimension	157. 5mm (W) 76mm (D) 177mm (H)
Weight	560g including battery
Battery capacity	2200mA/H 12.6V
Charging time	2-3H
Battery life (cumulative time)	UV LED 2-3H

Dimension: (mm)
