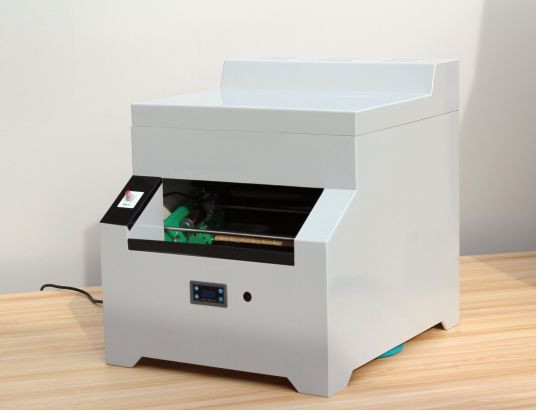

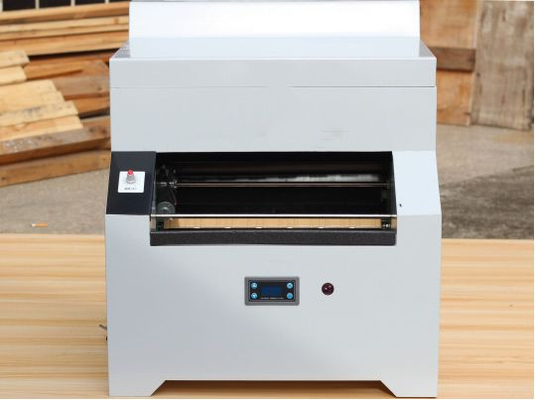

NDT Instrument X-Ray Film Dryer

NDT Instrument X-Ray Film Dryer

Technical parameters and specifications

● Drying process: → → Water washing → → Drying → →

● Film development speed: 40-240s adjustable

● Sheet feeding width:. 360 m

● Moving speed: 710mm/min (running time: 40 seconds)

● Dry tablet quantity 80X360mm (4 "X14") film 450 sheets per hour (dry film speed 40s)

● Power supply: 200-240V. 50/60Hz 5A

● Water consumption: 2 l/min during film operation

● Volume: 560mmX480mx545 (length x width x height)

● Add the function of chip induction

● Improved air duct, higher drying efficiency

● Roller shaft: DuPont foamed uranium is used to ensure that it will not harden within 5 years

● Shell: engineering PVC plastic

● Heating element: PTC heating element

● Temperature control mode: constant temperature control with solid-state relay

● Optional parts: water washing circulating device, which aims at no tap water, poor water quality or frequent water stoppage at the use site
