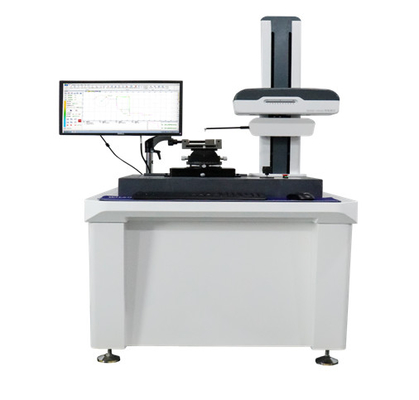

SRT-680G Roughness And Contour Tester

SRT-680G Roughness And Contour Tester
SRT-680G Roughness And Contour Tester SRT-680G Roughness And Contour Tester

Large Image :  SRT-680G Roughness And Contour Tester

Product Details:
Place of Origin: China
Brand Name: Huatec
Certification: ISO,CE
Model Number: SRT-680G
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: in wooden box
Delivery Time: 7~15 days after payment
Payment Terms: L/C, Western Union, T/T
Supply Ability: 100 sets per month

SRT-680G Roughness And Contour Tester

Description
Product Name: Roughness And Contour Tester Model: SRT-680G
Measurement Accuracy: X Axis 200mm Residual Value Noise: ≤0.005μm
Power: AC 220V±10% 50Hz Meas. Speed: 0.02mm To 4.0mm/s
Highlight:

Contour Tester

,

Contour Roughness Tester

,

Roughness And Contour Tester

SRT-680G Roughness and Contour Tester

Measurement Principle
● Cartesian coordinates, stylus contacts.
● High precision air floating guide rail –As the measuring datum of X coordinate to guarantee the linear moving accuracy in X direction.
● High precision digital sensor – to get signal of Z coordinate for measuring the profile of various precise mechanical piece part.
● Computer and windows-based measuring program to process the measuring data, easy for printing and filing

Main Function
Dimension:Contains the horizontal distance, vertical distance, linear distance, radius and diameter
Angle: Horizontal Angle, vertical angle, cross angle
Position tolerance: contains the parallelism and perpendicularity
Form tolerance: contains the straightness, crown, circular arc profile
Auxiliary generation: contains the auxiliary point, auxiliary line, auxiliary circle

Roughness:Ra,Rq,Rz(Ry),Rz(DIN),R3z,Rz(jis),Rp,Rv,Rt,Rsk,Rsm,Rc ,Rpm,RkuRdq,Roc,Mr1,Mr2,Rpk,Rvk,Rk,Rdc,A1,A2,R,Rx,AR,Rcp,Rmax,Rz-ISO etc.

Waviness:wt,wa,wp,wv,wq,wc,wku,wsk,w,wx,wz,wsm,wdc,wte,wmr,Aw,c(wmr)wmr(c),wdq etc.

Original contour Pt Pa Pp Pv Pq Pc Pku Psk Pdq/p△q Psm Pdc Pmr(c) Pz Pmr C(pmr) etc.

Main Parameters

ItemParameterResolution

Measurement range

Measurement Accuracy

X axis200mm0.1μm
Straightness0.6μm /100mm--------
Z1(range)Sensor40mm(Roughness range synchronization)0.05μm
Z Height550mmcolume
Min. inner hole30mm (A smaller inner diameter can be measured by using a smaller measuring needle)----------
Linear accuracy≤±(1+I0.12HI)μm- ------
Arc≤(1.2+R/8)2mm<R<10mm standard ball, The included Angle of the sampling arc:120°



Angle

≤±1′60°,90° angle block, The sampling length of the corner:5mm
RoughnessResidual value noise≤0.005μmλc:0.08mm,testing speed 0.1mm/s, measure flat crystals
Z1(range)SensorEffective range±3mmThe roughness of the curved surface can be measured
Roughness measurement repeatability1δ≤2nmRa 0.35-0.5μm Square wave calibration block
Indication error±5%National standard
Indicative stability≤±7%National standard
Repeatability measurement±3%National standard
Resolution0.1μm----------
SensorTypeDigital grating sensor-----------
Resolution0.05μm-------
Assessment lengthλc×3,4,5,6,7---------
Cut-off wavelength0.025,0.08,0.25,0.8,2.5,8mm----------
Climbing Ability77°(Upside),88°(Downside)-------
Meas. Speed0.02mm to 4.0mm/s----------
Meas. ModeSensor moving--------
XZ1ZThree-axis electric controlIt can be controlled by the software controller
PowerAC 220V±10% 50Hz-------
Environmental conditions

(RH):<85%

20℃± 2℃,2℃/h ,RMS≤50Hz

2.5μm/s ,RMS>50Hz 5.0μm/s

Main configuration
SRT-680G Roughness And Contour Tester 0
SRT-680G Roughness And Contour Tester 1
SRT-680G Roughness And Contour Tester 2
Software interface
SRT-680G Roughness And Contour Tester 3

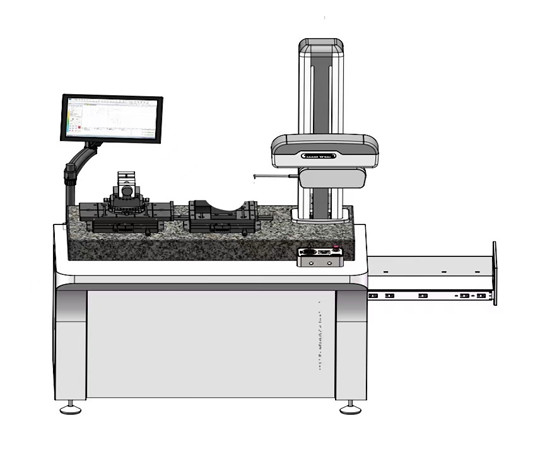

Equipment size
SRT-680G Roughness And Contour Tester 4


(Product)(Packing)(Wt.kg)(CBM m³)
LxLyLzWt(kg)LxLyLzWt(kg)
140072517402709609601950503000.88


Usage requirement
Power: AC 220V±10% 50Hz
Environment requirement:(T):10~30℃,(RH):<85%,No obvious vibration,Independent grounding

Testing reference photos
SRT-680G Roughness And Contour Tester 5
