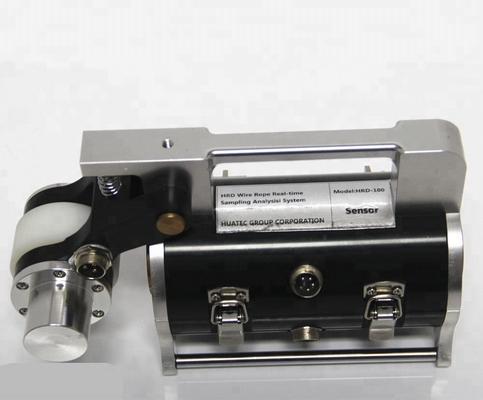

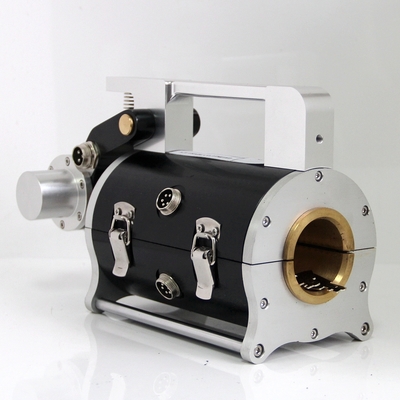

Wire Rope Flaw Detector for 1.5-300mm Diameter Ropes

• Inspection of ropes with diameter from 1 to 300 mm (0.04" to 11.8")
• Standard size 10-30mm (custom sensors available for other sizes)
• Speed range: 0 to 6 m/s (0 to 6.54 yards/s)
• Detects flaws including broken wires, abrasion, corrosion, distortion, and skipped wires
• Displays broken wire quantity and affected area measurements
• USB interface for sampling and analysis with real-time sound alarm
• Circular sensor design with axial magnetization for instant saturation
• Durable metal shell: waterproof, dustproof, quakeproof, and dampproof
• High stability, reliability, precision, and anti-interference capability
• Meets ASTM1571 certification standard

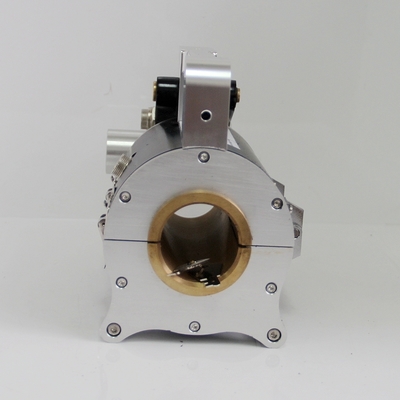

• Test range (closed style sensor): Φ1.5-300 mm
• Optimal relative speed: 0.3-1.5 m/s
• Recommended sensor-to-rope spacing: 2-6 mm (allowable: 0-15mm)
• Dual-function: LMA and LF capability
• Speed-independent readings
• Precision distance wheel assembly
• 3 interchangeable hall sensor units
• Operating temperature: -10°C to +50°C
• Continuous testing capability: >10,000m rope length
• Power: AC 220V±10%
• Working temperature range: -20℃ to 40℃
• Storage temperature range: -40℃ to 60℃
• Relative humidity tolerance: ≤90% RH

• Size: 330 x 235 x 190 mm (13" x 9.3" x 7.5")
• Weight: 15 kg (33 lbs)

Ideal for inspection of:

• Mining ropes
• Aerial ropeways (chairlifts and gondola lifts)
• Guy ropes for suspension bridges
• Hoisting equipment
• Elevators
• Port machinery
• Cable bridges

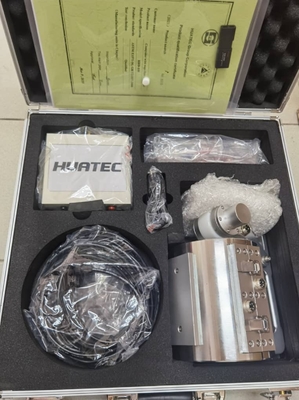

• Probe: 1 set
• Real time alarm: 1pc
• Signal cable: 1pc
• HRD PC analysis software: 1 set
• Laptop (optional): 1pc
• Communication cable: 1pc
• Charger: 1pc
• Tool set: 1 set
• Instruction manual: 1 set

Open style wire rope sensors (primarily for elevator applications):

• Standard size: 8-20mm
• Custom sizes available (maximum size: 70mm)
• Measures total flaw amount
