Determine Indentation Hardness of Materials Range from Cellular Products to Rigid Plastics EVA Hard Sponge Foam Durometer

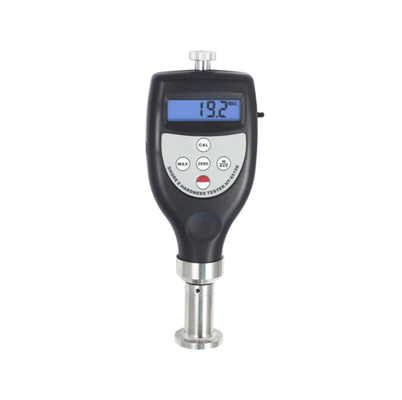

Large Image : Determine Indentation Hardness of Materials Range from Cellular Products to Rigid Plastics EVA Hard Sponge Foam Durometer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HT-6520E

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	500sets per month

Contact Now

Determine Indentation Hardness of Materials Range from Cellular Products to Rigid Plastics EVA Hard Sponge Foam Durometer

Description

Product Name:

EVA Hard Sponge Foam Durometer

Unit:

HA/HB/HC/HD/HE/HDO/HO/HOO

Display Range:

0~100HA(HB/HC/HD/HE/HDO/HO/HOO)

Accuracy:

≤±1H

Highlight:

EVA foam durometer tester

hardness testing machine for plastics

cellular material hardness measurement

Determine Indentation Hardness of Materials Range from Cellular Products to Rigid Plastics EVA Hard Sponge Foam Durometer

Application

Used to determine the indentation hardness of materials ranging from cellular products to rigid plastics.

Features

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.

Models & Applications

Model	Indenter	Tested Materials	Hardness Value
A	0.79 Truncated Cone	Soft Rubber, Elastomers, Natural Rubber Products, Neoprene, Resin, Polyester, Soft PVC,Lleather, etc.	20 ~ 90 A
B	R 0.1 Cone	Middle Hard Rubber Materials, Typewriter Rollers, etc.	Above 90 A, Below 20 D
C	0.79 Truncated (Frustum) Cone	Plastics and Middle Hard Rubber Materials	Above 90 B, Below 20 D
D	R 0.1 Cone	Fibre Plastics, Hard Rubber, Hard Plastic Materials, Plexiglas,Stiff Thermo Plastics, Formica, Print Roller, Vinyl-plate, Cellulose Acetate, etc.	Above 90 A
DO	R 1.2 Spherical Radius	Plastics and Middle Hard up to Hard Rubber Materials	Above 90 C, Below 20 D
O	R 1.2 Spherical Radius	Soft Elastic Materials, Print Rollers, Middle Firm Textile Fabrics, Nylon, Orlon, Perlon, Rayon	Below 20 DO
OO	R 1.2 Spherical Radius	Sponge- and Cellular Rubber, Foam Rubber, Silicone, Gel-like Materials	Below 20 O
E	R 2.5 Spherical Radius	Hard Sponge, EVA	Above 90 DO, Below 20 D

Specification

Model	HT-6520E
Parameters	Tested Result/Mean Value/Max.Value
Unit	HA/HB/HC/HD/HE/HDO/HO/HOO
Display Range	0~100HA(HB/HC/HD/HE/HDO/HO/HOO)
Measurement Range	10~90HA(HB/HC/HD/HE/HDO/HO/HOO)
Accuracy	≤±1H
Resolution	0.1H
Battery Indicator	Low Battery Indicator
Auto Switch Off	√
Operating	Temperature:0~50ºC Humidity:<80%RH
Power Supply	4x1.5V AAA(UM-4)Battery
Power Supply	2x1.5V AAA(UM-4)Battery(Stand Available)
Dimensions	162x65x28 mm
Weight	170g
Standard Accessories	Main Unit
	Pin Length Teat Block
	Carrying Case(B04)
	Operation Manual
Optional Accessories	Shore Hardness Tester Measurement Stand
	Rubber Hardness Test Block(A/D Type)
	USB Data Cable with Software
	Bluetooth Data Adapter with Software

Model & Hardness
