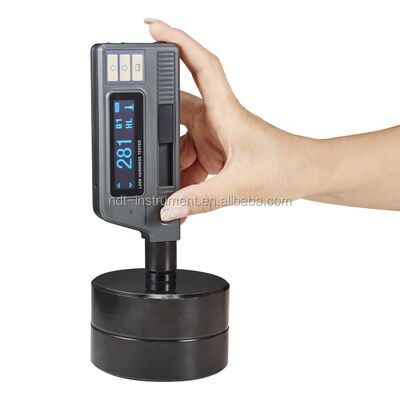

Integrated with D Probe With Memory 1000 Groups OLED Screen Can Choose 7 kinds Probe Digital Metal Hardness Tester

Integrated with D Probe With Memory 1000 Groups OLED Screen Can Choose 7 kinds Probe Digital Metal Hardness Tester

Advantages

• Customaries curve for a specific testing material
• OLED display of 128×32 matrix
• Converts to all common hardness scales (HV ,HB,HRC,HRB,HRA,HS).
• Easy to use Menu driven system
• With miniUSB interface, multiple communication modes are adopted to meet customized requirements of various users.
• Max 600 groups of data can be stored in memory.
• Upper and lower limit of hardness can be preset; with alarm
• Test values software calibration function.
• Working voltage: 3.7V Rechargeable Li-Ion battery
• Continuous working period: approx. 50 h .
• Bluetooth included, can be connected with printer through Bluetooth

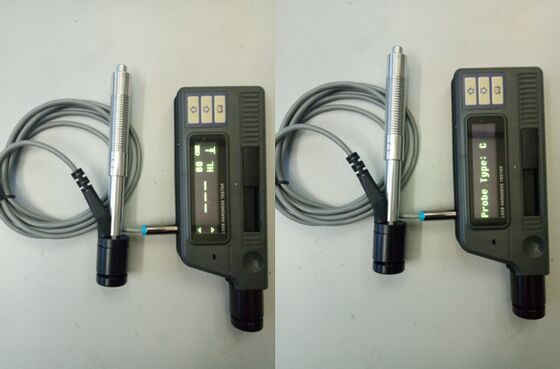

• Can be used with Impact device Type C,DC,G,D+15,DL,E
• Smart and skid proof design
• Charging indicator

Main Application

• Die cavity of molds
• Bearings and other parts
• Failure analysis of pressure vessel, steam generator and other equipment
• Heavy work piece
• The installed machinery and permanently assembled parts
• Testing surface of a small hollow space
• Material identification in the warehouse of metallic materials
• Rapid testing in large range and multi-measuring areas for large-scale work piece

Testing range

Technical Specifications

• Measuring range: HLD(170～960)HLD
• Measuring direction: 360°
• Hardness scale: HL, HB, HRB, HRC, HRA, HV, HS
• Display: OLED, 128×32 matrix OLED
• Data memory: up to 600 groups
• Range of upper and lower limit: the same as measuring range
• Rechargeable Li-Ion battery with no memorability
• Continuous working period: approx. 50 h
• Communication interface: miniUSB
• Accuracy and repeatability of displayed value, see table 3.
• Dimension: 153×54×24mm (main unit)
• Weight approx: 0.25kg (main unit);

Configuration
