Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer

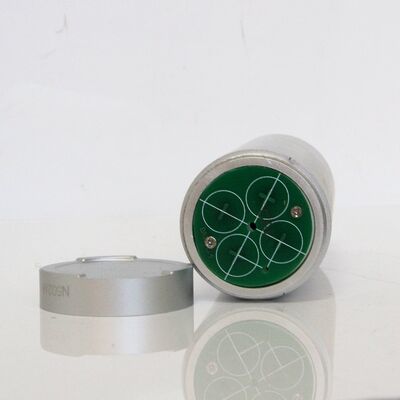

Large Image : Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO,CE
Model Number:	HG5000

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union

Contact Now

Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer

Description

Product Name:

Vibration Analyzer

Operating Frequency:

159.2 Hz ± 0.5 %

Maximum Load:

150 G

Internal Battery:

1x9V 6F22

Highlight:

handheld vibration calibrator with warranty

portable vibration meter tester

vibration analyzer calibrator tool

Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer

Detailed Product Description
The Vibration Calibrator is a small, self-contained handheld shaker designed for quick and
easy check-ing of accelerometers, vibration monitoring systems and recording systems.
Providing a known and controlled RMS vibration for verification of accelerometers weighing up
to 150g.
*Operates at 159.2 Hz.
*10 mm/s RMS velocity output.
*Drives vibration sensors up to 150g.
*CE compliant.

Operating Frequency	159.2 Hz ± 0.5 %
Acceleration Output	10 m/s² (RMS) ± 3%
Velocity Output	10 mm/s (RMS) ± 3%
Displacement Output	10 um (RMS) ± 3%
Transverse Output	< 5%
Distortion	< 3%
Maximum Load	152g
Ramp-Up Time	< 3 Seconds
Operating Conditions	Temperature: -10~40°C Humidity : < 85 %RH
Internal Battery	1x9V 6F22
Size (Diameter x Height)	56 mm x 200 mm
Weight (with batteries)	900g

Standard Accessories:
1. Vibration Calibrator Main Unit
2. Carrying Case
3. Manual Book

Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer 0

Handheld Vibration Calibrator of Vibration Meter Vibration Tester Vibration Analyzer 1
