Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter

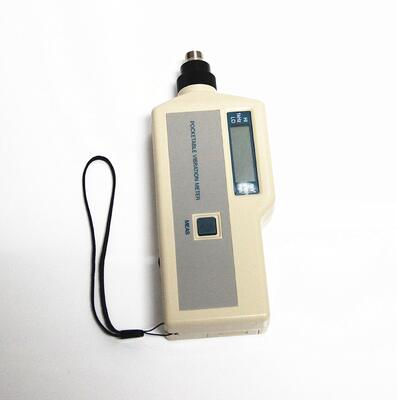

Large Image : Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	ISO，CE
Model Number:	HG-6500 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	in carton
Delivery Time:	3~7 days after payment
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100 pcs per month

Contact Now

Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter

Description

Product Name:

Pocket Vibration Meter

Frequency Range:

5Hz-10KHz

Function:

Acceleration, Velocity, Displacement, Temperature

Sensor Type:

Low Frequency And Temperature (separate Sensor)

Highlight:

portable vibration meter for bearings

gear box vibration tester

pocket vibration meter with warranty

Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter

Features

• New technology design, low power consumption.

• Fully produced as international standard 1S02372, can directly determine the current state (well, pay attention or dangerous, etc.) of the machinery equipment

• High reliability rotary shear acceleration sensor has much better performance than compression sensor

• High and low frequency model, easy to recognize machinery fault

• Equip with signal input function, can test temperature with special temp sensor

• Equip with signal output function, can be connected with earphone, oscilloscope and vibration recording meter etc.

• In-built vibration sensor and separate sensor optional

• Can test vibration and temperature for all machinery equipment (fans, pumps, compressors, motors, etc.)

• The measurement value is automatically maintained

• Automatic shut down

Specifications

Sensors	Rotary shear accelerometer Split charge amplifier built-in shear accelerometer
Range	Acceleration 0.1 ~199.9m/s2 (single peak) (5 or 10~1 KHz; 1 K~1 OKHz) Speed of 0.1 ~ 199.9mm/s (RMS) (5 or 10~1 KHz) Displacement of 0.001 ~1.999mm (peak) (5 or 10~1 KHz) Temperature 0°C~400°C
Accuracy	5%士2 vibration words Temperature 1 %士1 word
Display	LCD display 3 1/2 digits
Signal Output	AC 2V peak (full scale and the load is greater than 1 OK ohms)
Power	9V laminated battery, can be used continuously 25 hours
Body volume	185mm x 68mm x 30mm
Weight	200g

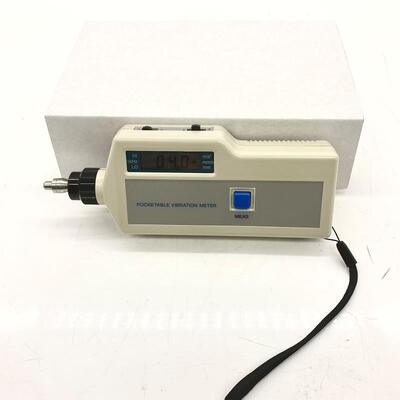

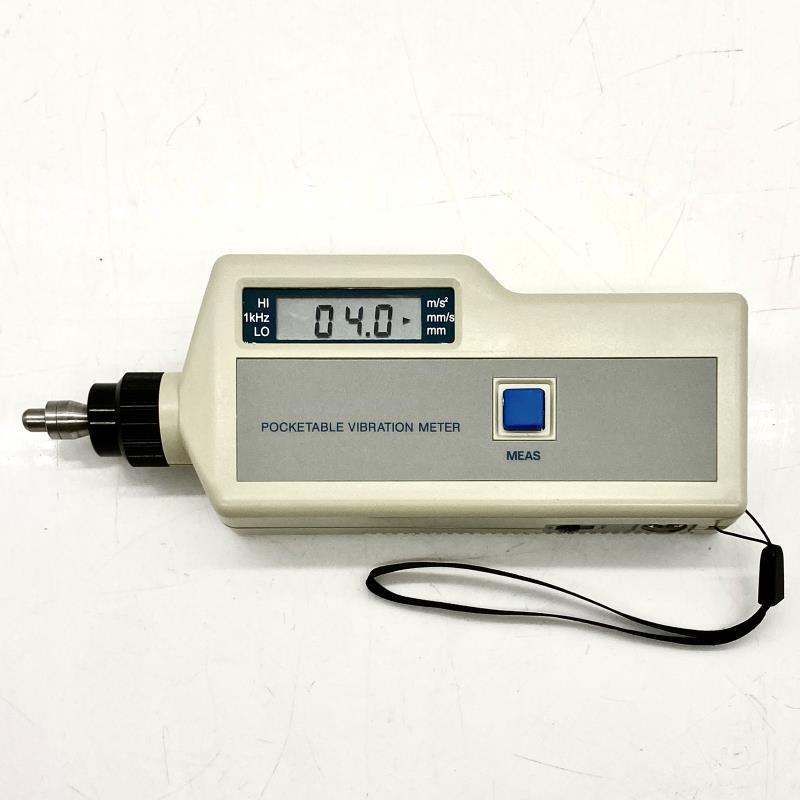

Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter 0

Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter 1

Judging Failure of Rolling Bearing and Gearbox Pocket Vibration Meter 2
