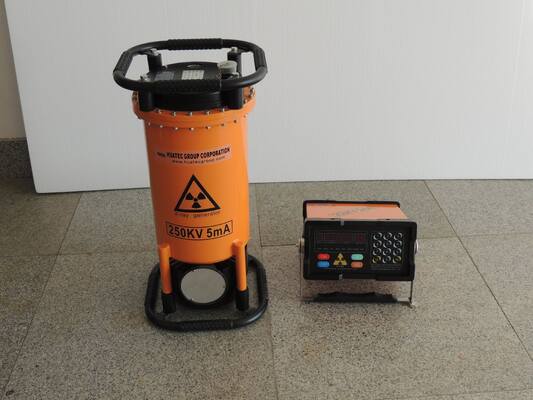

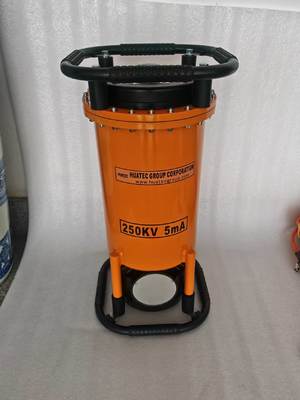

X-Ray NDT Equipment Ceramic Tube 250KV Voltage

X-Ray NDT Equipment CeramicTube 150-250KV Voltage

X-Ray NDT Equipment Mainly used for detecting internal defects of workpieces (different from surface inspection of MT/PT). By penetrating the workpiece and imaging on film or detector, volumetric defects such as porosity, slag inclusion, lack of fusion, lack of penetration, and cracks inside the weld seam can be clearly displayed.

Main application industries
·Pressure vessels and boilers: Testing the longitudinal/circumferential seams of the cylinder, connecting pipe welds, and head joints is a mandatory requirement of standards such as ASME and GB.
·Petrochemical industry: on-site inspection of pipeline welds and long-distance pipelines.
·Aerospace: Structural integrity inspection of precision castings and turbine blades.
·Military and defense industry: internal quality inspection of ammunition shells and weapon castings.
·Steel Structure and Shipbuilding: Sampling Inspection of Thick Plate Welds and Key Load Bearing Components.
·Automotive Manufacturing: Internal Defect Screening of Aluminum Alloy Wheels and Castings

 Features:

◆Adopting micro-computer control and modular structure,with strong anti-interference ability and high automaticity and reliable performance .

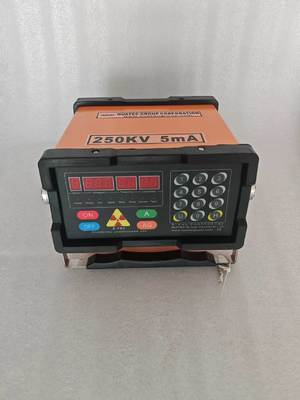

◆Parameter setting,working process and trouble indication will be indicated on the LED screen.

◆Independent aging key is designed for aging the machine conveniently.

◆Radiating time to cooling time is 1:1.

◆The controller can recognize the type of x-ray generator automatically.

◆The water and dust proof color panel and digital sound keyboard are introduced that exposure parameters are promptly and accurately selected.

◆Ensure safety using the instrument,it is installed with overvoltage,undervoltage,
overcurrent,undercurrent and overtemperature protection device.

◆A unique safety lock is designed that protect the operator from the damage of radiation.

◆Adopting the wider range of kv value, and solve the difficulty problem of short radiographic range.

◆Exposure delay function ------the delay time can be set less than 10 minutes to keep the operator safe from working place.

◆Match with various generator and function reliably.

◆Number of exposure can be accumulated.

(After the unit has been ready,but before press the "ON"key,you can press the "A" key (delay key) three times to check the number of exposure, and press any key to return back.)

◆With the outlet of ray warning lamp and wire connecting terminal of door-machine interlock.
