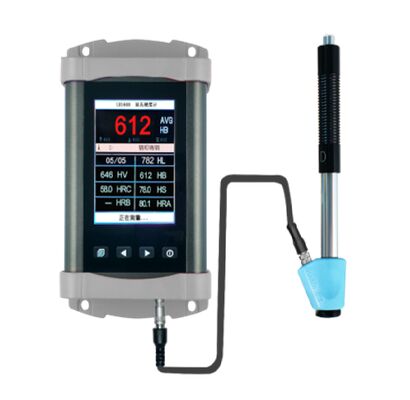

RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission

RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission
RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission

Large Image :  RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: RHL-AI1600
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

RHL-AI1600 Online Leeb Hardness Tester with 360° Measurement Directions, Multiple Hardness Scales, and Real-Time Data Transmission

Description
Hardness Scale: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS)

RHL-AI1600 Online Leeb Hardness Tester
Product Overview

The RHL-AI1600 online portable Leeb hardness tester features a 2.8-inch, 320x240 color TFT screen with delicate colors and rich display content. It is online powered and incorporates electromagnetic interference and surge protection designs, providing strong immunity. It also has an Ethernet port or RS485 communication interface, allowing connection to a PC or PLC controller for real-time data transmission.

Technical Specifications
Indication Error & Repeatability:
Serial No. Impact Device Type Standard Leeb Hardness Block Value Indication Error Indication Repeatability
1 D 760±30HLD 530±40HLD ±5 HLD ±8 HLD 5 HLD 8 HLD
2 DC 760±30HLDC 530±40HLDC ±5 HLDC ±8 HLDC 5 HLD 8 HLD
3 DL 878±30HLDL 736±40HLDL ±10 HLDL 10 HLDL
4 D+15 766±30HLD+15 544±40HLD+15 ±10 HLD+12 10 HLD+12
5 G 590±40HLG 500±40HLG ±10 HLG 10 HLG
6 E 725±30HLE 508±40HLE ±10 HLE 10 HLE
7 C 822±30HLC 590±40HLC ±10 HLC 10 HLC
Hardness Scales: Leeb (HL), Brinell (HB), Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), and Shore (HS)
Measurement Range: HLD (170～960), HRA (59～85), HRB (13～100), HRC (18～68), HB (19～655), HV (80～976), HS (32～100)
Measurement Directions: 360° (vertically downward, diagonally downward, horizontal, diagonally upward, vertically upward)
Measuring Materials: Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile cast iron, cast aluminum alloys, copper-zinc alloys (brass), copper-tin alloys (bronze), pure copper, and forged steel
Display: 2.8-inch TFT LCD screen, 320 × 240 resolution
Power Supply: 24V
Ambient Temperature: 0～40℃
Storage Temperature: -25～70℃
Key Features
  • Fully English menu-driven operation
  • Network port or RS485 communication interface for easy connection to PC, industrial computer, or PLC
  • Compatible with 7 different impact devices with automatic identification and no recalibration required
  • Supports multiple hardness scales and three strength values
  • Two built-in hardness conversion tables (domestic and international) to meet different customer needs
  • Dual hardness scale display capability
  • Quick browsing of measurement data and easy switching between hardness scales
  • Preset hardness value limits with automatic alarm for batch testing
  • Indication software calibration function
Standard Configuration
  • 1pc main unit
  • 1pc D type impact device
  • 1pc small support ring
  • 1pc Nylon brush (I)
  • 1pc high-value Leeb hardness block
  • 2pcs terminals
  • 1pc Operation manual
  • 1pc HUATEC calibration certificate
Optional Accessories
  • Various irregular impact devices
  • Various irregular support rings
  • Various hardness blocks
