RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement

RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement
RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement

Large Image :  RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement

Product Details:
Place of Origin: China
Brand Name: HUATEC
Model Number: RHL-C150
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Contact Now

RHL-C150 Cloud Pen-type Leeb Hardness Tester with 360º Measurement Direction and Rechargeable Lithium Battery for High-Precision Measurement

Description
Indication Error: ±0 . 5%(HLD =800) External Dimensions: 148mm×30mm×30mm
Indication Repeatability: 0.8%(HLD =800) Power Source: Rechargeable Lithium Battery

RHL-C150 "Cloud" pen-type Leeb hardness tester
Product Overview

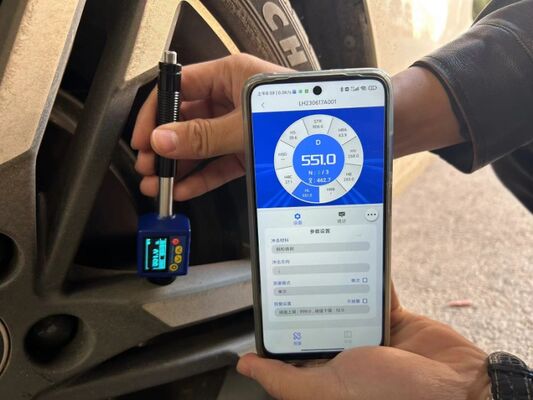

The RHL-C150 "Cloud" is a portable pen-type Leeb hardness tester that connects to mobile phone apps for operation. This instrument provides fast, non-destructive, and highly accurate hardness measurements for common metal materials. Suitable for both laboratory and field applications, it offers configurable measurement settings to accommodate diverse testing requirements.
Applications
Widely used in mold manufacturing, heat treatment, mechanical processing, pressure vessels, automotive parts, aerospace, and other industrial sectors. Also ideal for universities, research institutions, technical supervision departments, and special inspection institutes as an essential instrument for non-destructive material hardness testing.
Technical Specifications
Measurement Direction Supports 360° (vertical downward, oblique downward, horizontal, oblique upward, vertical upward)
Detection Range (170-960)HLD, (17.9-69.5)HRC, (19-683)HB, (80-1042)HV, (30.6-102.6)HS, (13.5-101.6)HRB, (25-105)HSD
Hardness Systems Richter (HL), Brinell (HB), Rockwell B (HRB), Rockwell C (HRC), Vickers (HV), Shore (HS), Rolling rail Shore (HSD)
Indication Error ±0.5% (HLD=800)
Indication Repeatability 0.8% (HLD=800)
External Dimensions 148mm × 30mm × 30mm
Power Source Rechargeable lithium battery
Display Industrial-grade 128×64 graphic dot matrix organic light-emitting diode LCD
Continuous Working Hours Approximately 20 hours
Working Conditions Operating temperature: 10-50°C, Storage temperature: -30°C to 60°C, Relative humidity ≤ 90%
Accuracy Specifications
Impact Device Type Standard Leeb Hardness Block Value Indication Error Indication Repeatability
D 760±30HLD, 530±40HLD ±6 HLD, ±10HLD 6HLD, 10HLD
DC 760±30HLDC, 530±40HLDC ±6HLDC, ±10HLDC 6HLD, 10HLD
DL 878±30HLDL, 736±40HLDL ±12HLDL 12HLDL
D+15 766±30HLD+15, 544±40HLD+15 ±12HLD+15 12HLD+15
G 590±40HLG, 500±40HLG ±12HLG 12HLG
E 725±30HLE, 508±40HLE ±12HLE 12HLE
C 822±30HLC, 590±40HLC ±12HLC 12HLC
Key Features
  • Compact, portable design with integrated construction and no connection cables for enhanced reliability
  • Clear display visibility even under direct sunlight, suitable for various lighting conditions
  • High-precision measurement circuit ensures indication repeatability of ±0.8% (HLD=800)
  • Supports multiple hardness systems: HL, HV, HRC, HRB, HB, HS
  • USB direct charging for fast and convenient battery replenishment
