HD-18A Underground Pipeline Detector with ±5% Depth Measurement Accuracy 6 Meters Range and Strong Anti-Interference Ability

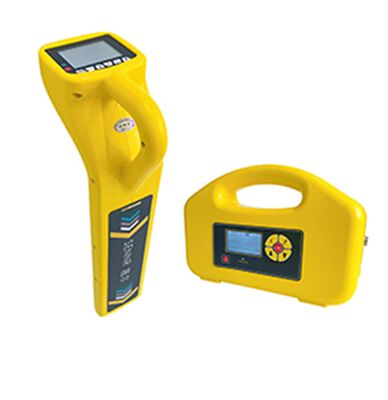

Large Image : HD-18A Underground Pipeline Detector with ±5% Depth Measurement Accuracy 6 Meters Range and Strong Anti-Interference Ability

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	HD-18A

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

HD-18A Underground Pipeline Detector with ±5% Depth Measurement Accuracy 6 Meters Range and Strong Anti-Interference Ability

Description

Depth Measurement Accuracy:	±5% Of Depth (without Interference From Adjacent Pipelines)	Current Measurement Accuracy:	±5% Of Actual Current (without Interference From Adjacent Pipelines)
Depth Measurement Range:	< 6 Meters	Positioning Accuracy:	±5% Of Depth (without Interference From Adjacent Pipelines)

HD-18A Underground Pipeline Detector

For locating, tracing and measuring the depth of underground pipelines

Product Overview

The HD-18A underground pipeline detector is meticulously developed by a domestic professional research team. It integrates advanced technologies such as ultra-narrowband filters and possesses outstanding detection capabilities including strong anti-interference ability, precise positioning, and depth measurement.

It is suitable for the detection and patrol of various underground metal pipelines, pipeline management and maintenance, municipal planning and construction, power supply and other departments. It is one of the essential instruments for pipeline maintenance units.

Key Performance Specifications

Parameter	Specification
Positioning accuracy	±5% of depth (without interference from adjacent pipelines)
Depth measurement accuracy	±5% of depth (without interference from adjacent pipelines)
Current measurement accuracy	±5% of actual current (without interference from adjacent pipelines)
Depth measurement range	< 6 meters

Product Features

Uses a 10W wideband transmitter, capable of detecting in various environments
Both receiver and transmitter are powered by lithium battery packs, energy-saving with extremely long working time
Display has backlight function, enabling use for emergency rescue at night
Left and right arrow displays allow for quick positioning of pipeline locations

Technical Specifications

Receiver

Positioning accuracy: ±5% of depth (without interference from adjacent pipelines)
Depth measurement accuracy: ±5% of depth (without interference from adjacent pipelines)
Current measurement accuracy: ±5% of actual current (without interference from adjacent pipelines)
Depth measurement range: < 6 meters
Working modes: Valley mode, Peak mode, Wide Peak mode, Peak Arrow mode
Working frequency: 50Hz, 512Hz, 1KHz, 33KHz, 83KHz
Menu settings: Chinese and English setting menu
Operating temperature: -20℃ to +50℃
Battery: 7.4V lithium battery
Dimensions: 595mm × 136mm × 238mm
Weight: 1.6Kg (including battery)

Transmitter

Output power: 10W
Working frequency: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Working mode: Automatic conversion among direct connection, induction and clamp modes
Battery: Built-in 14.8V lithium battery pack
Operating temperature: -20℃ to +50℃
Dimensions: 348mm × 228mm × 84mm
Weight: 2.5Kg (including battery)

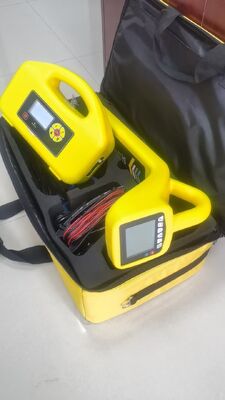

Standard Configuration

One HUATEC HD-18A receiver
One HUATEC HD-18A transmitter
One induction clamp
One output cable
One grounding rod
Two chargers
One connecting magnet
One 220V power cord
One user manual
One instrument packaging box
One HUATEC calibration certificate
