FJ-3025 High Sensitivity X Gamma Radiation Monitoring Probe NaI Scintillation Detector

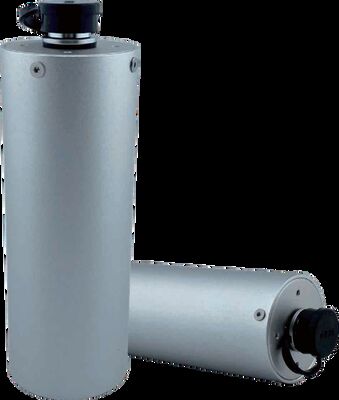

Large Image : FJ-3025 High Sensitivity X Gamma Radiation Monitoring Probe NaI Scintillation Detector

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	CE
Model Number:	FJ-3025

Payment & Shipping Terms:

Minimum Order Quantity:	1 pc
Packaging Details:	Carton packing box
Delivery Time:	5-7 working days after receipt of your payment
Payment Terms:	T/T,Paypal
Supply Ability:	10sets/Month

Contact Now

FJ-3025 High Sensitivity X Gamma Radiation Monitoring Probe NaI Scintillation Detector

Description

Measurement Range:

0.01μSv/h～500μSv/h

Energy Response:

40keV～3MeV

Sensitivity:

350cps/ μSv/h

Relative Error, Not More:

±15%

Highlight:

NaI scintillation radiation detector

high sensitivity gamma probe

X gamma radiation monitoring

FJ-3025 High Sensitivity X Gamma Radiation Monitoring Probe NaI Scintillation Detector

Features:
Real-time measurement of γ and X-ray radiation in the workplace
Features a 485 communication interface and supports Modbus protocol
Compatible with host control equipment or upper-level monitoring software
High-sensitivity NaI scintillator detector

Technical Specifications

Measurement range	0.01μSv/h～500μSv/h
Energy response	40keV～3MeV
Sensitivity	350cps/ μSv/h
Relative error, not more	±15%
Response time	≤1s(10μSv/h)
Operating temperature range	-20℃～+50℃
Relative humidity	≤98％
Supply voltage	DC 7V～24V
Static power consumption	12V/ 5mA
Dimensions	Diameter 45mm, Length 120mm (excluding plug height)
Weight	0.6kg

Delivery kit:
Probe, data communication protocol or specialized data analysis software
