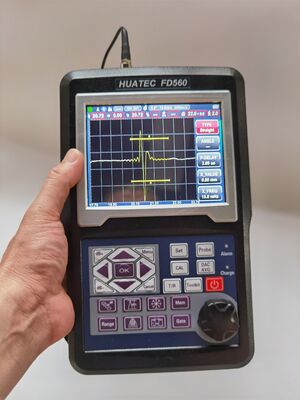

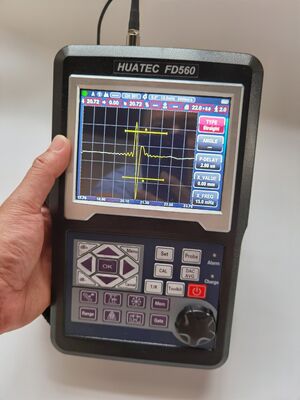

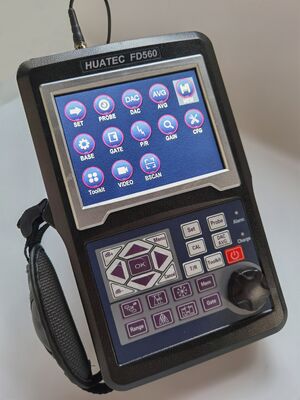

HUATEC FD560 Portable Digital Ultrasonic Flaw Detector with 120dB Sensitivity and IP65 Protection for NDT Testing

HUATEC FD560 is a portable digital ultrasonic flaw detector designed for non-destructive testing (NDT) of metals and industrial materials. This advanced instrument enables precise detection, location, evaluation, and diagnosis of internal defects without causing damage to the materials being tested.

• Detect internal defects in materials including cracks, weld defects, porosity, inclusions, and laminations
• Locate, evaluate and diagnose flaws without damage to materials
• Measure depth, size and position of flaws with precision
• Ideal for welding inspection and quality control applications

• Pulse Repetition Frequency: 10-2000Hz precise adjustment for high-speed scanning with no miss-out
• High signal-to-noise ratio with clear, stable echo and anti-noise design for tough working conditions
• 12-digit AD with high-speed sampling for detailed echo diagrams and detection of tiny flaws
• Compatible with probe frequency up to 20MHz
• IP65 rated with protective rubber casing for durability

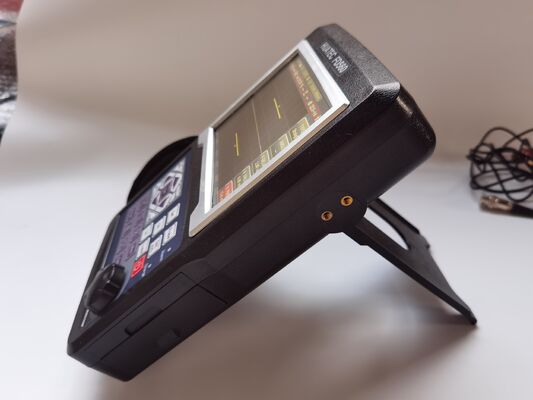

• Damping support allows standing at any angle
• Long battery life: 15 hours operation per charge

• Portable Ultrasonic Flaw Detector
• Straight Beam Transducer (2.5 MHz, Φ20)
• Angle Beam Transducer (4 MHz, 8 mm×9 mm, 60°)
• Interconnect Cable for the transducer (Q9-C5, or optional C9-C5)
• Rechargeable Li-Ion Battery Package, 8 amp hour
• Power supply/charger unit
• Operating Manual in English
• App Software
• Protective rubber casing
• Strap

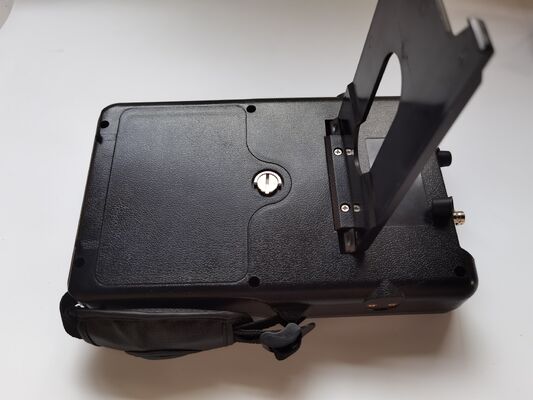

1. Swiveling metal support with damping for standing at any angle
2. Bluetooth connection to mobile device for on-site report generation and printing with Bluetooth App
3. IIW V2 block
4. Leather sheath
