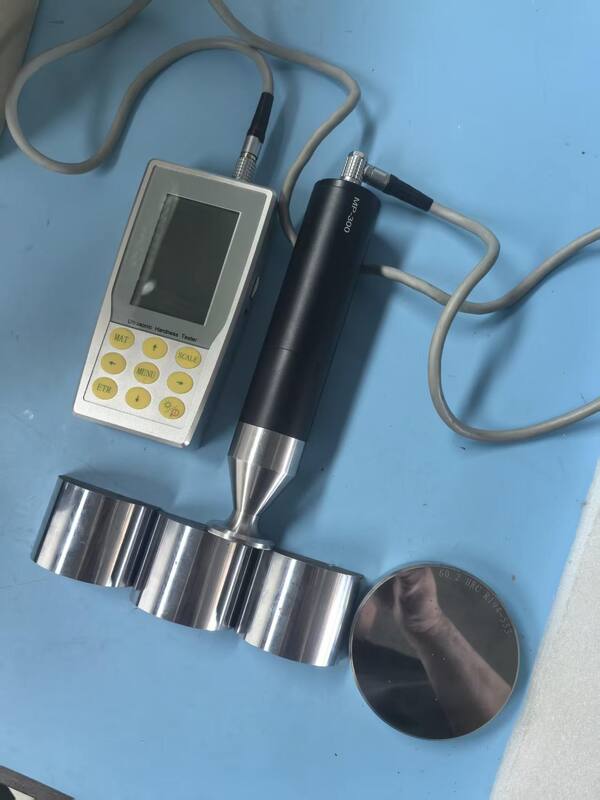

HUH-5E Motorized Probe Ultrasonic Hardness Tester Portable Hardness Testing Machine
Features:
●Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.
● Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface.
● Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.
● Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
● Ultrasonic hardness tester HUH-5E applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
● Ultrasonic hardness tester HUH-5E is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Specifications:
| Loading Force |
10N Motorized Probe |
| Indenter |
136°Vickers Diamond Indenter |
| Measuring Range |
HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6
HS: 34.2-97.3;Mpa: 255-2180N/mm |
| Measuring Accuracy |
HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD |
| Measuring Direction |
Support 360° |
| Data Storage |
To save 1000-groups of measuring data and 20-groups of calibration data |
| Hardness Scale |
HV,HB,HRC, HLD |
| Data Display |
Loading force, Testing-times, Testing result, Average, Maximum,Minimum,Deviation and Conversion scale |
| Hardness Indication |
LCD display |
| Operating Environment |
Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
Features:
● Introduced latest ultrasonic sensor technology
● Obtain accurate hardness value without auxiliary devices
● Support 360° quick measuring
● Excellent human engineering design easy to hold
● Suitable dimension and weight of probe is convenient to control
● Quick and accurate measuring for edge and fixed position of specimen
● Micro indentation, Non- Destructive for specimen
Standard Delivery:
| Standard Delivery |
quantity |
|
quantity |
| HUH-5E main unit |
1 |
Probe Cable |
1 |
| UCI-1000 Motorized Probe |
1 |
Com Cable |
1 |
| Standard Rockwell Block |
1 |
USB Cable |
1 |
| Anti Vibration Case |
1 |
English Operation Manual |
1 |
| Screw |
1 |
Warranty Card |
1 |
| Qualification Certificate |
1 |
Packing List |
1 |
Motorized Probe Specifications:
| Probe Type |
UCI-300 |
UCI-500 |
UCI-800 |
UCI-1000 |
| Testing force |
3N |
5N |
8N |
10N |
| Diamter |
46mm |
46mm |
46mm |
46mm |
| Length |
197.5mm |
197.5mm |
197.5mm |
197.5mm |
| Oscillating Rod Diameter |
3.7mm |
3.7mm |
3.7mm |
3.7mm |
| Min weight of test material |
0.3kg |
0.3kg |
0.3kg |
0.3kg |
| Minimum thickness |
2mm |
2mm |
2mm |
2mm |
