X-ray inspection equipment for welds/castings

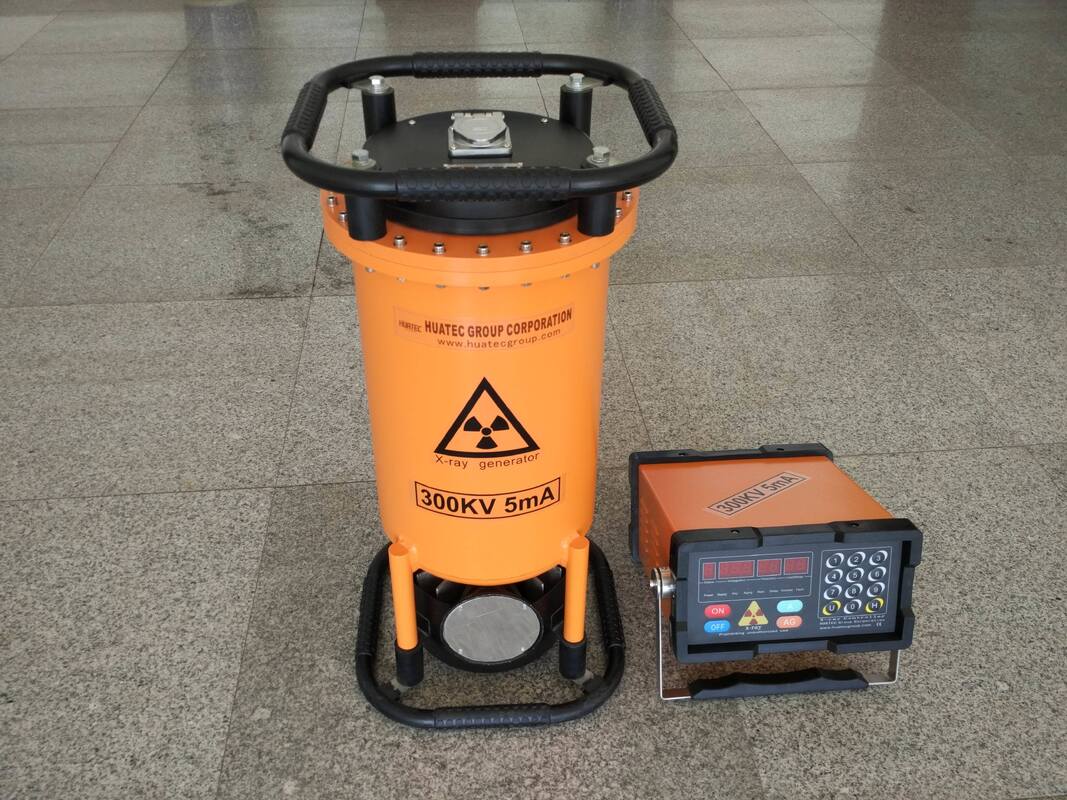

Large Image : X-ray inspection equipment for welds/castings

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Certification:	Standard
Model Number:	XXG3005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	wooden box
Delivery Time:	5-8 working days
Payment Terms:	D/P,T/T

Contact Now

X-ray inspection equipment for welds/castings

Description

Name:

X-ray Inspection Equipment For Welds/castings

Use:

Pipeline Weld Inspection

Funcation:

Weld Inspection X-Ray

Keywords:

NDT X-ray Scanner

Highlight:

X-ray weld inspection equipment

X-ray casting testing machine

Non-destructive testing X-ray equipment

X-ray inspection equipment for welds/castings

X-Ray Flaw Detector is a non-destructive testing (NDT) device that uses X-rays to penetrate materials and reveal internal hidden defects without damaging the workpiece.

Detect internal flaws: cracks, porosity, slag inclusions, voids, incomplete penetration
Verify integrity of welds, castings, forgings, and critical components
Ensure safety and compliance in quality control (ISO, ASME, Nadcap)
Support real-time imaging, defect analysis, and reporting

TYPE ITEM			XXG3005
Max Penetration thickness Steel (A3)			50mm
Focal Distance			600mm
Exposure Time			5min
Film Type			TianJin Ⅲ
Double lead foil Intensifying screen			0.03
Darkroom Disposal			20±2℃
Development			5minutes
Blackness			1.5
Input	Voltage (V)		220V±10% 50―60Hz
	Capacity (KVA)		2.0
Output	Tube voltage (KVP)		150-300
	Tube current (mA)		5
	Stability		±1%
X-RAY Tube	Focus mm²		1.5×1.5
	Radiation Angle		40±5°
Sensitivity			k≤1.8%
Operation Mode			Intermittent operation, Radiating time to cooling time is 1:1
X-Ray Controller		Dimension	270×270×140
		Weight	9kg
		Circuit Structure	Micro-computer control ,Modular structure,Voice prompt
X-RAY Generator		Cooling	Force air cooling
		Insulation	SF6 Gas Insulation
		Working Pressure	0.35Mpa-0.45Mpa
		Dimension	340×340×670
		Weight (kg)	32kg
Working Temperature			-10℃―+40℃

X-ray flaw detectors can test Pipelines internal defects it include volumetric defects such as pores, shrinkage cavities,

and slag inclusions. ·Area type defects: cracks, lack of fusion, lack of penetration. ·Abnormal shape and size: internal

structural deformation, thickness changes, assembly errors (such as missing or misplaced parts). ·Density difference:

Identify foreign objects of different materials or densities.

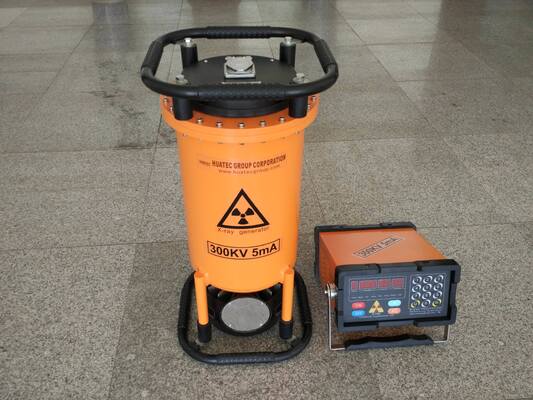

X-ray inspection equipment for welds/castings 0

X-ray inspection equipment for welds/castings 1
