HMLF-2020 Tank Bottom Plate Magnetic Leakage Scanner

The HMLF-2020 tank bottom corrosion magnetic flux leakage scanner is one of the world's most advanced tank bottom corrosion detection systems, integrating multiple technologies. It is primarily used for magnetic flux leakage detection of tank bottom corrosion in the petroleum and chemical industries. The system features 192 MLF Hall coil probes and 64 LMA Hall probes, enabling it to detect corrosion defects in the tank bottom and determine which surface (upper or lower) the defect is located on. Combining these two detection results greatly aids in analyzing the causes of corrosion, corrosion prevention, and risk assessment.

• The equipment adopts a split design, and the main unit and magnet parts can be separated, making disassembly simple and transportation convenient;
• 256 pcs of sensors;
• Scan width 300mm;
• Detection speed: 500 mm;
• It can distinguish between defects on the upper and lower surfaces;
• Equipped with forward-facing high and low beam headlights;
• It features defect location illumination and a laser indicator line for the defect location;
• Features a flight flashing light indicating the device's placement location;
• It features dual laser indicator lines for the equipment's forward trajectory;
• It has a mobile phone charging port;
• It has tablet charging function;
• Optional 54Ah high-capacity lithium battery, providing more than 8 hours of battery life;
• A 12-inch rugged touchscreen computer that is lightweight and easy to carry;
• Real-time data acquisition and analysis;
• The German-made precision mechanical encoder has a length error of 3mm.
• The motor is imported directly from Germany, ensuring smooth operation and reliable quality.

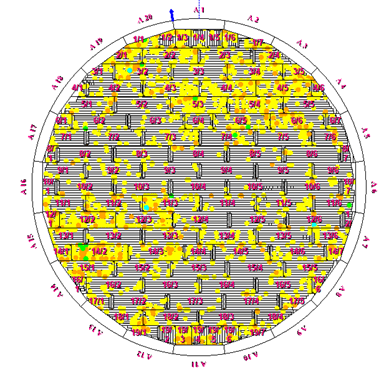

• systems can automatically draw CAD graphics of the entire tank bottom plate, locate corroded areas, and use different colors to indicate the degree of corrosion.
• thickness measurement, vacuum chamber and magnetic particle testing can be added to the graphics of the tank bottom plate, and comprehensively displayed in the report to generate an inspection report of the entire tank bottom plate.
• It has a comparison and overlay function, which can compare the results detected this time with the previous ones to determine the changes in defects.
• It features a patching design and statistical functions, providing strong support for tank maintenance personnel.
• The equipment's hydraulic rods allow inspectors to easily lift the magnetic bridge off the base plate.

• An optional magnet removal and storage dock is available to prevent magnets from adhering to ferromagnetic items, making handling and transportation easier.
• The optional docking station comes with four heavy-duty rubber wheels, allowing it to be pulled along, reducing labor intensity;
• An optional main unit cart can be installed, which can push the disassembled main unit to move around without the need for two people to carry it.
• An optional anti-collision switch can be installed to prevent collisions with obstacles in front due to improper control;
• Optional configuration with adjustable single viewing angle for tablet computers;
• Optional configuration includes adjustable computer-controlled and rotating 2D viewing angle adjustment;
• Optional straight handlebar operation control;
• Optional motorcycle handlebar control;
• Wired operation control can be added;
• Wireless control functionality can be added;
• Optional feature: brake function.

• Automated CAD Detection and Drawing
• patch design function
• Function to generate test reports
• Defect shape and size analysis
• Defects can be detected by visual inspection, ultrasound, vacuum chamber, and magnetic particle testing.
• List the number and location of defects for each board directly.

1. Detachable main unit: 1 unit
2. 12-inch rugged touchscreen tablet: 1 unit
3. Testing and analysis software: 1 set
4. Graphical report software: 1 set
5. Battery charger and charger: 1 set
6. Computer mounting bracket: 1 set
7. Computer mounting bolts: 2pcs
8. One set of comparison test plates: one each of 6mm, 8mm, 10mm and 12mm.
9. Transport boxes: 3 pcs
