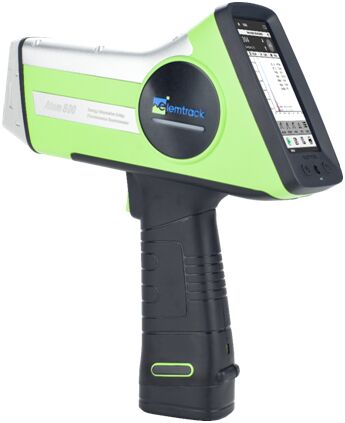

Handheld X-ray Fluorescence Spectrometer HXRF-145AT Product Technical Specification

Large Image : Handheld X-ray Fluorescence Spectrometer HXRF-145AT Product Technical Specification

Product Details:

Place of Origin:	China
Brand Name:	HUATEC
Model Number:	HXRF-145AT

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS

Contact Now

Handheld X-ray Fluorescence Spectrometer HXRF-145AT Product Technical Specification

Description

Usage Environment:

Temperature: -10°C~50°C; Humidity: 0-95% (20°C); Altitude: Less Than 5000m

Size And Weight:

Size:275mm×245mm ×82mm; Weight（Including Battery）:1.5Kg

Analysis Object:

Solid, Powder, Liquid

Analysis Element Range:

From Mg To U，Detection Content Range：0.1ppm To 99.9% ,Depending On The Type Of Object Being Tested, There Are Differences

Highlight:

Handheld XRF spectrometer HXRF-145AT

Portable X-ray fluorescence analyzer

Non-destructive testing equipment with warranty

Handheld X-ray Fluorescence Spectrometer

HXRF-145AT Product Technical Specification

1. Main application areas of the product

1.1 Manufacturing industry

Composition analysis of alloy materials
Reliability Identification of Alloy Materials (PMI)
Analysis of precious metals (gold, silver, platinum, palladium, rhodium, iridium)
Measurement of Metal Coating Thickness
RoHS compliance testing

1.2 Mining

Exploration of mineral veins
Analysis of ore grade
Analysis of Rare Earth Composition
Soil heavy metal detection

1.3 Recycling of renewable resources

Catalyst precious metal detection
Rapid classification of metals
Valuationof Renewable Resource Trading

1.4 Environment protection

Soil heavy metal detection
Bottom sediment and sediment detection
Heavy metal detection in water

2. Main technical specifications and parameters

Usage environment	Temperature: -10°C~50°C; Humidity: 0-95% (20°C); Altitude: less than 5000m
Size and weight	Size:275mm×245mm ×82mm; Weight(Including battery):1.5Kg
Analysis object	Solid, powder, liquid
Analysis Element Range	From Mg to U,Detection content range:0.1ppm to 99.9% ,Depending on the type of object being tested, there are differences
Detector	Peltier effect cooled Fast-SDD detector,Resolution≤126eV
X-ray source	Ag targets, tube voltage: 6~50kV, tube current :0~200μA
Microcomputer system	Industrial grade 4-core 1.8GHz processor; 2GB RAM, 40GB data storage, capable of storing approximately 400000 spectral data; Built-in 4.5 inch high-definition backlight touch integrated color display screen
Operating system	Industrial grade Linux
USB interface	Two USB ports, capable of connecting to U disk and PC
Wireless interface	Built in WiFi and BT, can connect to NET or PC, Android phone, or Bluetooth printer
Remote control	Equipped with WinGUI software and Android APP, it can be connected to a computer or phone for data synchronization and sharing with instruments
Sample camera	Microcamera,Sample photos can be taken
Collimation, filtering, and calibration	2.6mm collimator, capable of detecting both large and small samples, 8-channel filter with a wider detection range, built-in calibration plate, program controlled automatic calibration, no need for external standard plates
Pressure compensation	Built-in barometer and automatic pressure compensation correction
Analysis software	NDT element analysis software can be configured with multiple analysis modes according to user needs: alloy analysis, ore analysis, catalyst detection, precious metal analysis, etc. Users can use their own samples to establish their own calibration curves. The software has a built-in alloy grade library of more than 500 types, and users can customize report content. The test results can be automatically displayed as ppm or%
Operating language	English, customizable for multiple languages
Radiation Safety	Equipped with password protection function,The head is equipped with a sensor that can automatically identify the sample, and X-ray excitation is automatically prohibited during aerial testing; Multi angle X-ray status warning; Work interface X-ray radiation <0.15 Μ Sv/h
Battery	6600mAh lithium battery with charged capacity display; The working time of a single battery is about 8 hours, hot swapping function, allowing for direct battery replacement without shutting down the machine; During operation, the battery level can be displayed synchronously on the handle and screen
Transportation Safety	Comply with ISTA 3A packaging and transportation drop, vibration, and impact test standards,UN38.3
Environmental adaptability	Comply with GB/T2423.1 and GB/T2423.2,IP54,CE

Package an attachment

packaging:Instrument specific protective box, foam buffer substrate

Product accessories:

Standard Accessories
Accessories	Description	Quantity
lithium battery	7.2V,6600mAh,with electric charge display,Hot swappable	1
Charging adapter	14V/4A	1
Charger	Can charge 2 batteries simultaneously	1
USB cable	Mini USB 1.5m	1
USB flash drive	32GB	1
Protective film	Product specific	10
Wristband		1

Optional Accessories
Accessories	Description	Quantity
Folding bracket	Aluminum alloy, foldable	1
Radiation protection cover	Used in conjunction with the bracket	1
Sample cup	Used for powder or liquid samples	1

Product after-sales service

The instrument comes with a 12-month free warranty (excluding human damage factors)

Provide lifelong product maintenance services

Lifetime free software upgrades
