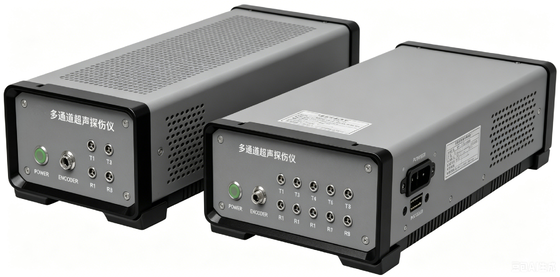

HFD-UT Series Multi Channel Ultrasonic Flaw Detector Core Module Network Communication Secondary Development Equipment
The HFD-UT2C/UT4C/UT8C/1616C/UT40C series is our new multi-channel ultrasonic data acquisition and secondary development platform. It integrates ultrasonic high-voltage transmission, echo signal reception, amplification, AD acquisition and processing functions. Besides it provides the secondary developments for user to develop new software--The processing of the data logged by the HFD-UT2C~UT40C enables users to customize functions and interfaces, and then integrate them into the system to form a variety of ultrasonic application systems.

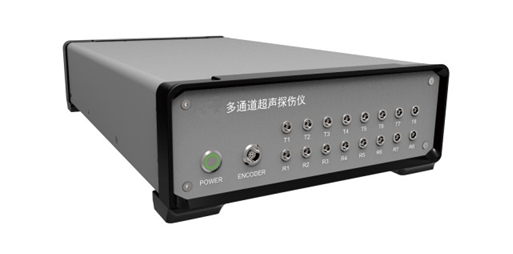

HFD-UT8C means that the instrument has 8 UT channels and channels are blockable.
*Note: If more channels are needed, please take the HFD-UT40C into consideration, which supports 40 UT channels.
Specifications:
|
Emitter
|
|
PRF
|
25～10KHz
|
|
Voltage
|
Negative square wave, -25～-300V, 25V Stepping
|
|
Pulse width
|
30～1000ns,5ns Stepping
|
|
Trigger
|
Internal/ external/ Encoder
|
|
Receiver
|
|
Horizontal Linearity Error
|
≤0.4%
|
|
Vertical Linearity Error
|
≤3%
|
|
Surplus Sensitivity
|
≥56dB when using 2.5P20 probe to detect 200mm block with Φ2 flat bottom hole.
|
|
Damping
|
400, 80
|
|
Sampling Rate
|
100M
|
|
Working Frequency
|
0.5～15MHz
|
|
Gain
|
0.0～110.0dB
|
|
Filter
|
Wide-band and narrow-band
|
|
Rectification
|
Positive, Negative, Full-play, RF, Spectrum
|
|
Crosstalk between channels
|
>60dB
|
|
Maximum input signal
|
14VPP
|
|
Coverage
|
0.0～10000mm (Steel Longitudinal wave), adjustable in continuity, min step 0.1mm
|
|
Display delay
|
0～999.9μs
|
|
Display shift
|
-7.5～3000μs
|
|
Signal Processing
|
|
Gate
|
A,B
|
|
Starting point gate
|
Full scope
|
|
Gate Width
|
Starting point to full range
|
|
Gate Height
|
5～95%
|
|
Test Mode
|
Frontier, Peak
|
|
Data Display
|
Reading in Gate: Range & Sound Path
|
|
Measuring Resolution
|
0.1mm
|
|
System/other
|
|
Power Consumption
|
15W,varies according to Configuration
|
|
Data Transmission
|
1000M Ethernet
|
|
Angle
|
L-Scan -75°～+75°, stepping 0.1, 1, 10 adjustable; S-Scan -75°～+75°, step automatic optimization
|
|
Size
|
188×238×403; 100×200×300
|
|
Port
|
Q5
|
|
Encoder Port
|
2 Incrementing encoder
|
|
USB Port
|
2
|
|
I/O Port
|
Round type
|
|
Net Port
|
100M/1000M Ethernet
|
|
Debug Port
|
COM 1
|
Structural principle:
The HFD-UT8C is an independent module, which is connected to the monitoring host through the network cable. The software running on the monitoring host sends instructions to the HFD-UT8C through the network interface, and receives the data returned from the HFD-UT8C, as shown in the figure below.
Features:
Secondary Developments
l Provide a full set of client sample programs DEMO source code. The DEMO code already has basic multi-channel ultrasonic functions. Users can refer to the DEMO code for secondary development or add functions directly to the DEMO code for development.
l Thoughtfully designed secondary programming access enables an intuitive and simple programming, supporting manual debugging. Before programming, user can send instruments to the HFD-UT2C~UT40C manually to test the effect of the modification of parameters
Excellent Physical Features
l Internal integrated ultrasonic excitation circuit, negative square wave form, voltage adjustable from - 25V to - 300V, adjustable pulse width from 30ns to 1000ns, maximum matching with different types of transmitting elements.
l Internal integrated with most of the signal processing and detection functions required by ultrasonic flaw detection instrument, such as A-wave compression, gate detection, sound path measurement, etc., you can quickly set up a standard ultrasonic flaw detection system.
l Offers raw data for user-processing by sending raw AD acquisition data to clients
